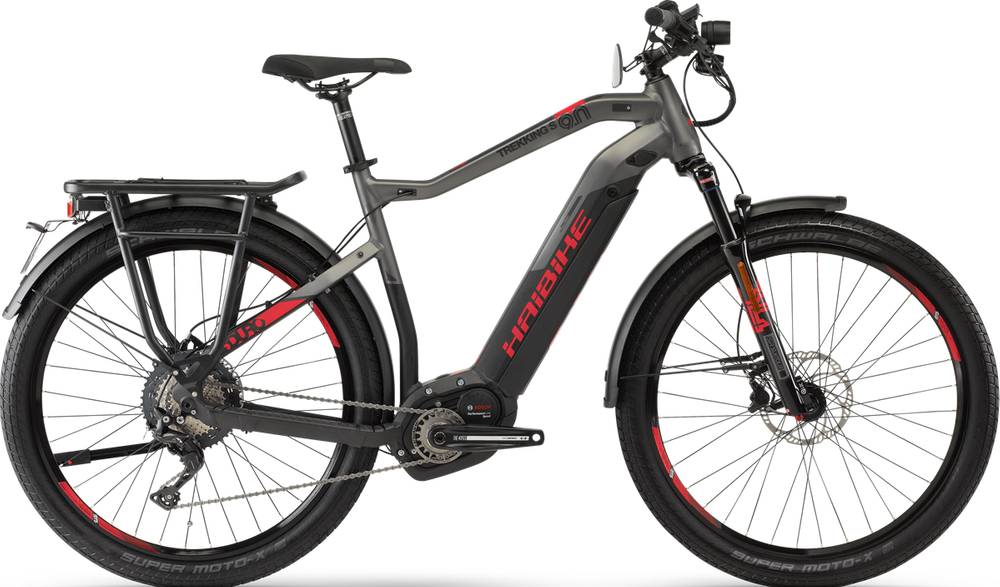

Haibike SDURO Trekking S 9.0 2020
2020 E-bike
Estimate price |
4,587$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 80mm -
Fork SunTour MOBIE
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, SDURO Cross/Trekking, Aluminium 6061, Thru-axle M12 (1.75) x 142mm, Disc brake Post Mount
Suspension Fork
SR Suntour, Mobie 45, Lockout, Air, Travel= 80 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore XT M8000
Shift Levers
Shimano, SLX M7000, Rapidfire, 11 speed
Cassette
Shimano, SLX M7000, 11 - 46 teeth
Crank
Haibike, Stainless steel, 20 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e11S
Pedals
Wellgo, C29
Wheels
Rims
Rodi, Tryp 35, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.40"
Brakes
Brake Levers
Magura, MT4
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 12°
Handlebar
Haibike Components, TheBar +, 720 mm
Grips
XLC, Sport bo2 lock on grips
Headset
Feimin, A-Head Tapered, Aluminium, cartridge bearing
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Speed, 350 W, 60 Nm, 45 km/h
Battery
Bosch, PowerTube, 500 Wh
Remote
Bosch, Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.657 mm | 1.63 mm | 1.604 mm | 1.578 mm | 1.555 mm |
| Front Center | 669 mm | 685 mm | 701 mm | 716 mm | 732 mm |
| Rake | 44 mm | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 86 mm | 86 mm | 85 mm | 86 mm | 86 mm |
| Stack | 638 mm | 647 mm | 656 mm | 666 mm | 675 mm |
| Reach | 385 mm | 397 mm | 409 mm | 422 mm | 434 mm |
| Top Tube Length | 580 mm | 595 mm | 610 mm | 625 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1122 mm | 1138 mm | 1154 mm | 1170 mm | 1186 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
SDURO Trekking S 9.0 completes the Haibike E Sduro model. Haibike released 62 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Haibike SDURO HardSeven 1.0 2020 is the cheapest e-bike model and costs 2123$. Haibike SDURO FullNine 8.0 2020 is the most expensive one and costs 5839$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Haibike SDURO Trekking S 9.0 price was 4246$. If we compare this with the average Hybrid e-bike cost we notice that the price is 71.21% more expensive.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 26.1 kg (57.54 lbs), Haibike e-bike is a bit heavier than average. In conclusion, the average Hybrid e-bike weighs 9.71% less than SDURO Trekking S 9.0.
Overview of components
Fork
This e-bike has the SunTour MOBIE fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
As for the wheels, Haibike SDURO Trekking S 9.0 2020, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike SDURO Trekking S 9.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
