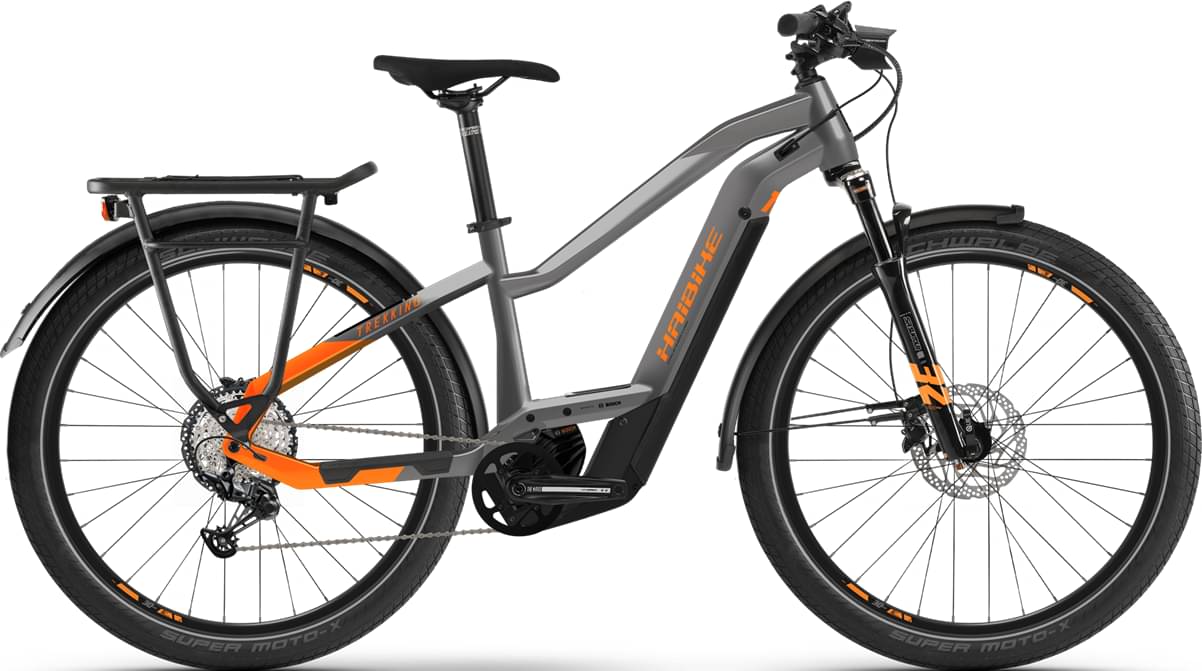

Haibike Trekking 10 MID 2021
2021 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen4 i625, Aluminium
Suspension Fork
SR Suntour, Mobie E45 LOR, Lockout, Air, Travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, SLX M7100
Shift Levers
Shimano, Deore M6100, Trigger switch, 12 Speed
Cassette
Shimano, M6100, 10 - 51 teeth
Crank
Aluminium, 40 teeth
Bottom Bracket
Integrated in the motor
Chain
Shimano, CN-M6100
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, M6100, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 12.0 °
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Alloy Tapered, Aluminium, Cartridge
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX GEN4, 250W, 85 Nm, 25 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.696 mm | 1.665 mm | 1.638 mm | 1.612 mm |
| Front Center | 669 mm | 684 mm | 700 | 716 mm |
| Rake | 43 mm | 42 mm | 42 mm | 42 mm |
| Trail | 93 mm | 94 mm | 94 mm | 94 mm |
| Stack | 636 mm | 646 mm | 655 mm | 664 mm |
| Reach | 375 mm | 388 mm | 400 mm | 412 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1132 mm | 1148 mm | 1164 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Trekking 10 MID belongs to the Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. You can easily view all of the Haibike E Trekking e-bikes models from 2021, here.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the cheapest e-bike model and costs 2866$. Haibike Trekking S 10 MID 2021 is the most expensive one and costs 5308$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 4777$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Trekking 10 MID price is 92.62% higher.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Haibike Trekking 10 MID 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 10 MID has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
