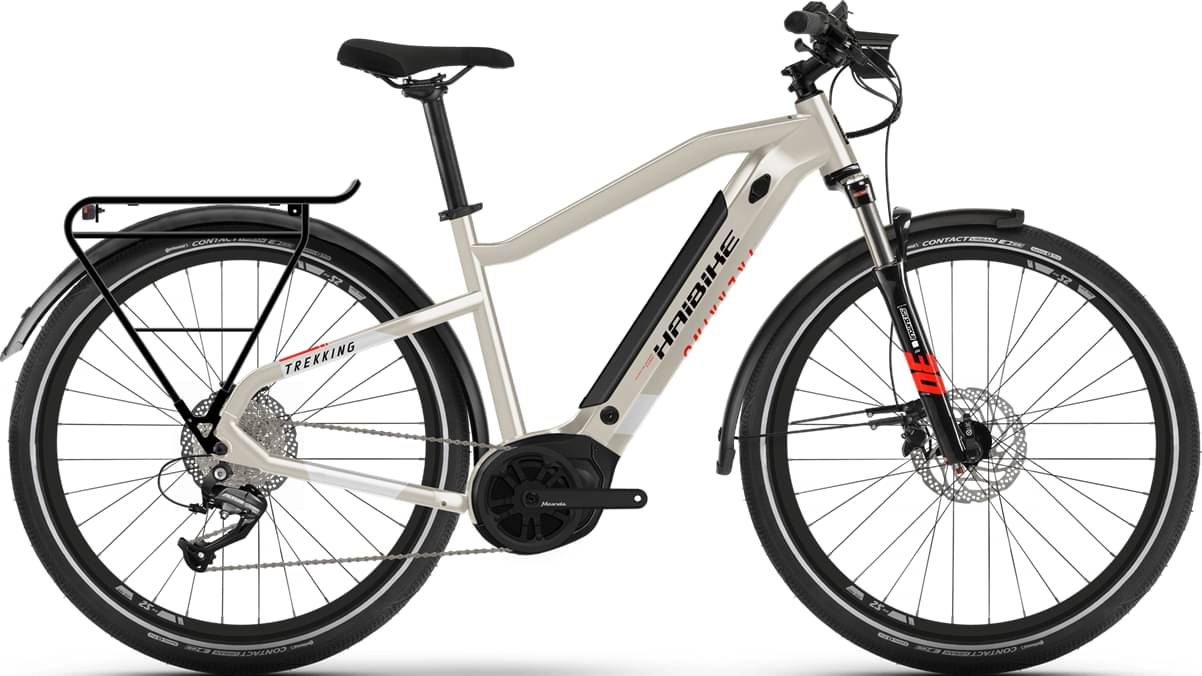

Haibike Trekking 4 HIGH 2021
2021 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Yamaha 60Nm mid-drive -
Battery InTube, 500 Wh -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Alivio M3100, Trigger switch
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
Brakes
Brakes
rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-TE System, 250 Wh, 60 Nm, 25 km/h
Battery
InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.54 mm | 1.48 mm | 1.43 mm | 1.42 mm |
| Front Center | 691 mm | 713 mm | 739 mm | 765 mm | 793 mm |
| Rake | 47 mm | 46 mm | 47 mm | 46 mm | 45 mm |
| Trail | 89 mm | 90 mm | 89 mm | 90 mm | 91 mm |
| Stack | 617 mm | 631 mm | 640 mm | 650 | 673 mm |
| Reach | 392 mm | 409 mm | 431 mm | 453 mm | 473 mm |
| Top Tube Length | 582 mm | 603 mm | 628 mm | 653 mm | 679 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm | 640 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 180 mm | 190 mm | 210 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1171 mm | 1193 mm | 1219 mm | 1245 mm | 1273 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
Trekking 4 HIGH is part of the Haibike E Trekking model. 68 e-bikes variations carry this model name so far. You can easily view all of the Haibike E Trekking e-bikes models from 2021, here.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, Haibike Trekking S 10 MID 2021, is the most expensive and costs 5308$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. In conclusion, this e-bike price is 28.39% higher than the price of the average Hybrid e-bike.
Trekking 4 HIGH components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the Trekking 4 HIGH e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trekking 4 HIGH comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
