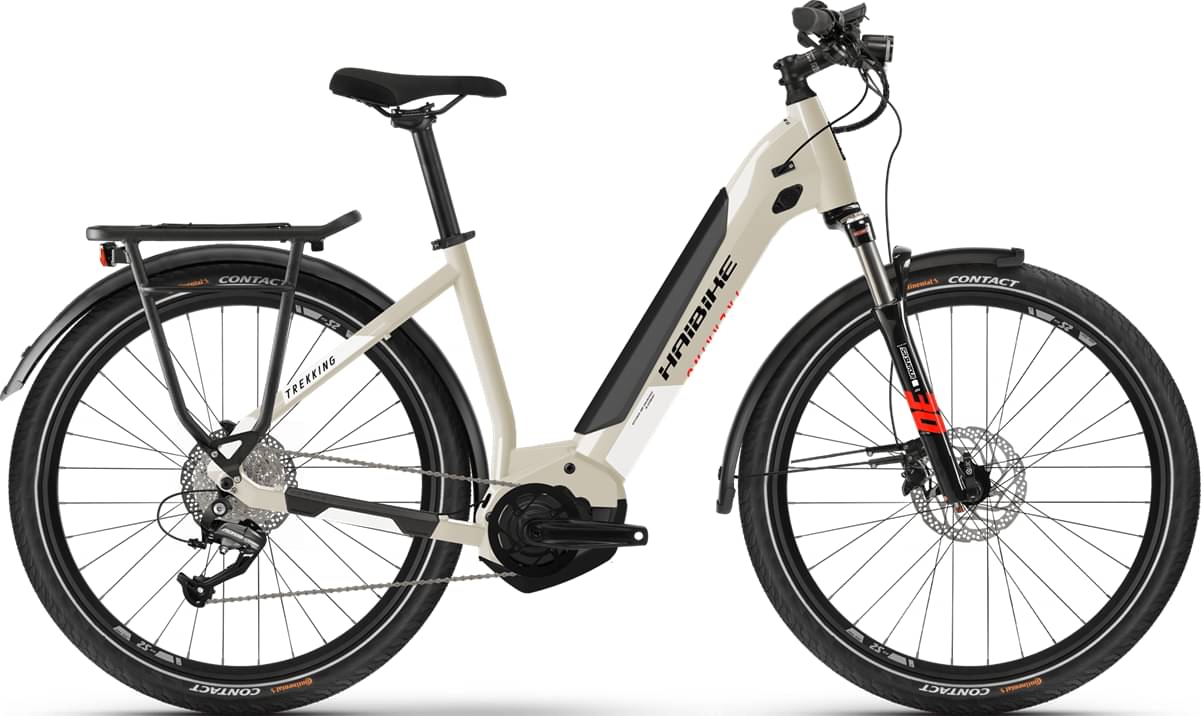

Haibike Trekking 4 LOW 2021
2021 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Yamaha 60Nm mid-drive -
Battery InTube, 500 Wh -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Alivio M3100, Trigger switch
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
Spokes
Sapim, Leader
Tires
Continental, Contact Urban, 55-584, 27.5 x 2.2 inch
Brakes
Brakes
rim
Brake Levers
Alhonga, HT474, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-TE System, 250 Wh, 60 Nm, 25 km/h
Battery
InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.62 mm | 1.54 mm |
| Front Center | 657 mm | 686 mm | 717 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 72 mm | 73 mm | 73 mm |
| Stack | 652 mm | 661 mm | 670 mm |
| Reach | 380 mm | 407 mm | 435 mm |
| Top Tube Length | 582 mm | 612 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1112 mm | 1142 mm | 1173 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Trekking 4 LOW is part of the Haibike E Trekking model. Haibike released 68 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most economical model, with a starting price of 2866$. Haibike Trekking S 10 MID 2021 on the other hand costs 5308$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2021 and its price was 3184$. Doing a quick comparison, we notice that Trekking 4 LOW price is 28.39% higher than the average cost of a Hybrid e-bike.
Overview of components
Fork
The Trekking 4 LOW comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
When it comes to wheels, the Trekking 4 LOW e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike Trekking 4 LOW is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
