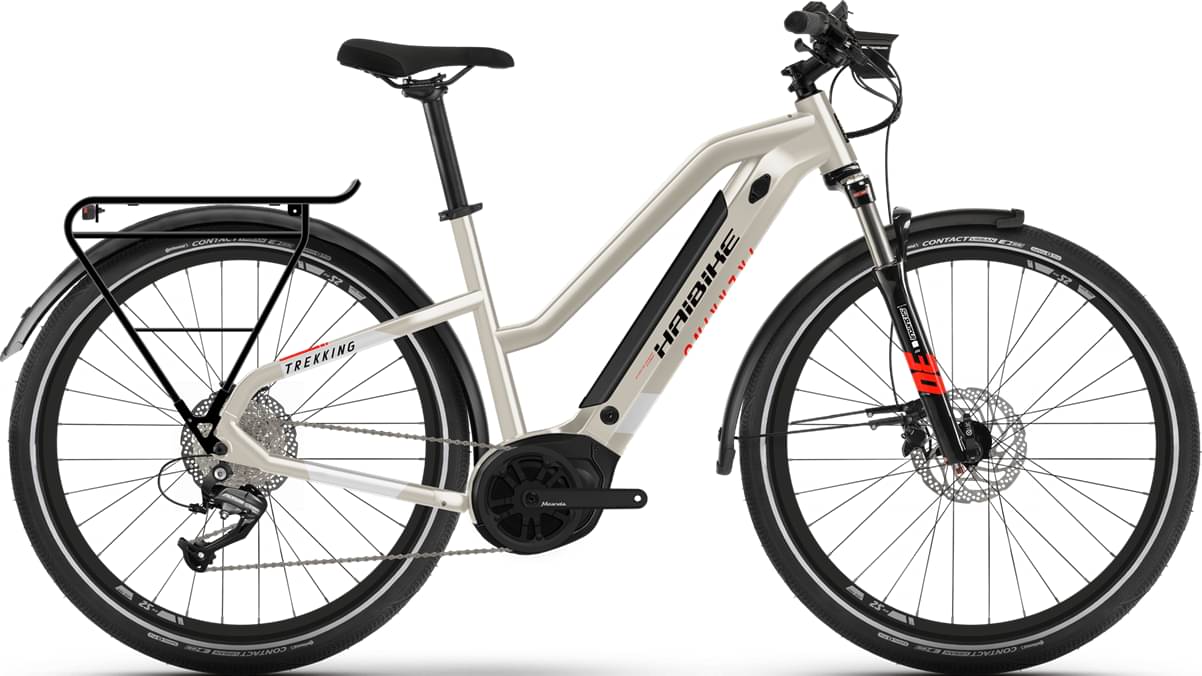

Haibike Trekking 4 Lowstandover 2021
2021 E-bike
Estimate price |
3,096$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha, InTube, 500 Wh -
Drivetrain 1 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Altus M2000
Shift Levers
Shimano, Alivio M3100, Trigger switch, 9 Speed
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Contact Urban, 55-584, 27.5" x 2.2"
Brakes
Brakes
rim
Brake Levers
Tektro, T275, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Cane Creek, Viscoset, Aluminium
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-TE System, 250W, 60 Nm, 25 km/h
Battery
Yamaha, InTube, 500 Wh
Remote
Yamaha, Side Switch, 1.7" LCD, 7 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.58 mm | 1.58 mm | 1.56 mm |
| Front Center | 684 mm | 699 mm | 720 mm | 743 mm |
| Rake | 47 mm | 46 mm | 46 mm | 47 mm |
| Trail | 89 mm | 90 mm | 90 mm | 89 mm |
| Stack | 628 mm | 642 mm | 661 mm | 679 mm |
| Reach | 396 mm | 406 mm | 419 mm | 434 mm |
| Top Tube Length | 586 mm | 601 mm | 619 mm | 639 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm | 496 mm |
| Wheelbase | 1175 mm | 1190 mm | 1211 mm | 1234 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Trekking 4 Lowstandover belongs to the Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, Haibike Trekking S 10 MID 2021, is the most expensive and costs 5308$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 2866$. If we compare this with the average Hybrid e-bike cost we notice that the price is 15.56% more expensive.
Trekking 4 Lowstandover components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Trekking 4 Lowstandover model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 4 Lowstandover has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
