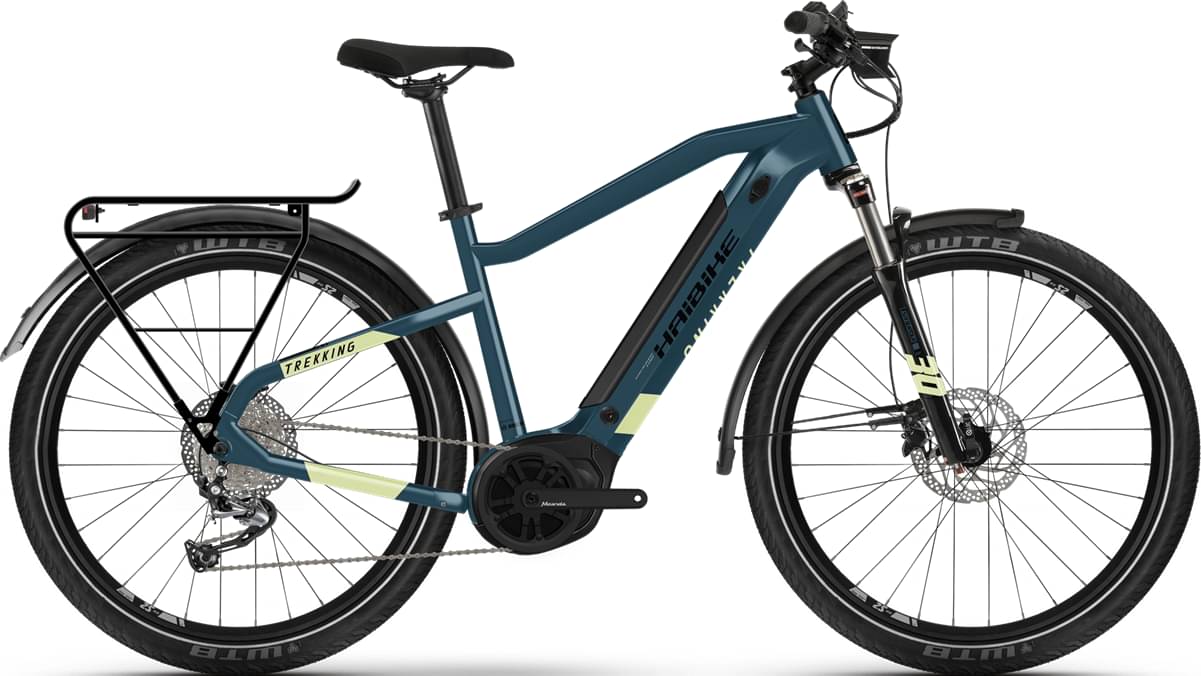

Haibike Trekking 5 HIGH 2021
2021 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 65mm -
Fork Suntour XCM HLO
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen3 Intube, Aluminium 6061
Suspension Fork
SR Suntour, XCM ATB HLO, Lockout, Steel spring, Travel= 65 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Alivio M3100
Shift Levers
Shimano, Alivio M3100, Trigger switch, 9 Speed
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
WTB, Groov-E, 61-584, 27.5" x 2.4"
Brakes
Brakes
rim
Brake Levers
Tektro, T275, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Line, 250W, 65 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Remote
Bosch, Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.54 mm | 1.48 mm | 1.43 mm | 1.41 mm |
| Front Center | 691 mm | 713 mm | 739 mm | 765 mm | 793 mm |
| Rake | 47 mm | 46 mm | 47 mm | 46 mm | 47 mm |
| Trail | 89 mm | 90 mm | 89 mm | 90 mm | 89 mm |
| Stack | 617 mm | 631 mm | 640 mm | 650 | 668 mm |
| Reach | 392 mm | 409 mm | 431 mm | 453 mm | 473 mm |
| Top Tube Length | 582 mm | 603 mm | 628 mm | 653 mm | 679 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm | 640 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 180 mm | 190 mm | 210 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1171 mm | 1193 mm | 1219 mm | 1245 mm | 1273 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
Trekking 5 HIGH belongs to the Haibike E Trekking model. There are 68 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, Haibike Trekking S 10 MID 2021, is the most expensive and costs 5308$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3184$. If we compare this with the average Hybrid e-bike cost we notice that the price is 28.39% more expensive.
Trekking 5 HIGH components
Fork
The Suntour XCM HLO is included from the factory. It has a travel distance of 65mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Trekking 5 HIGH are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
