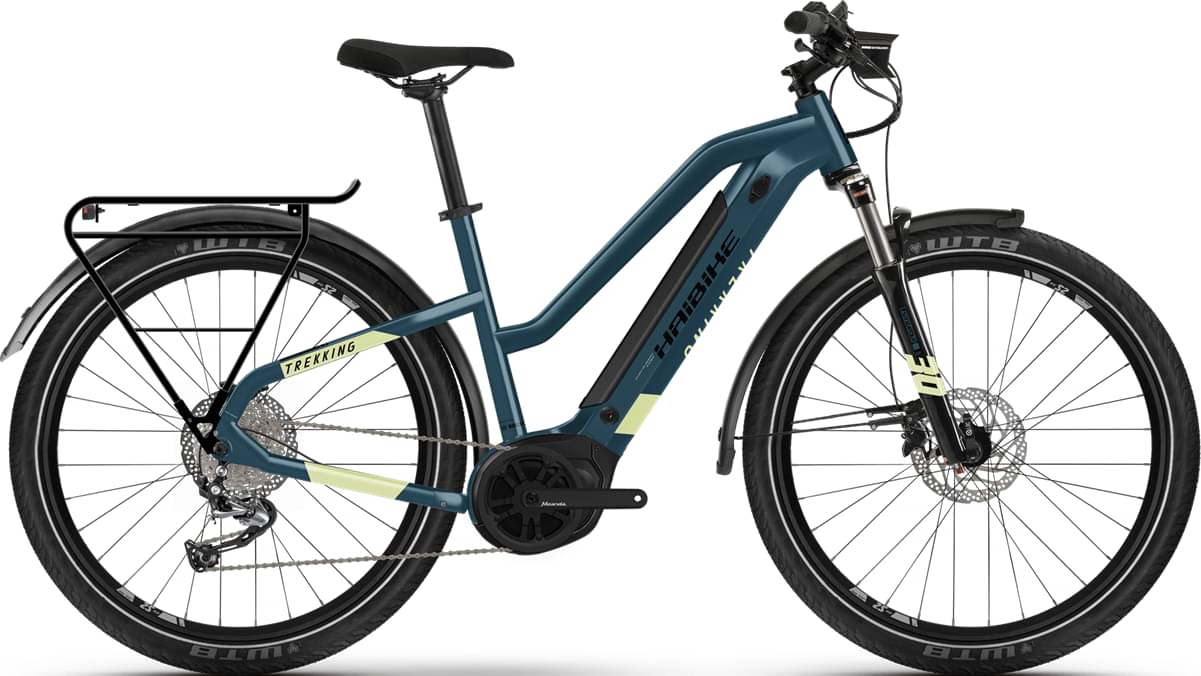

Haibike Trekking 5 MID 2021
2021 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 65mm -
Fork Suntour XCM HLO
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch, PowerTube, 500 Wh -
Drivetrain 1 × 9 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen3 Intube, Aluminium 6061
Suspension Fork
SR Suntour, XCM ATB HLO, Lockout, Steel spring, Travel= 65 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Alivio M3100
Shift Levers
Shimano, Alivio M3100, Trigger switch, 9 Speed
Cassette
Shimano, HG200, 11 - 36 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e9S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
WTB, Groov-E, 61-584, 27.5" x 2.4"
Brakes
Brakes
rim
Brake Levers
Tektro, T275, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Line, 250W, 65 Nm, 25 km/h
Battery
Bosch, PowerTube, 500 Wh
Remote
Bosch, Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.564 mm | 1.595 mm | 1.59 mm | 1.586 mm | 1.572 mm |
| Front Center | 679 mm | 684 mm | 699 mm | 720 mm | 743 mm |
| Rake | 47 mm | 47 mm | 46 mm | 46 mm | 47 mm |
| Trail | 89 mm | 89 mm | 90 mm | 90 mm | 89 mm |
| Stack | 610 mm | 622 mm | 636 mm | 655 mm | 673 mm |
| Reach | 390 mm | 390 mm | 400 mm | 413 mm | 428 mm |
| Top Tube Length | 577 mm | 580 mm | 595 mm | 613 mm | 633 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 142 mm | 155 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1164 mm | 1169 mm | 1184 mm | 1205 mm | 1228 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Trekking 5 MID completes the Haibike E Trekking model. There are 68 e-bikes that carry this model name. You can easily view all of the Haibike E Trekking e-bikes models from 2021, here.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the cheapest e-bike model and costs 2866$. Haibike Trekking S 10 MID 2021 is the most expensive one and costs 5308$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. Comparing this to the average Hybrid e-bike price, we see that the price is 28.39% more expensive.
Overview of components
Fork
The Suntour XCM HLO is included from the factory. It has a travel distance of 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Haibike Trekking 5 MID 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Trekking 5 MID has Rim brakes installed. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
