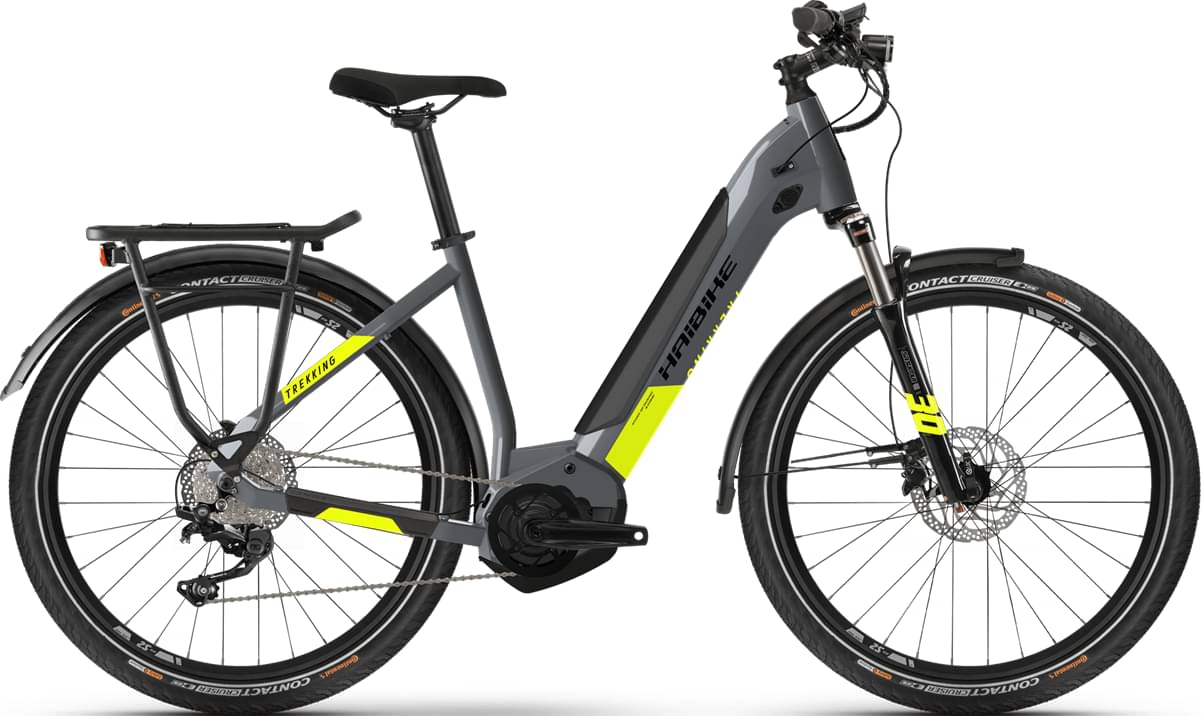

Haibike Trekking 6 LOW 2021
2021 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery InTube, 500 Wh -
Drivetrain 1 × 10 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
Suspension Fork
SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
Drivetrain
Rear Derailleur
Shimano, Deore M5120
Shift Levers
Shimano, Deore M4100, Trigger switch, 10 Speed
Cassette
Shimano, M4100, 11 - 46 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e10S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Contact Cruiser, 62-584, 27.5" x 2.4"
Brakes
Brakes
rim
Brake Levers
Tektro, T275, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Cane Creek, Viscoset, Aluminium
Seat
Saddle
XLC, Trekking
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
Battery
InTube, 500 Wh
Remote
Yamaha, Multi Switch, 2.8" TFT, 16 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.72 mm | 1.62 mm | 1.54 mm |
| Front Center | 657 mm | 686 mm | 717 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 72 mm | 73 mm | 73 mm |
| Stack | 652 mm | 661 mm | 670 mm |
| Reach | 380 mm | 407 mm | 435 mm |
| Top Tube Length | 582 mm | 612 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1112 mm | 1142 mm | 1173 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Trekking 6 LOW is a Haibike E Trekking model. There are 68 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the cheapest e-bike model and costs 2866$. Haibike Trekking S 10 MID 2021 is the most expensive one and costs 5308$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 3184$. In conclusion, this e-bike price is 28.39% higher than the price of the average Hybrid e-bike.
Trekking 6 LOW components
Fork
The Trekking 6 LOW comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the Trekking 6 LOW e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Haibike Trekking 6 LOW e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
