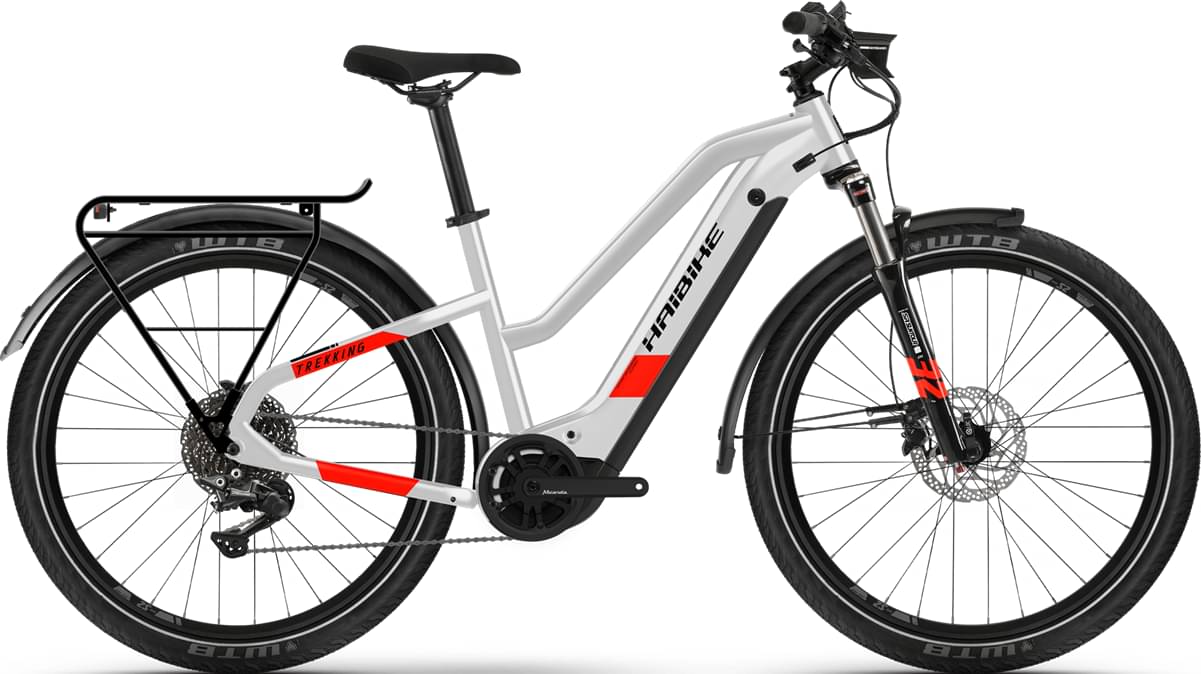

Haibike Trekking 7 Lowstandover 2021
2021 E-bike
Estimate price |
3,669$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery InTube, 630 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Yamaha i630, Aluminium 6061
Suspension Fork
SR Suntour, Mobie A32, Steel spring, Travel= 75 mm, Aluminium steerer tube 1 1/8", 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch, 11 Speed
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Steel, 38 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, e11S
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
WTB, Groov-E, 61-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT402, Aluminium
Cockpit
Stem
XLC, Alu, A-head
Handlebar
XLC, Topflat, 720 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Tapered, Ball bearing
Seat
Saddle
Selle Royal, Wave
Seatpost
XLC, Aluminium, Patent, 31.6 mm
Motor & Battery
Motor
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
Battery
InTube, 630 Wh
Remote
Yamaha, Multi Switch, 2.8" TFT, 16 functions
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.58 mm | 1.56 mm |
| Front Center | 704 mm | 712 mm | 723 mm | 746 mm |
| Rake | 54 mm | 54 mm | 54 mm | 54 mm |
| Trail | 81 mm | 81 mm | 81 mm | 81 mm |
| Stack | 628 mm | 642 mm | 661 mm | 679 mm |
| Reach | 413 mm | 416 mm | 419 mm | 434 mm |
| Top Tube Length | 581 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 155 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 496 mm | 496 mm | 496 mm | 496 mm |
| Wheelbase | 1192 mm | 1200 mm | 1211 mm | 1234 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Trekking 7 Lowstandover completes the Haibike E Trekking model. 68 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most economical model, with a starting price of 2866$. Haibike Trekking S 10 MID 2021 on the other hand costs 5308$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3397$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Trekking 7 Lowstandover price is 36.98% more expensive.
Overview of components
Fork
Haibike Trekking 7 Lowstandover 2021 e-bike is equipped with the Suntour MOBIE fork, and has 75mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Trekking 7 Lowstandover are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike Trekking 7 Lowstandover is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Trekking 7 Lowstandover comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
