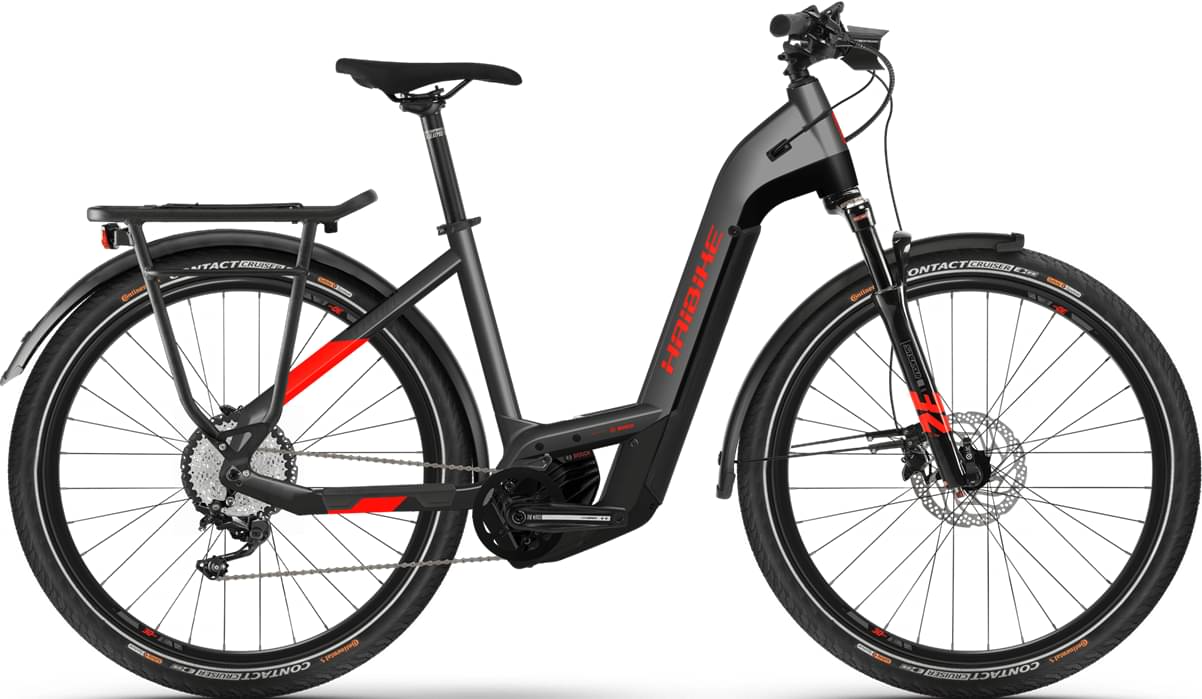

Haibike Trekking 9 LOW 2021
2021 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen4 i625, Aluminium
Suspension Fork
SR Suntour, Mobie 25 LOR, Air, Lockout, Travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch, 11 Speed
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Aluminium, 40 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, X11e
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Contact Cruiser, 62-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT402, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 12.0 °
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Alloy Tapered, Aluminium, Cartridge
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX GEN4, 250W, 85 Nm, 25 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.57 mm | 1.54 mm |
| Front Center | 686 mm | 701 mm | 717 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 72 mm | 73 mm | 73 mm |
| Stack | 652 mm | 661 mm | 670 mm |
| Reach | 410 mm | 422 mm | 435 mm |
| Top Tube Length | 612 mm | 627 mm | 642 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1142 mm | 1157 mm | 1173 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Trekking 9 LOW belongs to the Haibike E Trekking model. 68 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the cheapest e-bike model and costs 2866$. Haibike Trekking S 10 MID 2021 is the most expensive one and costs 5308$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Haibike Trekking 9 LOW price was 4458$. If we compare this with the average Hybrid e-bike cost we notice that the price is 79.76% higher.
Trekking 9 LOW components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Trekking 9 LOW has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Trekking 9 LOW 2021 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trekking 9 LOW has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Haibike Trekking 9 LOW e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
