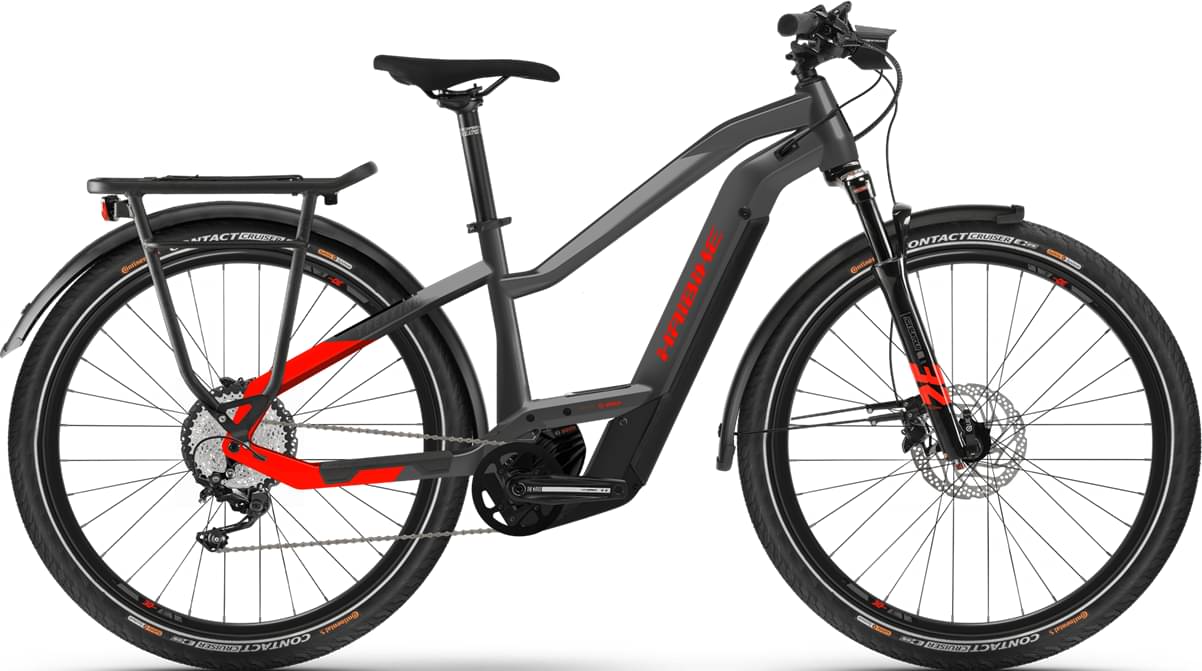

Haibike Trekking 9 MID 2021
2021 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen4 i625, Aluminium
Suspension Fork
SR Suntour, Mobie 25 LOR, Air, Lockout, Travel= 100 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 100mm thru-axle
Drivetrain
Rear Derailleur
Shimano, Deore M5100
Shift Levers
Shimano, Deore M5100, Trigger switch, 11 Speed
Cassette
Shimano, M5100, 11 - 51 teeth
Crank
Aluminium, 40 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, X11e
Pedals
VP, E461, Aluminium, with Reflector
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Continental, Contact Cruiser, 62-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano, MT402, Aluminium
Cockpit
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 12.0 °
Handlebar
Haibike Components, TheBar ++, 740 mm
Grips
XLC, Comfort bo3
Headset
Feimin, A-Head Alloy Tapered, Aluminium, Cartridge
Seat
Saddle
Haibike Components, TheSaddle
Seatpost
Haibike Components, TheSeatpost ++, Aluminium, Patent, 34.9 mm
Motor & Battery
Motor
Bosch, Performance CX GEN4, 250W, 85 Nm, 25 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.696 mm | 1.665 mm | 1.638 mm | 1.612 mm |
| Front Center | 669 mm | 684 mm | 700 | 716 mm |
| Rake | 43 mm | 42 mm | 42 mm | 42 mm |
| Trail | 93 mm | 94 mm | 94 mm | 94 mm |
| Stack | 636 mm | 646 mm | 655 mm | 664 mm |
| Reach | 375 mm | 388 mm | 400 mm | 412 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1132 mm | 1148 mm | 1164 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Trekking 9 MID is a Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most economical model, with a starting price of 2866$. Haibike Trekking S 10 MID 2021 on the other hand costs 5308$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 4458$. Comparing this to the average Hybrid e-bike price, we see that the price is 79.76% higher.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The Trekking 9 MID 2021 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Trekking 9 MID has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
