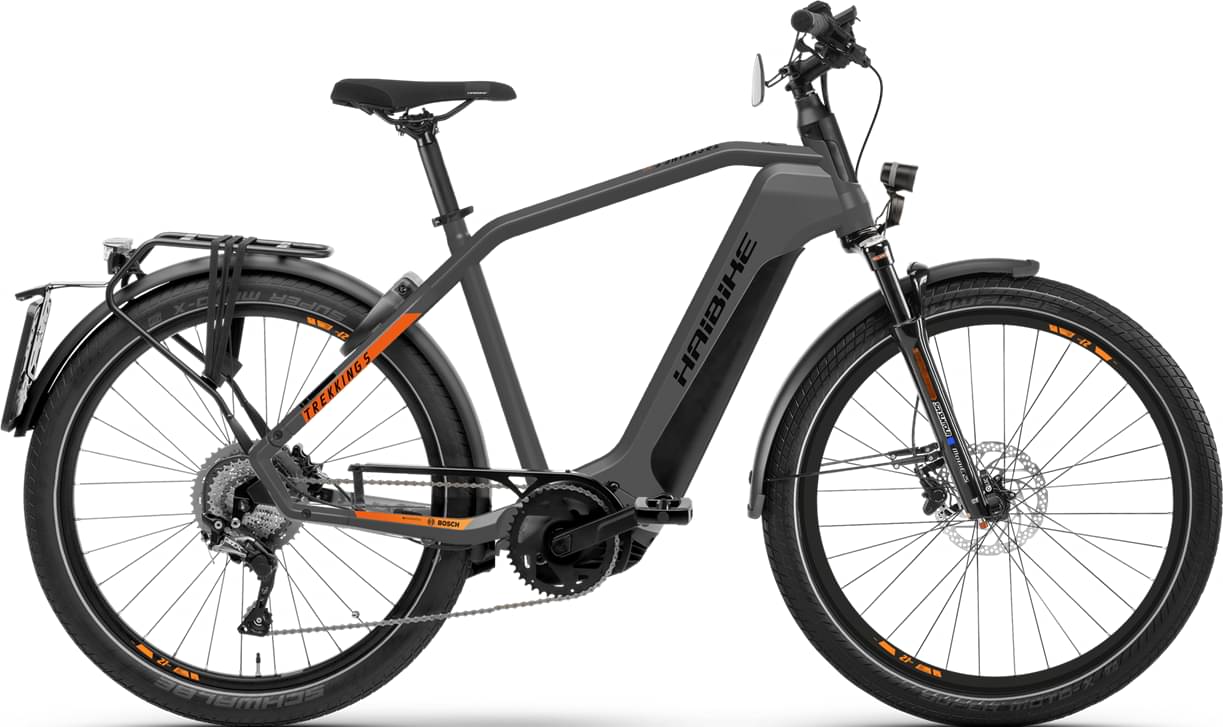

Haibike Trekking S 10 HIGH 2021
2021 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 65mm -
Fork Suntour MOBIE
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen4 i625, Aluminium
Suspension Fork
SR Suntour, Mobie 25 LOR, Steel spring, Travel= 65 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore XT M8000
Shift Levers
Shimano, SLX M7000, Rapidfire, 11 Speed
Cassette
Shimano, SLX M7000, 11 - 40 teeth
Crank
Aluminium, 44 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, X11T
Pedals
Marwi, SP-828,
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Tektro, HD-E715, Aluminium
Cockpit
Stem
Alu, A-head, Bar bore: 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Ergogriffe
Headset
Neco, MIX A-HEAD, Aluminium
Seat
Saddle
Selle Royal, EZONE MODERATE
Seatpost
Haibike Components, The seat post ++, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Speed GEN4, 250W, 85 Nm, 45 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Top Tube Length | 574 mm | 574 mm | 574 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 530 mm | 570 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 479 mm | 479 mm | 479 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Trekking S 10 HIGH is a Haibike E Trekking model. Haibike launched 68 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Haibike Trekking 4 Lowstep 2021 is the most affordable e-bike of this model and has a price of 2866$. On the other hand, Haibike Trekking S 10 MID 2021, is the most expensive and costs 5308$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5308$. Comparing this to the average Hybrid e-bike price, we see that the price is 114.03% higher.
Trekking S 10 HIGH components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 65mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
As for the wheels, Haibike Trekking S 10 HIGH 2021, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Trekking S 10 HIGH has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
