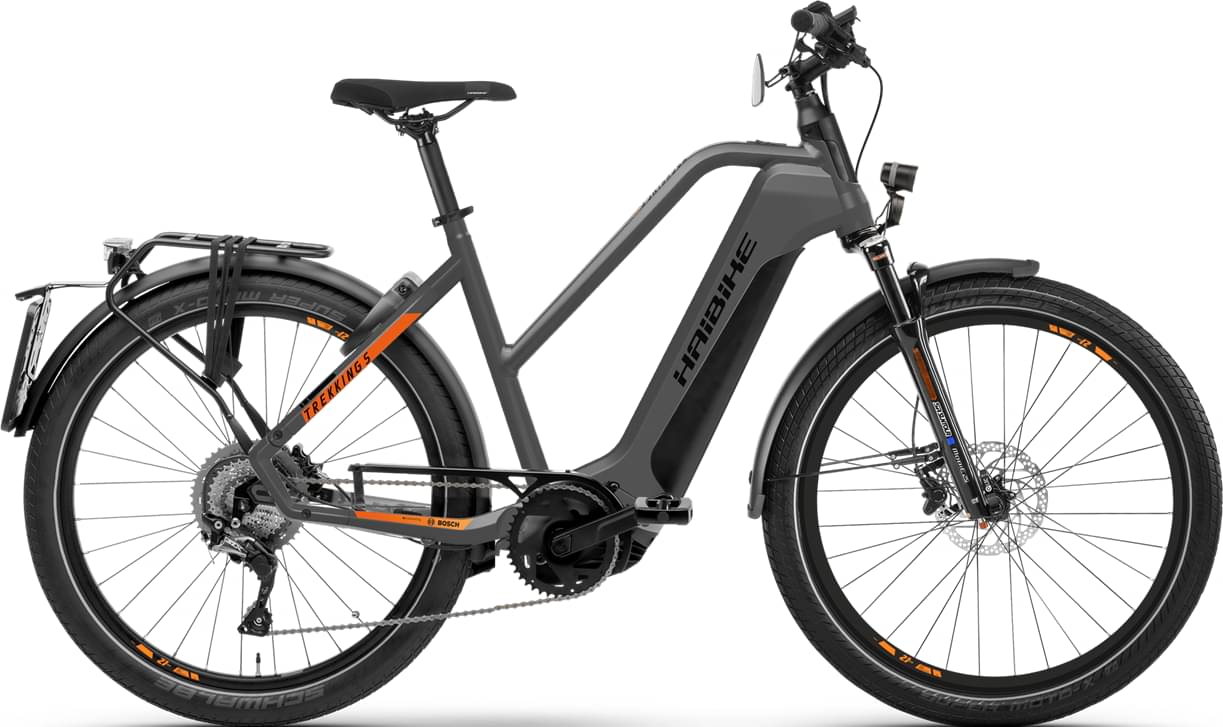

Haibike Trekking S 10 Lowstandover 2021
2021 E-bike
Estimate price |
5,504$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 65mm -
Fork Suntour MOBIE
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube, 625 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haibike, Trekking Gen4 i625, Aluminium
Suspension Fork
SR Suntour, Mobie 25 LOR, Steel spring, Travel= 65 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Drivetrain
Rear Derailleur
Shimano, Deore XT M8000
Shift Levers
Shimano, SLX M7000, Rapidfire, 11 Speed
Cassette
Shimano, SLX M7000, 11 - 40 teeth
Crank
Aluminium, 44 teeth
Bottom Bracket
Integrated in the motor
Chain
KMC, X11T
Pedals
Marwi, SP-828,
Wheels
Rims
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
Spokes
Sapim, Leader, Black
Tires
Schwalbe, Super Moto X, 62-584, 27.5" x 2.4"
Brakes
Brakes
hydraulicDisc
Brake Levers
Tektro, HD-E715, Aluminium
Cockpit
Stem
Alu, A-head, Bar bore: 31.8 mm
Handlebar
Ergobar, oversize, 640 mm
Grips
Ergogriffe
Headset
Neco, MIX A-HEAD, Aluminium
Seat
Saddle
Selle Royal, EZONE MODERATE
Seatpost
Haibike Components, The seat post ++, Patent, 31.6 mm
Motor & Battery
Motor
Bosch, Performance Speed GEN4, 250W, 85 Nm, 45 km/h
Battery
Bosch, PowerTube, 625 Wh
Remote
Bosch, Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Top Tube Length | 575 mm | 575 mm | 575 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 480 mm | 453 mm | 453 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
Trekking S 10 Lowstandover belongs to the Haibike E Trekking model. Haibike released 68 e-bikes variations of this model so far. You can easily view all of the Haibike E Trekking e-bikes models from 2021, here.
Model range prices
The most economical model, the Haibike Trekking 4 Lowstep 2021 has a starting price of 2866$. Haibike Trekking S 10 MID 2021 on the other hand is the most expensive at 5308$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Haibike released this model in 2021, its price was 5096$. If we compare this with the average Hybrid e-bike cost we notice that the price is 105.48% more expensive.
Trekking S 10 Lowstandover components
Fork
The Trekking S 10 Lowstandover comes factory-installed with the Suntour MOBIE fork. This has a travel range of 65mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
When leaving the production line, the Trekking S 10 Lowstandover model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Haibike Trekking S 10 Lowstandover is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
