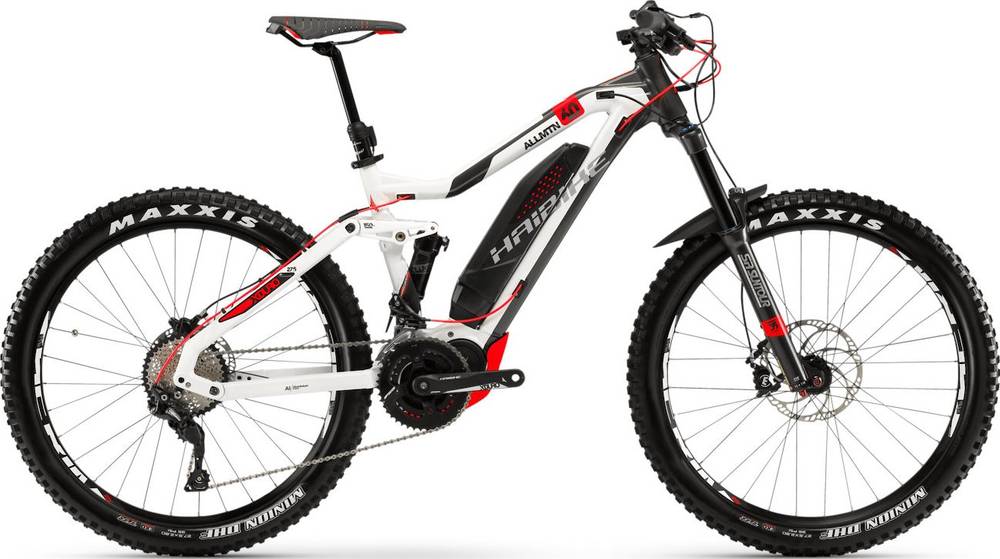

Haibike Xduro AllMtn 6.0 2018
2018 E-bike
Estimate price |
4,200$
Weight | 23.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork SunTour AION
-
Groupset Deore -
Suspension Full -
Motor Yamaha 500W 80Nm mid-drive -
Battery Yamaha Lithium Ion with Yamaha quick charger 4A -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Aion 35 RC, Boost
Rear Shock
RockShox Deluxe RT
Drivetrain
Rear Derailleur
Shimano Deore M6000, 20-speed
Front Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore M6000, 10-speed, Rapidfire
Cassette
SunRace CSMS2, 11-40 tooth, 10-speed
Crank
Haibike Xduro
Chain
KMC X10
Chain Guide
N/A
Pedals
Haibike Freeride, aluminium
Wheels
Front Hub
Front: Haibike Components TheHub ++ thru-axle, Boost 15mm x 110mm, Rear: Haibike Components TheHub ++ thru-axle, Boost 12mm x 148mm
Rear Hub
Front: Haibike Components TheHub ++ thru-axle, Boost 15mm x 110mm, Rear: Haibike Components TheHub ++ thru-axle, Boost 12mm x 148mm
Rims
Alexrims MD35, aluminium
Spokes
2.0mm, black
Tires
Maxxis Minion DHR II
Brakes
Brakes
Magura MT32 with 203mm front/180mm rear rotors
Brake Levers
Magura MT32, carbotecture
Cockpit
Stem
Haibike Components TheStem ++, 31.8mm clamp
Handlebar
Haibike Components TheBar ++, 780mm width
Grips
Haibike MTB Griffe
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
XLC AllMtn dropper
Motor & Battery
Motor
Yamaha PW-X System, 500W, 80Nm
Battery
Yamaha Lithium Ion with Yamaha quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 365 mm | 365 mm | 365 mm | 365 mm |
| Front Center | 728 mm | 749 mm | 770 mm | 791 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 110 mm |
| Stack | 603 mm | 608 mm | 613 mm | 617 mm |
| Reach | 398 mm | 417 mm | 436 mm | 454 mm |
| Top Tube Length | 563 mm | 583 mm | 603 mm | 623 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1176 mm | 1197 mm | 1218 mm | 1239 mm |
| Bottom Bracket Drop | -10 mm | -10 mm | -10 mm | -10 mm |
| Standover Height | 763 mm | 773 mm | 783 mm | 803 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Xduro AllMtn 6.0 completes the Haibike E Xduro model. Haibike launched 44 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Haibike Xduro AllMtn 6.0 2018 is the cheapest e-bike model and costs 4200$. Haibike Xduro Dwnhll 10.5 2018 is the most expensive one and costs 7000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2018 for 4200$. Comparing the average cost of an Enduro e-bike to this one, you will see that Xduro AllMtn 6.0 price is 13.93% lower.
Average weight for Enduro e-bikes
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Xduro AllMtn 6.0 weighs 23.1 kg (50.93 lbs) and is slightly lighter than the average. In other words, this model is 1.39% lighter than the average Enduro e-bike.
Xduro AllMtn 6.0 components
Fork
This e-bike has the SunTour AION fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Xduro AllMtn 6.0 has a rear shock with a travel of 150mm. The model RockShox Deluxe RT is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Xduro AllMtn 6.0 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Haibike Xduro AllMtn 6.0 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
