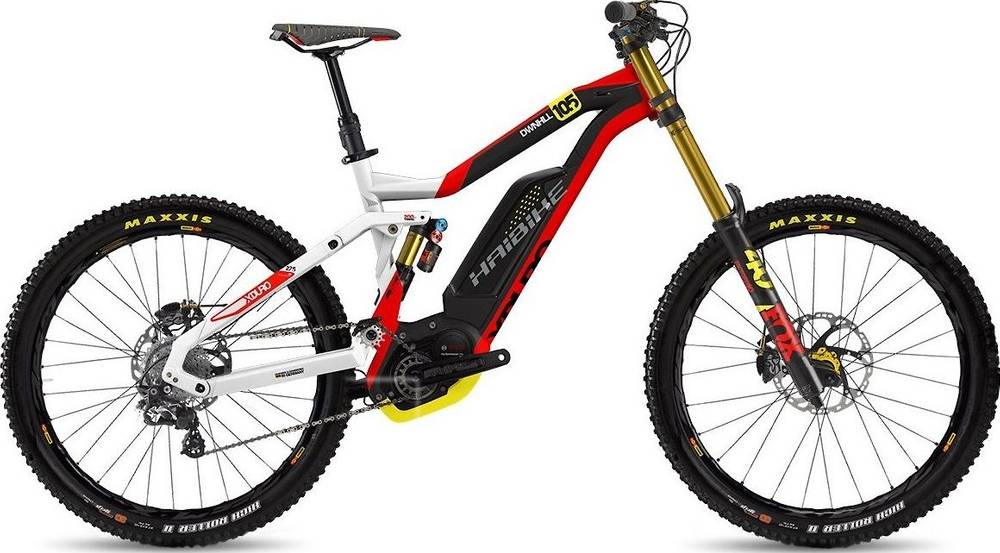

Haibike Xduro Dwnhll 10.5 2018
2018 E-bike
Estimate price |
7,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 200mm -
Fork Fox Factory Float 40
-
Groupset Saint, e*thirteen -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack with Bosch quick charger 4A -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 40 Float Factory, Boost, thru-axle
Rear Shock
FOX Float X2 Factory
Drivetrain
Rear Derailleur
Shimano Saint M820, 10-speed
Front Derailleur
N/A
Shift Levers
Shimano Saint M820, 10-speed, Rapidfire
Cassette
Shimano Deore XT M771, 11-36 teeth, 10-speed
Crank
e*thirteen
Chain
Shimano HG95
Chain Guide
N/A
Pedals
Haibike Freeride, aluminium
Wheels
Front Hub
Mavic Deemax DH
Rear Hub
Mavic Deemax DH
Rims
Mavic Deemax DH
Spokes
Mavic
Tires
Schwalbe Magic Mary, 65-584 foldable
Brakes
Brakes
Shimano Saint M820 with 203mm rotors
Brake Levers
Shimano Saint M820, aluminium
Cockpit
Stem
Thomson SM-E162, direct mount, 31.8mm clamp
Handlebar
Thomson Downhill, aluminium oversize, 780mm width
Grips
XLC Sport Lock-on
Headset
A-Head, cartridge, aluminium
Seat
Saddle
Selle Royal Verve
Seatpost
KS LEV-DX
Motor & Battery
Motor
Bosch Performance CX, 350W
Battery
Bosch PowerPack with Bosch quick charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.52 mm | 1.45 mm | 1.38 mm |
| Stack | 613 mm | 617 mm | 621 mm | 626 mm |
| Reach | 382 mm | 405 mm | 429 mm | 453 mm |
| Top Tube Length | 568 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 430 mm | 440 mm | 450 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1214 mm | 1240 mm | 1265 mm | 1291 mm |
| Standover Height | 783 mm | 783 mm | 783 mm | 783 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xduro Dwnhll 10.5 is part of the Haibike E Xduro model. Haibike released 44 e-bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Haibike Xduro AllMtn 6.0 2018 has a starting price of 4200$. Haibike Xduro Dwnhll 10.5 2018 on the other hand is the most expensive at 7000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2018 and its price was 7000$. Doing a quick comparison, we notice that Xduro Dwnhll 10.5 price is 46.29% higher than the average cost of an Enduro e-bike.
Xduro Dwnhll 10.5 components
Fork
This e-bike has the Fox Factory Float 40 fork installed. The fork’s travel is 200mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Xduro Dwnhll 10.5 has a rear shock with a travel of 200mm. The model FOX Float X2 Factory is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Xduro Dwnhll 10.5 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haibike Xduro Dwnhll 10.5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Haibike Xduro Dwnhll 10.5 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Haibike Xduro Dwnhll 10.5 comes with a dropper post. Therefore, climbing or descending will be a breeze.
