Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork SunTour XCR 34
-
Groupset Deore, Suntour -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shift R X6 Aluminum series dual suspended 4-Bar linkage | 27.5"x125mm travel | Tapered 1.5" head tube | 73mm threaded BSA | Enduro bearings | Boost 12mm thru-axle dropouts
Suspension Fork
XCR-34 Air | Boost | 27.5" | Steel stanchions | 1.5" Tapered Aluminum steer | 130mm travel | hydraulic lockout |15x110mm Thru-Axle
Rear Shock
X-Fusion 02 Pro R | Trunnion | 165x42.5mm | Rebound adjuster
Drivetrain
Rear Derailleur
New Shimano Deore RD-M5100 | 11-spd | Shadow Plus
Shift Levers
New Shimano Deore SL-M5100-R 11-spd
Cassette
New Shimano Deore CS-M5100-11 | 11-spd | 11-51T
Crank
Suntour Zeron 1X AX-S-BT-30 | Boost | 30T Steel Zig-Zag Chainring
Bottom Bracket
Suntour BB-BKA008-C | 73mm | sealed cartridge
Chain
KMC X11 NP/NP | Missing Link
Pedals
N/A
Wheels
Front Hub
Shimano MT400-B | Boost Disc Aluminum 32h | 15x110mm Frt | 12x148mm Rear Thru-Axles
Rear Hub
Shimano MT400-B | Boost Disc Aluminum 32h | 15x110mm Frt | 12x148mm Rear Thru-Axles
Rims
Weinmann U-28 Disc 27.5" x 32h alloy double wall
Tires
Kenda Regolith | 27.5x2.4"
Brakes
Brakes
Shimano hydraulic BR-MT200 180/160mm Center Lock rotors
Brake Levers
Shimano BL-MT201 hydraulic
Cockpit
Stem
Pivit alloy Trail 0 Deg. | 4 bolts | Ext.: 40mm
Handlebar
Pivit Aluminum 20mm riser bar 31.8mm | 780mm | 9 Deg. sweep
Headset
FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm head tube, W/ 8mm Top Cone
Seat
Saddle
WTB Volt Sport w/ color accents
Seatpost
Pivit alloy micro adjust 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 335 mm | 335 mm |
| Front Center | 712 mm | 742 mm |
| Rake | 44 mm | 44 mm |
| Trail | 105 mm | 104 mm |
| Stack | 583 mm | 593 mm |
| Reach | 421 mm | 446 mm |
| Top Tube Length | 581 mm | 609 mm |
| Seat Tube Angle | 75 ° | 75 ° |
| Seat Tube Length | 396 mm | 433 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm |
| Chainstay Length | 426 mm | 426 mm |
| Wheelbase | 1137 mm | 1167 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 27" | 27" |
Model Overview

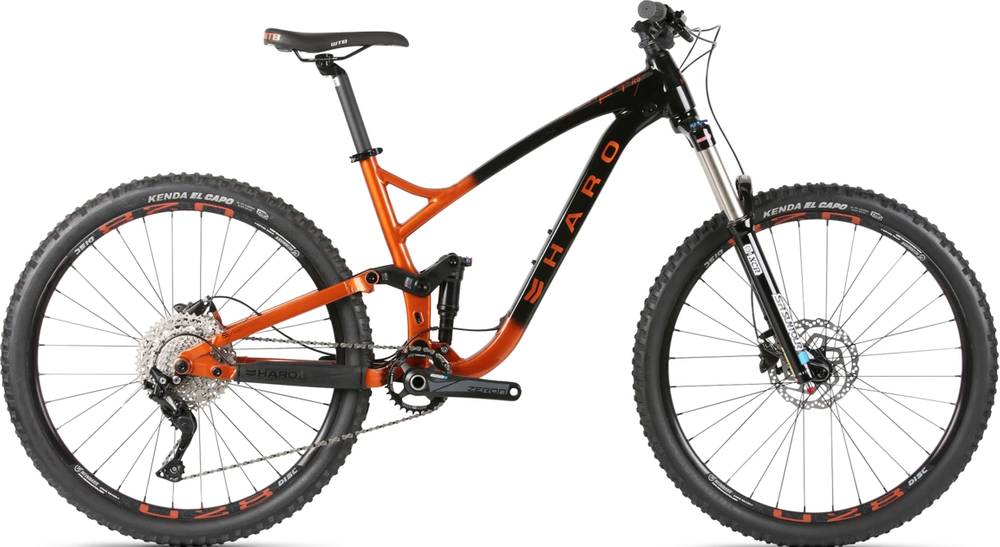

Shift R5 27.5 completes the Haro Shift model. There are 31 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Haro Shift S3 29 2021 is the most affordable bike of this model and has a price of 1499$. On the other hand, Haro Shift R9 27.5 2021, is the most expensive and costs 3199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1899$. Comparing this to the average Trail bike price, we see that the price is 45.44% smaller.
Overview of components
Fork
This bike has the SunTour XCR 34 fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The wheels on Shift R5 27.5 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Haro Shift R5 27.5 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
