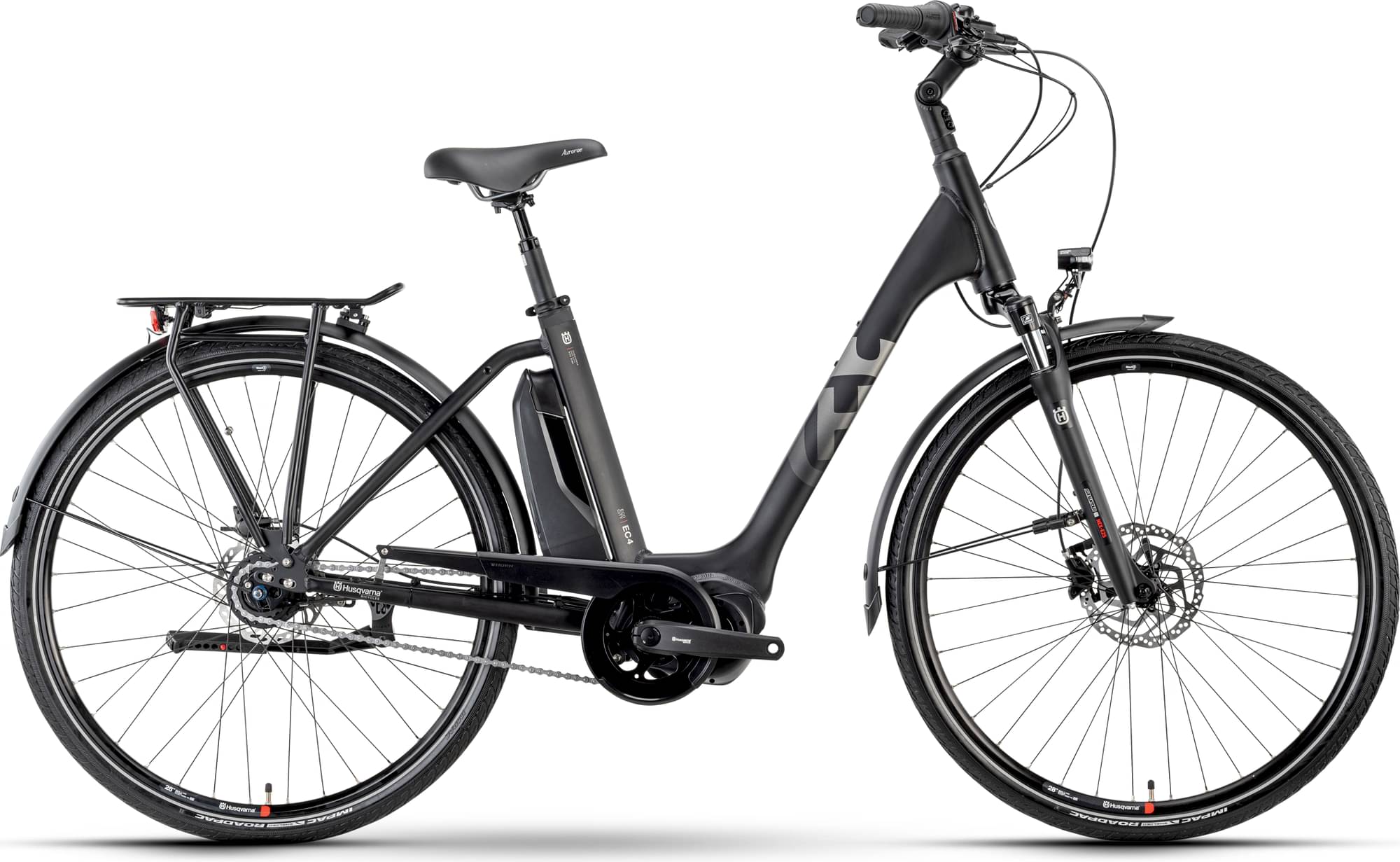

Husqvarna Eco City 4 CB 2021
2021 E-bike
Estimate price |
3,373$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Pack SH1, 504 Wh, 36 V -
Drivetrain Internally Geared Hub -
Brakes Coaster
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Seattube Akku
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 50 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000-8, Revoshift
Cassette
Shimano SM-Gear, 19
Crank
Husqvarna, 38 T
Chain
Z1 Wide EPT
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Mach 1 630E, With eyelets, Tubeless ready / Hub: Shimano Tourney TX505, Center lock, 9x100 mm, Quick-release axle, Rear: Rim: Mach 1 630E, With eyelets, Tubeless ready / Hub: Shimano Nexus, SG-C6001, Center lock, 10x135 mm, Threaded axle
Tires
Impac Roadpac, 47-622, 28x1.85,
Brakes
Brakes
Front: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT200, 2-piston, Hydraulic disc brake, Coaster brake
Cockpit
Stem
Husqvarna 31.8, Ahead, adjustable
Handlebar
Husqvarna Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
Husqvarna Ergo, Schraubgriffe
Headset
Husqvarna ZS44/ZS56
Seat
Saddle
Husqvarna
Seatpost
Husqvarna, 30.9 mm, Patent
Motor & Battery
Motor
Shimano E6110, DU-E6110, 250 W, 60 Nm
Battery
Pack SH1, 504 Wh, 36 V
Charger
Charger SH, 2 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.573 mm | 1.568 mm | 1.566 mm |
| Front Center | 684 mm | 694 mm | 705 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm |
| Stack | 659 mm | 668 mm | 678 mm |
| Reach | 419 mm | 426 mm | 433 mm |
| Top Tube Length | 620 mm | 630 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 485 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 185 mm | 195 mm | 205 mm |
| Chainstay Length | 545 mm | 545 mm | 545 mm |
| Wheelbase | 1222 mm | 1232 mm | 1243 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Eco City 4 CB completes the Husqvarna E Eco model. 7 e-bikes variations carry this model name so far. Take a sneak peek at all Husqvarna E Eco e-bikes models from 2021, by clicking here.
Model range prices
Husqvarna Eco City 1 2021 is the cheapest e-bike model and costs 2540$. Husqvarna Eco City 4 FW 2021 is the most expensive one and costs 3070$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
General Urban e-bikes average price
If you want an acceptable General Urban e-bike you should know that the average price is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3070$. Doing a quick comparison, we notice that Eco City 4 CB price is 46.33% more expensive than the average cost of a General Urban e-bike.
General Urban e-bikes average weight
The average weight for General Urban e-bikes is 24.08 kg (53.09 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Eco City 4 CB weighs 24.9 kg (54.9 lbs) and is slightly heavier than the average. In conclusion, the average General Urban e-bike weighs 3.41% less than Eco City 4 CB.
Eco City 4 CB components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Eco City 4 CB are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Eco City 4 CB comes with Coaster brakes. Coaster brakes are among the oldest brake types you can find on a bike. However, they have flaws, especially if the chain falls off.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
