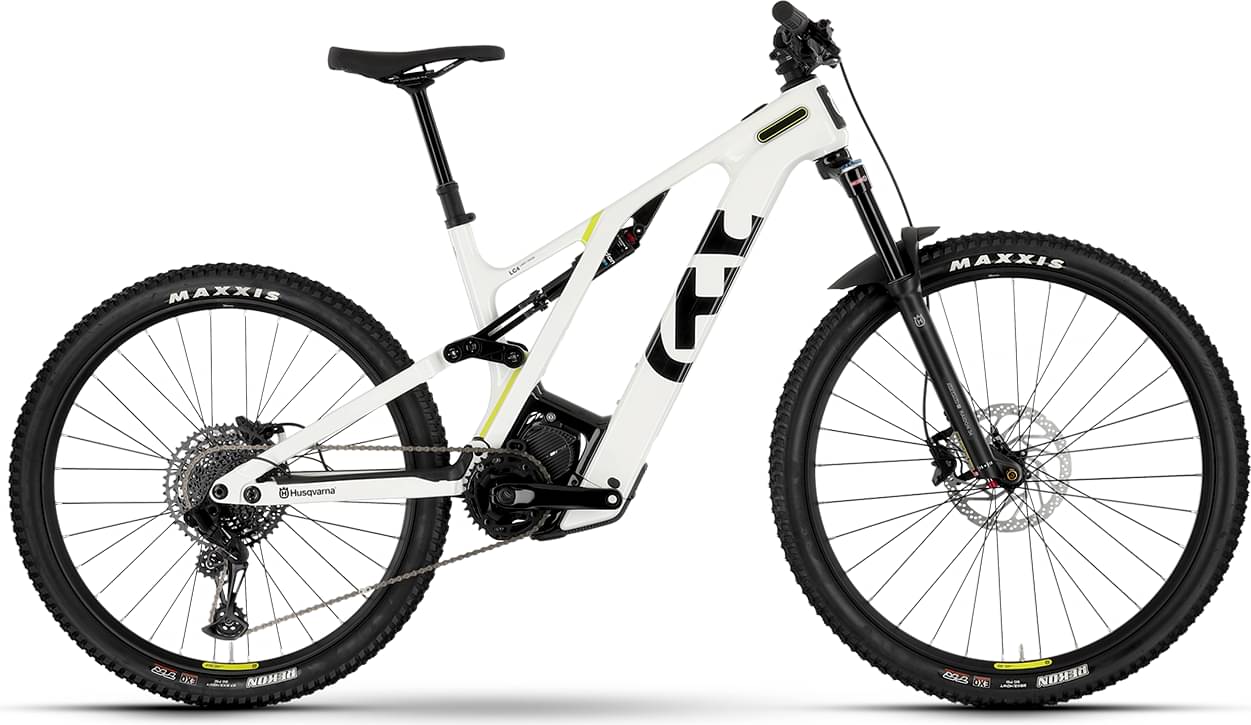

Husqvarna Light Cross LC4 2023
2023 E-bike
Estimate price |
6,863$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Suntour RAIDON
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Core S3+, 720 Wh, 36 V -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29/27.5", Carbon/Aluminium 6061, Integrated battery, Boost, New HQV Carbon, 120 mm
Suspension Fork
SR SUNTOUR Raidon34 Boost LOR, Air, 130 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 190x45 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-S
Shift Levers
SRAM SX Eagle, Single Click
Cassette
SRAM PG-1210, 11-50 T
Crank
SRAM X-Sync Eagle, 34 T
Chain
SRAM SX Eagle
Chain Guide
Husqvarna CGU
Pedals
Husqvarna, aluminum
Wheels
Rims
Front: Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, Center lock, 15x110 mm, thru axle, Rear: Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, Center lock, 12x148 mm, thru axle
Tires
Maxxis Rekon, 62-622, 29x2.4, Tubeless ready
Brakes
Brakes
Front: Shimano BR-MT410, 2-piston, Hydraulic disc brake, Rear: Shimano BR-MT410, 2-piston, Hydraulic disc brake
Cockpit
Stem
Husqvarna 35, 0 °, Ahead
Handlebar
Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
Husqvarna MTB, Lock-on grips
Headset
Acros ICR, blocklock, ZS56/ZS56
Seat
Saddle
Husqvarna MTB
Seatpost
Husqvarna Pro, 31.6 mm, Dropper post
Motor & Battery
Motor
Shimano EP8, DU-EP801, 250 W, 85 Nm
Battery
Core S3+, 720 Wh, 36 V
Charger
Charger S, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.35 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 730 mm | 764 mm | 795 mm | 826 mm |
| Rake | 38 mm | 36 mm | 37 mm | 37 mm |
| Trail | 117 mm | 115 mm | 114 mm | 114 mm |
| Stack | 600 mm | 616 mm | 629 mm | 643 mm |
| Reach | 421 mm | 456 mm | 481 mm | 506 mm |
| Top Tube Length | 555 mm | 586 mm | 618 mm | 644 mm |
| Seat Tube Angle | 78.6 ° | 78.3 ° | 78.2 ° | 78 ° |
| Seat Tube Length | 410 mm | 435 mm | 460 mm | 485 mm |
| Head Tube Angle | 66 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 130 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1167 mm | 1201 mm | 1232 mm | 1263 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Light Cross LC4 completes the Husqvarna E Light model. Husqvarna launched 15 e-bikes of this model so far. You can easily view all of the Husqvarna E Light e-bikes models from 2023, here.
Model range prices
The most economical model, the Husqvarna Light Cross LC1 2023 has a starting price of 4764$. Husqvarna Light Cross LC6 2023 on the other hand is the most expensive at 7305$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 6247$. In conclusion, this e-bike price is 85.65% higher than the price of the average Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 24.5 kg (54.01 lbs), the Light Cross LC4 model is slightly heavier than average. In other words, this model is 3.38% heavier than the average Trail e-bike.
Overview of components
Fork
This e-bike has the Suntour RAIDON fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is SR SUNTOUR Raidon R, with a travel distance of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Light Cross LC4 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Light Cross LC4 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Husqvarna Light Cross LC4 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Husqvarna Light Cross LC4 includes a dropper post. Therefore, climbing or descending will be a breeze.
