Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM XG 1275 10-52 12 speed
Crank
SRAM NX Eagle DUB Wide spindle, 30t Alloy RingS/M: 170mm, L/XL: 175mm
Bottom Bracket
SRAM DUB BSA
Chain
SRAM NX Eagle
Chain Guide
Ibis Top Guide
Wheels
Rims
Ibis 933 Aluminum Rims, Ibis Hubs
Tires
Maxxis Recon Race 29" x 2.4" Exo/TR WT
Brakes
Brakes
SRAM G2 R, 4 piston
Cockpit
Stem
Ibis 31.8mmS/M: 40mm, L/XL: 50mm
Handlebar
Ibis Aluminum, 780mm
Grips
Lizard Skin Charger Evo
Headset
Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower
Seat
Saddle
WTB Silverado
Seatpost
KS Rage-i DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.35 mm | 1.28 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 683 mm | 728 mm | 769 mm | 820 mm |
| Rake | 34 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 622 mm | 629 mm | 642 mm | 665 mm |
| Reach | 411 mm | 442 mm | 477 mm | 518 mm |
| Top Tube Length | 587 mm | 615 mm | 647 mm | 682 mm |
| Seat Tube Angle | 74 ° | 74.5 ° | 75 ° | 76 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1107 mm | 1152 mm | 1193 mm | 1244 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 700 | 721 mm | 769 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

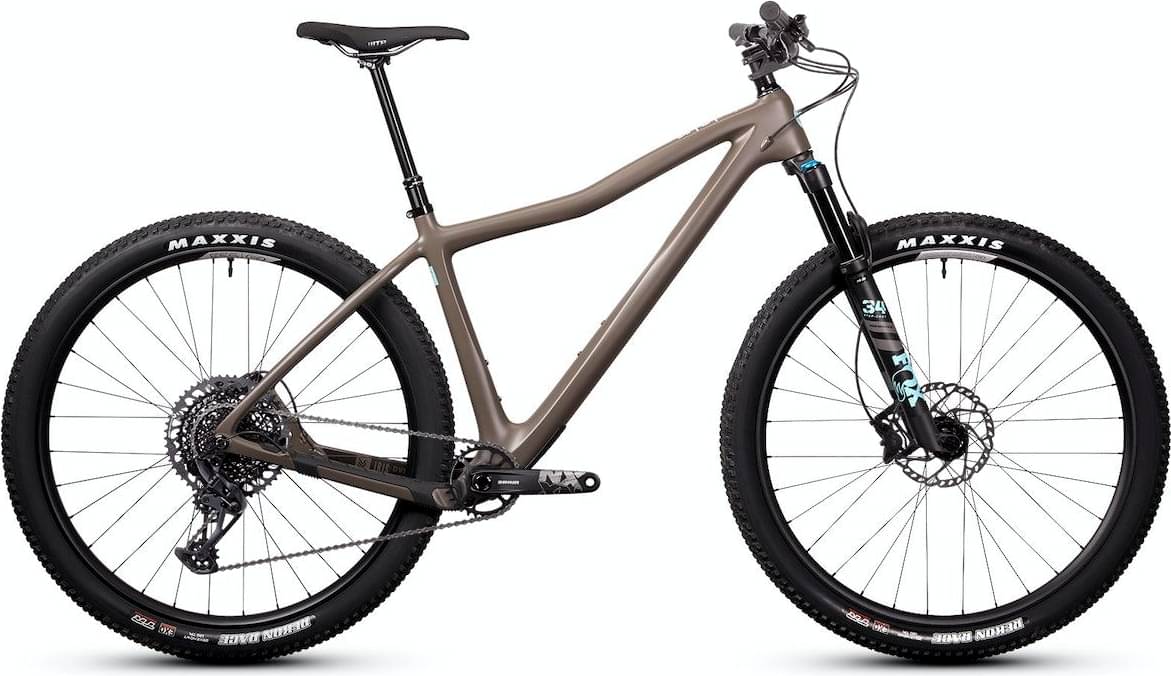

DV9 V2 GX is part of the Ibis Dv9 model. 24 bikes variations carry this model name so far. You can easily view all of the Ibis Dv9 bikes models from 2023, here.
Model range prices
The most economical model, the Ibis DV9 V2 GX 2023 has a starting price of 3499$. Ibis DV9 V2 XX SL 2023 on the other hand is the most expensive at 8699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Ibis DV9 V2 GX price was 3499$. If we compare this with the average Trail bike cost we notice that the price is 26.68% higher.
Overview of components
Fork
Ibis DV9 V2 GX 2023 bike is equipped with the Fox Performance Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The DV9 V2 GX 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DV9 V2 GX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Ibis DV9 V2 GX bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the DV9 V2 GX. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
