Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission, XX Eagle Transmission -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Factory Series, 34 SC Fit 4 Remote, 120mm, 44mm offset, 29", 110x15mm
Drivetrain
Rear Derailleur
SRAM XX SL Eagle Transmission AXS
Shift Levers
SRAM XX Transmission AXS Controller
Cassette
SRAM XX SL Transmission 10-52
Crank
SRAM XX SL Transmission, 32t Alloy Ring
Bottom Bracket
SRAM DUB BSA
Chain
SRAM XX SL Transmission - 114 Links for 30T and 32T; Setup Key A
Chain Guide
Ibis Top Guide
Wheels
Rims
Ibis S28 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Maxxis Recon Race 29" x 2.4" Exo/TR WT
Brakes
Brakes
Shimano XTR M9100 2 piston
Cockpit
Stem
Industry Nine A318S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Grips
Lizard Skin Charger Evo
Headset
Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower
Seat
Saddle
WTB Silverado Ti 142
Seatpost
SRAM Reverb AXS DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.42 mm | 1.35 mm | 1.28 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 683 mm | 728 mm | 769 mm | 820 mm |
| Rake | 34 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 622 mm | 629 mm | 642 mm | 665 mm |
| Reach | 411 mm | 442 mm | 477 mm | 518 mm |
| Top Tube Length | 587 mm | 615 mm | 647 mm | 682 mm |
| Seat Tube Angle | 74 ° | 74.5 ° | 75 ° | 76 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1107 mm | 1152 mm | 1193 mm | 1244 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 700 | 721 mm | 769 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

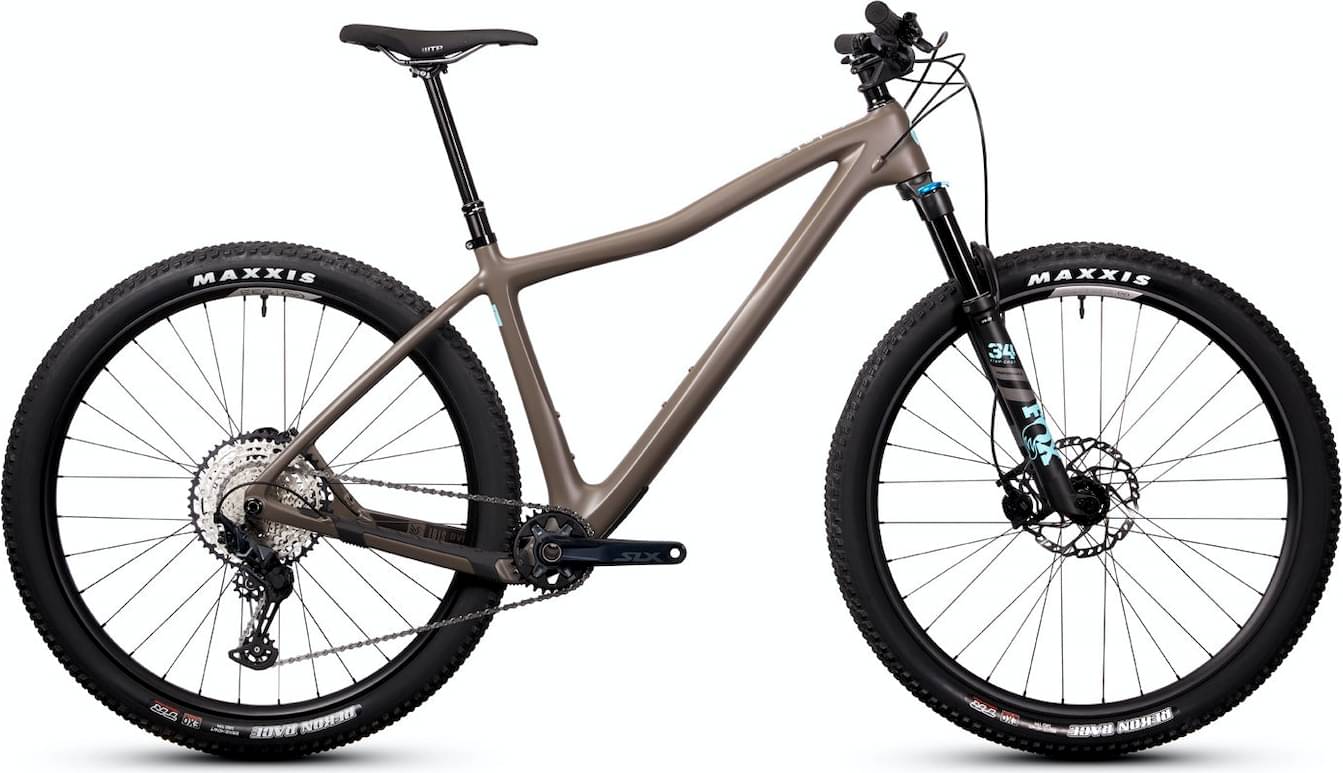

DV9 V2 XX SL is part of the Ibis Dv9 model. Ibis launched 24 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Ibis DV9 V2 GX 2023 has a starting price of 3499$. Ibis DV9 V2 XX SL 2023 on the other hand is the most expensive at 8699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Ibis DV9 V2 XX SL price was 8699$. Doing a quick comparison, we notice that DV9 V2 XX SL price is 214.95% more expensive than the average cost of a Trail bike.
DV9 V2 XX SL components
Fork
Ibis DV9 V2 XX SL 2023 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the DV9 V2 XX SL bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis DV9 V2 XX SL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
