Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float Rhythm 34, 120mm, Grip, 29”, 110x15
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano XT
Cassette
Shimano XT 11-46
Crank
Shimano XT M8000 175, 24mm spindle, 30t Alloy Ring
Bottom Bracket
73mm English threaded
Chain
Shimano HG-701
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Ibis
Rear Hub
Ibis
Rims
938 Alloy, Ibis Hubs (Ibis 933 wheelset with Step Cast fork upgrade)
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 29 x 2.6 (Racing Ray/Thunder Burt 29"x2.25” with Step Cast fork upgrade)
Brakes
Brakes
Shimano XT M8000 2 piston
Brake Levers
Shimano XT M8000
Disk Rotors
Shimano SM-RT86 180 / 160
Cockpit
Stem
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Handlebar
Ibis 800mm Carbon (10 or 30mm rise)
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40: ZS44/EC49
Seat
Saddle
WTB Silverado 142
Seatpost
Thomson 31.6 Elite, 367mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.57 mm | 1.52 mm | 1.46 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 622.3 mm | 639.3 mm | 645.3 mm | 660.3 mm |
| Reach | 386.3 mm | 407.3 mm | 424.3 mm | 451.3 mm |
| Top Tube Length | 584.3 mm | 609.3 mm | 630.3 mm | 660.3 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 368.3 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 67.4 ° | 67.4 ° | 67.4 ° | 67.4 ° |
| Head Tube Length | 92 mm | 110 mm | 116 mm | 133 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1102 mm | 1138 mm | 1159 mm | 1194 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 54 mm |
| Standover Height | 699 mm | 769 mm | 769 mm | 794 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

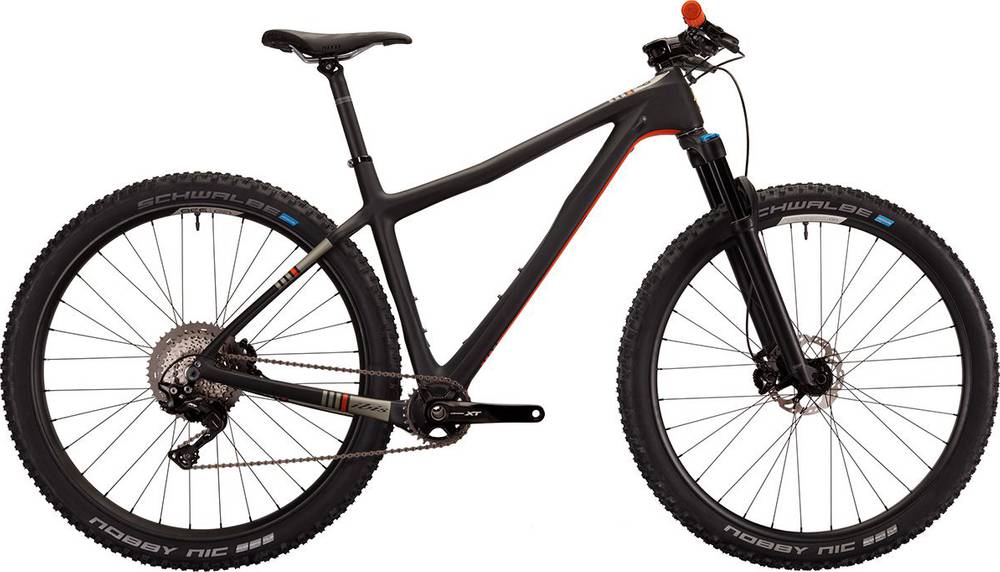

DV9 XT is an Ibis Dv9 model. 24 bikes variations carry this model name so far. You can easily view all of the Ibis Dv9 bikes models from 2019, here.
Model range prices
Ibis DV9 NX 2019 is the most affordable bike of this model and has a price of 2370$. On the other hand, Ibis DV9 XTR 2019, is the most expensive and costs 7380$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 3780$. Comparing the average cost of a Trail bike to this one, you will see that DV9 XT price is 36.86% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the DV9 XT bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis DV9 XT is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
DV9 XT comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
