Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Factory Series, 34 SC Fit 4 Remote, 120mm, 44mm offset, 29", 110x15mm
Rear Shock
Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG 1295 Eagle 10-52
Crank
SRAM X01 Eagle DUB Wide spindle, 30t Alloy RingS/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 Eagle
Wheels
Rims
Ibis 933 Aluminum Rims, Ibis Hubs
Tires
Maxxis Recon Race 29" x 2.4" Exo/TR WT
Brakes
Brakes
Shimano XT M8100
Cockpit
Stem
Industry Nine A318S/M: 40mm, L/XL: 50mm
Handlebar
Ibis Carbon Hi Fi, 31.8mm, 800mm
Grips
Lizard Skin Charger Evo
Headset
IS 41/28.6 upper, IS 52/40 lower
Seat
Saddle
WTB Silverado
Seatpost
Bike Yoke Revive DropperS: 125mm, M: 160mm, L: 185mm, XL: 213mm. Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.26 mm | 1.21 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 694 mm | 724 mm | 768 mm | 819 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 599 mm | 613 mm | 637 mm |
| Reach | 420 mm | 446 mm | 485 mm | 526 mm |
| Top Tube Length | 591 mm | 620 mm | 651 mm | 682 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 74.8 ° | 75.9 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1135 mm | 1165 mm | 1209 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 729 mm | 734 mm | 755 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

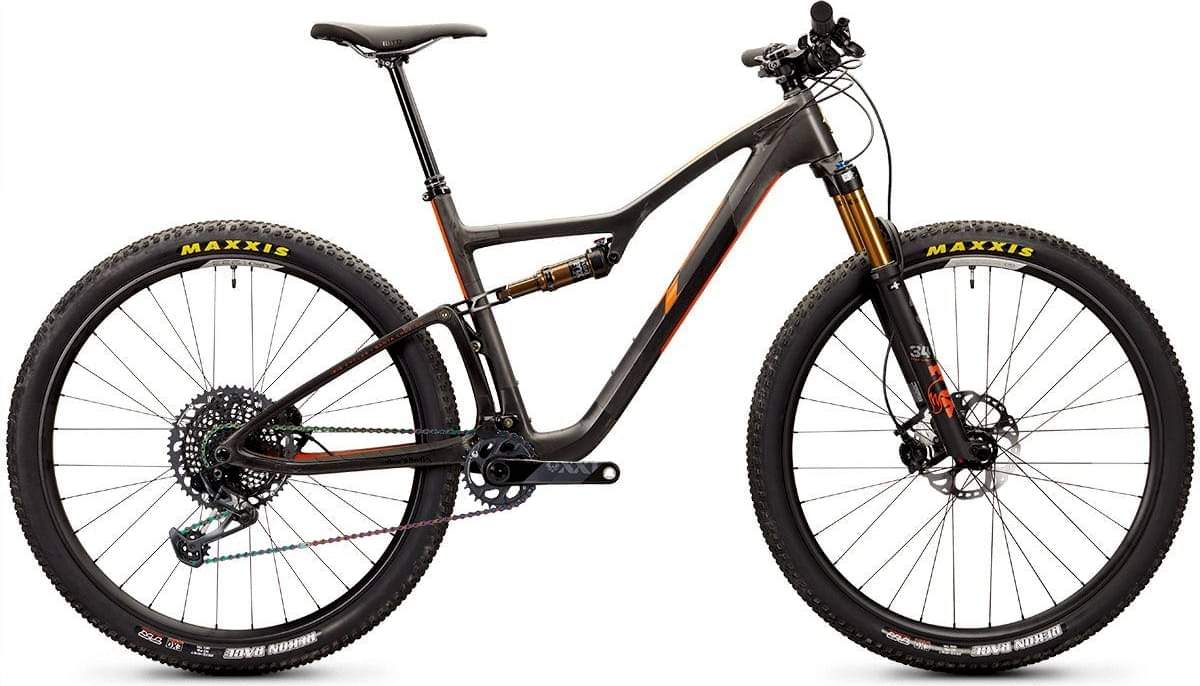

Exie USA X01 completes the Ibis Exie model. Ibis launched 17 bikes of this model so far. You can easily view all of the Ibis Exie bikes models from 2023, here.
Model range prices
Ibis Exie GX 2023 is the most affordable bike of this model and has a price of 4999$. On the other hand, Ibis Exie USA XX1 AXS 2023, is the most expensive and costs 12799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ibis released this model in 2023, its price was 7999$. In conclusion, this bike price is 319.9% more expensive than the price of the average Crosscountry bike.
Overview of components
Fork
Ibis Exie USA X01 2023 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Remote w/ adjust, with a travel distance of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Exie USA X01 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Ibis model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
