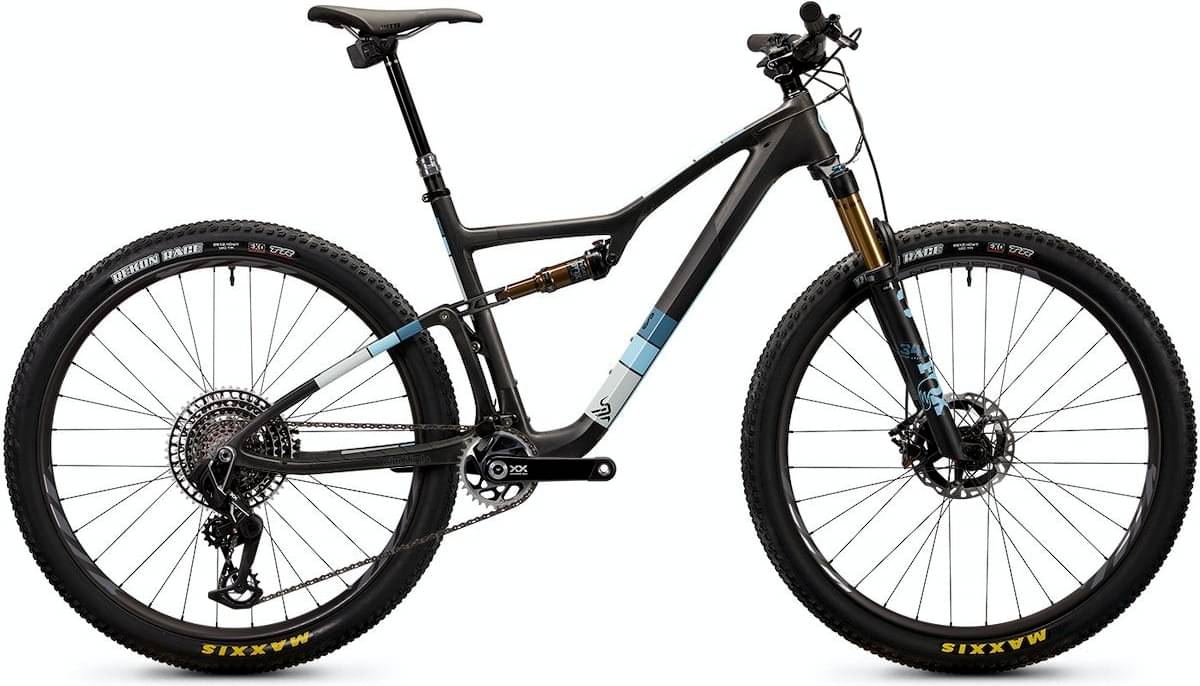

Ibis Exie USA XX SL Transmission 2023
2023 Mountain
Estimate price |
12,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission, XX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Factory Series, 34 SC Fit 4 Remote, 120mm, 44mm offset, 29", 110x15mm
Rear Shock
Fox Float DPS Remote w/ adjust, 190 x 45, light rebound and compression
Drivetrain
Rear Derailleur
SRAM XX SL Eagle Transmission AXS
Shift Levers
SRAM XX Transmission AXS Controller
Cassette
SRAM XX SL Transmission 10-52
Crank
SRAM XX SL Transmission, 32t Alloy Ring
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX SL Transmission - 116 Links for 30T and 32T; Setup Key B
Wheels
Rims
Ibis S28 Carbon Rims / 29" / Industry 9 Hydra Hubs
Tires
Maxxis Recon Race 29" x 2.4" Exo/TR WT
Brakes
Brakes
Shimano XTR M9100 2 piston
Cockpit
Stem
Industry Nine A318S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Hi Fi Bar
Grips
Lizard Skin Charger Evo
Headset
IS 41/28.6 upper, IS 52/40 lower
Seat
Saddle
WTB Silverado
Seatpost
SRAM Reverb AXS DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.26 mm | 1.21 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 694 mm | 724 mm | 768 mm | 819 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm |
| Trail | 110 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 599 mm | 613 mm | 637 mm |
| Reach | 420 mm | 446 mm | 485 mm | 526 mm |
| Top Tube Length | 591 mm | 620 mm | 651 mm | 682 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 74.8 ° | 75.9 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 85 mm | 95 mm | 110 mm | 135 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1135 mm | 1165 mm | 1209 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 729 mm | 734 mm | 755 mm | 761 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Exie USA XX SL Transmission is an Ibis Exie model. 17 bikes variations carry this model name so far. You can easily view all of the Ibis Exie bikes models from 2023, here.
Model range prices
The most economical model, the Ibis Exie GX 2023 has a starting price of 4999$. Ibis Exie USA XX1 AXS 2023 on the other hand is the most expensive at 12799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 12299$. Comparing this to the average Crosscountry bike price, we see that the price is 545.62% more expensive.
Overview of components
Fork
Ibis Exie USA XX SL Transmission 2023 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Ibis Exie USA XX SL Transmission bike has the Fox Float DPS Remote w/ adjust model installed, and has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Exie USA XX SL Transmission are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis Exie USA XX SL Transmission has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Exie USA XX SL Transmission comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Ibis Exie USA XX SL Transmission includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
