Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front and rear triangle
Suspension Fork
Fox Float 38 Factory Series, 180mm, 29”, 110x15
Rear Shock
Fox Float X2 Factory Series with EVOL, 230mm x 65mm
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission AXS
Shift Levers
Eagle AXS Pod Ultimate Controller
Cassette
SRAM XX Transmission 10-52
Crank
SRAM XX Eagle Transmission AXS, DUB, 32T Alloy Ring, 170mm,
Bottom Bracket
Threaded (73mm BSA)
Chain
SRAM XX Eagle Transmission, Flattop
Chain Guide
MRP AMg SE
Wheels
Rims
Ibis S35 Carbon Rims / 29" 27.5" / Industry 9 Hydra Hubs
Tires
Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4”
Brakes
Brakes
SRAM Code RSC, 4 Piston
Cockpit
Stem
Industry Nine A318S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Hi Fi Bar
Grips
Lizard Skin Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado
Seatpost
SRAM Reverb AXS DropperS: 125mm, M: 150mm, L/XL: 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.377 mm | 1.313 mm | 1.256 mm | 1.203 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 769 mm | 795 mm | 823 mm | 855 mm | 895 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136 mm | 136 mm | 136 mm | 136 mm | 136 mm |
| Stack | 621 mm | 625 mm | 630 mm | 638 mm | 651 mm |
| Reach | 430 mm | 454 mm | 480 mm | 508 mm | 541 mm |
| Top Tube Length | 585 mm | 610 mm | 630 mm | 655 mm | 685 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76.5 ° | 77 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 406 mm | 450 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 81 mm | 86 mm | 91 mm | 100 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1202 mm | 1228 mm | 1256 mm | 1288 mm | 1328 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 735 mm | 752 mm | 765 mm | 769 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

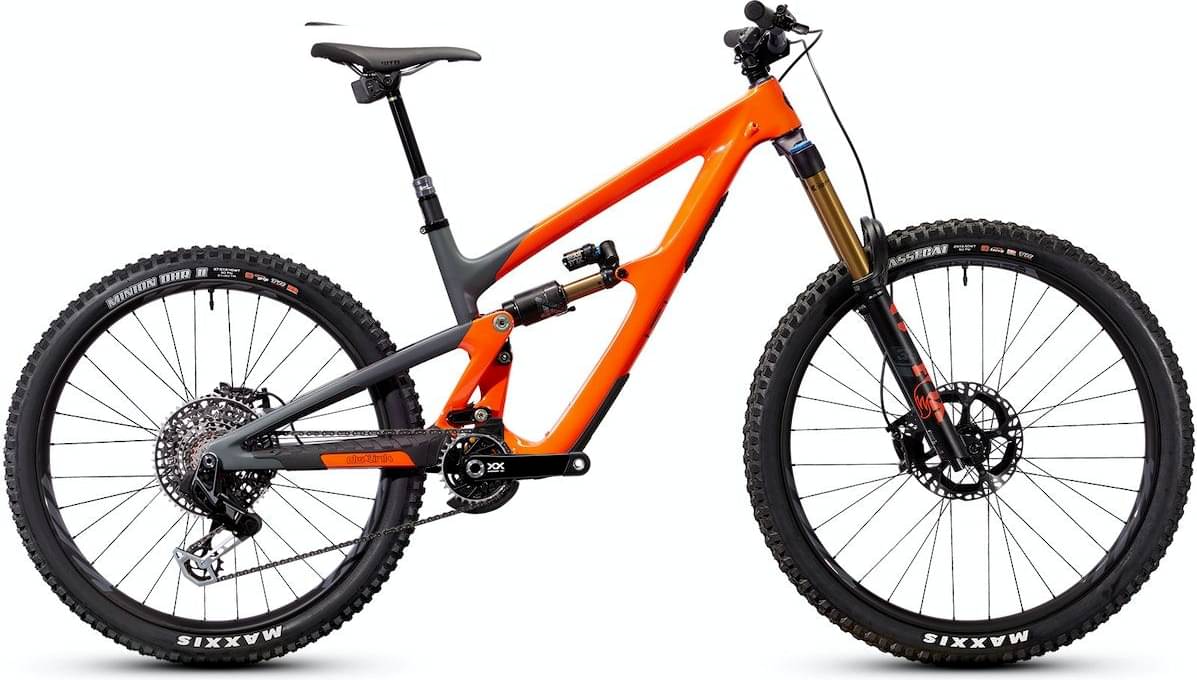

HD6 XX AXS is an Ibis Hd6 model. Ibis released 6 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Ibis HD6 GX 2023 is the most economical model, with a starting price of 6099$. Ibis HD6 XX AXS 2023 on the other hand costs 11199$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 11199$. In conclusion, this bike price is 211.17% more expensive than the price of the average Enduro bike.
HD6 XX AXS components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Ibis HD6 XX AXS bike has the Fox Float X2 Factory Series with EVOL model installed, and has a travel of 165mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The HD6 XX AXS 2023 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
