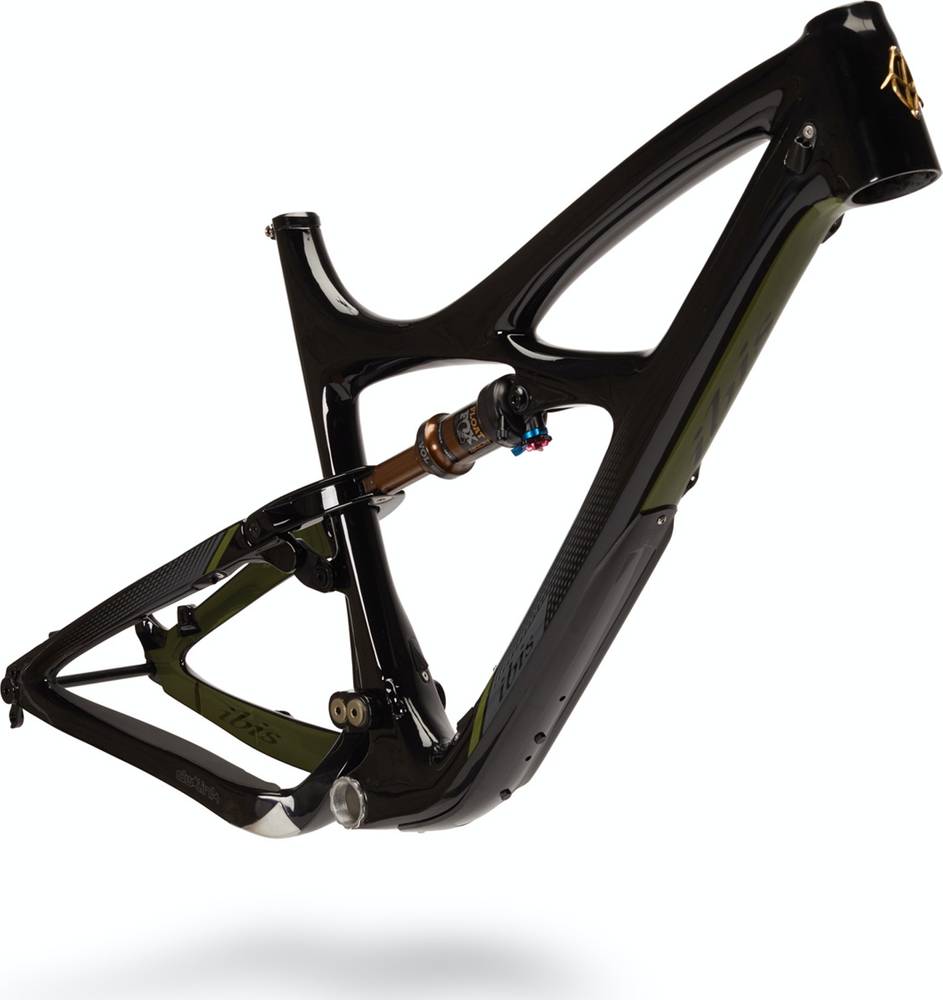

Ibis Mojo 3 Frameset 2020
2020 Mountain
Estimate price |
2,833$
Weight | 2.54 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 130mm -
Fork Fox -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float Performance Series, DPS with EVOL, 7.875 x 2.00
Drivetrain
Bottom Bracket
Threaded (68mm English threaded)
Brakes
Brakes
160mm post mount (203mm max rotor)
Cockpit
Headset
ZS44 upper / ZS56 lower
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 575 mm | 594 mm | 604 mm | 618 mm |
| Reach | 423 mm | 426 mm | 443 mm | 459 mm |
| Top Tube Length | 583 mm | 598 mm | 619 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° |
| Seat Tube Length | 368 mm | 425 mm | 470 mm | 514 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1128 mm | 1139 mm | 1160 mm | 1182 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 678 mm | 714 mm | 726 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo 3 Frameset is an Ibis Mojo model. Ibis launched 76 frames of this model so far. Take a sneak peek at all Ibis Mojo frames models from 2020, by clicking here.
Model range prices
Ibis Mojo 3 Frameset 2020 is the most affordable frame of this model and has a price of 2833$. On the other hand, Ibis Mojo HD5 Frameset 2020, is the most expensive and costs 2999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail frames
According to our math, the average price for a trustworthy Trail frame is 1736$. However, this doesn’t mean that if you spend less money on a Trail frame, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
When Ibis released this model in 2020, its price was 2833$. In conclusion, this frame price is 63.19% more expensive than the price of the average Trail frame.
Average weight for Trail frames
If we make a quick analysis of the average weight of a Trail frame, we get 2.93 kg (6.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Mojo 3 Frameset has a weight of 2.54 kg (5.6 lbs). In conclusion, the average Trail frame weighs 15.35% more than Mojo 3 Frameset.
Mojo 3 Frameset components
Fork
The Mojo 3 Frameset comes factory-installed with the Fox fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Brakes
Stopping the bike when needed, it’s essential for your safety. This frame has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
