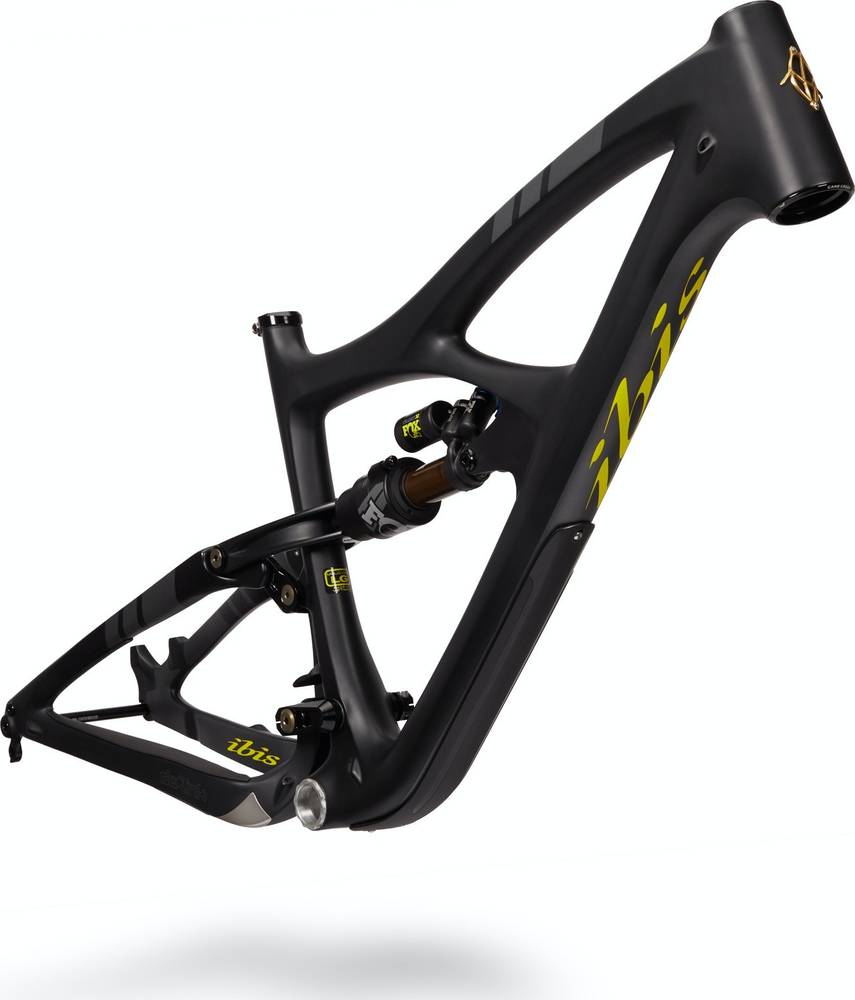

Ibis Mojo HD5 Frameset 2020
2020 Mountain
Estimate price |
2,999$
Weight | 2.54 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 153mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
None. Select a fork >
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 7.875 x 2.25
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Brakes
Brakes
180mm post mount / 203mm max
Cockpit
Headset
ZS44 upper / ZS56 lower
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 761 mm | 788 mm | 820 mm | 857 mm |
| Rake | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 602 mm | 618 mm | 633 mm | 647 mm |
| Reach | 434 mm | 454 mm | 479 mm | 510 mm |
| Top Tube Length | 589 mm | 613 mm | 642 mm | 676 mm |
| Seat Tube Angle | 75.8 ° | 75.8 ° | 75.8 ° | 75.8 ° |
| Seat Tube Length | 356 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1198 mm | 1225 mm | 1257 mm | 1294 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 703 mm | 717 mm | 738 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo HD5 Frameset belongs to the Ibis Mojo model. Ibis released 76 frames variations of this model so far. You can easily view all of the Ibis Mojo frames models from 2020, here.
Model range prices
Ibis Mojo 3 Frameset 2020 is the most economical model, with a starting price of 2833$. Ibis Mojo HD5 Frameset 2020 on the other hand costs 2999$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro frames
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
This frame was released in 2020 and its price was 2999$. Comparing this to the average Enduro frame price, we see that the price is 58.26% higher.
Average weight for Enduro frames
If we make a quick analysis of the average weight of an Enduro frame, we get 3.43 kg (7.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Mojo HD5 Frameset has a weight of 2.54 kg (5.6 lbs). In short, the average Enduro frame weight is 35.04% higher than this one.
Overview of components
Rear Shock
The shock that’s installed on this frame is Fox Float Performance Series, with a travel distance of 153mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mojo HD5 Frameset has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
