Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset NX, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Performance Series 140mm, 27.5”, 15QR
Rear Shock
Fox Float Performance Series, DPS with EVOL, 7.875 x 2.00
Drivetrain
Rear Derailleur
SRAM Eagle NX 12 Speed
Shift Levers
SRAM NX 12 Speed
Cassette
SRAM PG 1230 11-50T
Crank
SRAM NX Eagle, DUB spindle, 30t Steel Ring
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Eagle NX with Power Lock, 12 speed
Wheels
Rims
738 Alloy, Ibis Hubs
Tires
Schwalbe Hans Dampf (front) Nobby Nic (rear) 27.5 x 2.6 Addix Speedgrip Apex TL-Easy
Brakes
Brakes
SRAM Level
Disk Rotors
SRAM Centerline 180 rotors
Cockpit
Stem
Ibis 31.8mm (50, 60, 70, 80, 90mm)
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40: ZS44/EC49
Seat
Saddle
WTB Silverado 142
Seatpost
KS E30i Dropper (125 or 150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 575 mm | 594 mm | 604 mm | 618 mm |
| Reach | 423 mm | 426 mm | 443 mm | 459 mm |
| Top Tube Length | 583 mm | 598 mm | 619 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 73.8 ° | 73.7 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 425 mm | 470 mm | 514 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° | 66.8 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1128 mm | 1139 mm | 1160 mm | 1182 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 678 mm | 714 mm | 726 mm | 756 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

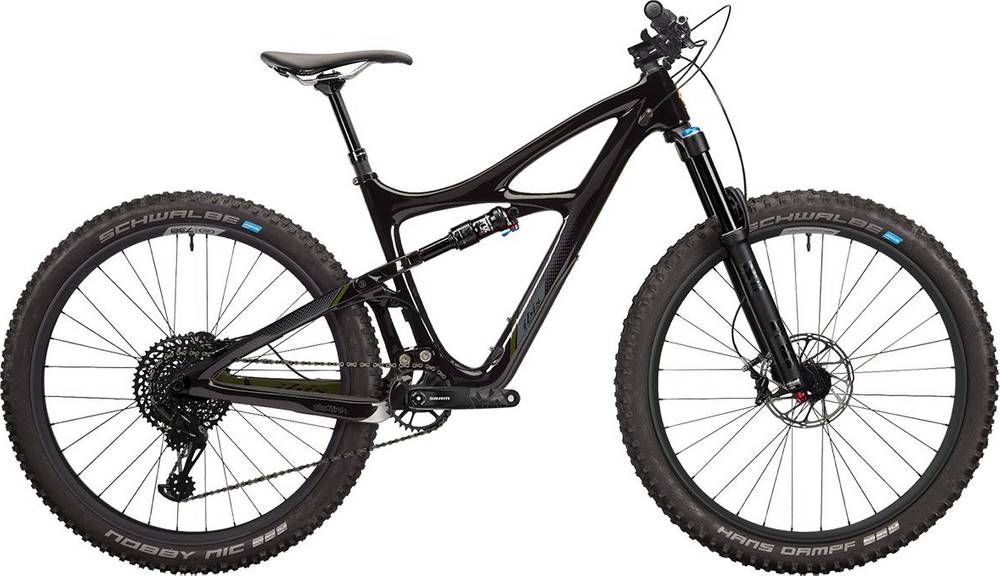

About this model
Mojo 3 NX Eagle belongs to the Ibis Mojo model. Ibis released 76 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Ibis Mojo 3 NX Eagle 2019 is the most affordable bike of this model and has a price of 4099$. On the other hand, Ibis Mojo HD4 XX1 Eagle 2019, is the most expensive and costs 9599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Ibis released this model in 2019, its price was 4099$. Doing a quick comparison, we notice that Mojo 3 NX Eagle price is 48.41% higher than the average cost of a Trail bike.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float Performance Series, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Mojo 3 NX Eagle model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Mojo 3 NX Eagle is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Ibis Mojo 3 NX Eagle bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Ibis model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
