Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset X01, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 34 Float, Boost, 15mm quick release
Rear Shock
FOX Float DPS Factory Series EVOL, Kashima, 7.875" x 2.00"
Drivetrain
Rear Derailleur
SRAM Eagle X01, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM Eagle X01, trigger, 12-speed
Cassette
SRAM XG 1295 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle, carbon, 175mm length with 170mm option
Bottom Bracket
68mm BSA threaded
Chain
SRAM X01 Eagle PowerLock
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Ibis, Boost
Rear Hub
Ibis, Boost
Rims
Ibis 738 Very Wide Aluminum Asymmetric Wheelset, 34mm inner width
Spokes
Pillar DB 14/15
Tires
Maxxis Minion 2.5" DHF WT, Schwalbe Nobby Nic 2.8” Plus or Maxxis Minion 2.6" DHF WT
Brakes
Brakes
Shimano Deore XT BL/BR-M8000 with 180mm front/160mm rear rotors
Brake Levers
Shimano Deore XT BL/BR-M8000
Cockpit
Stem
Thomson 40mm, 50mm, 60mm, or Ibis 60mm, 70mm
Handlebar
Ibis Carbon, 800mm Hi-Fi (riser) or 760mm Lo-Fi (Flat)
Grips
Lizard Skins Logo
Headset
Cane Creek 40 ZS44/ZS56
Seat
Saddle
Ibis custom, chromoly rails
Seatpost
FOX Transfer Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.4 mm | 1.374 mm | 1.354 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 578 mm | 592 mm | 602 mm | 616 mm |
| Reach | 419 mm | 423 mm | 438 mm | 455 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 366 mm | 419 mm | 476 mm | 520 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1126 mm | 1137 mm | 1158 mm | 1180 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 695 mm | 719 mm | 723 mm | 750 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

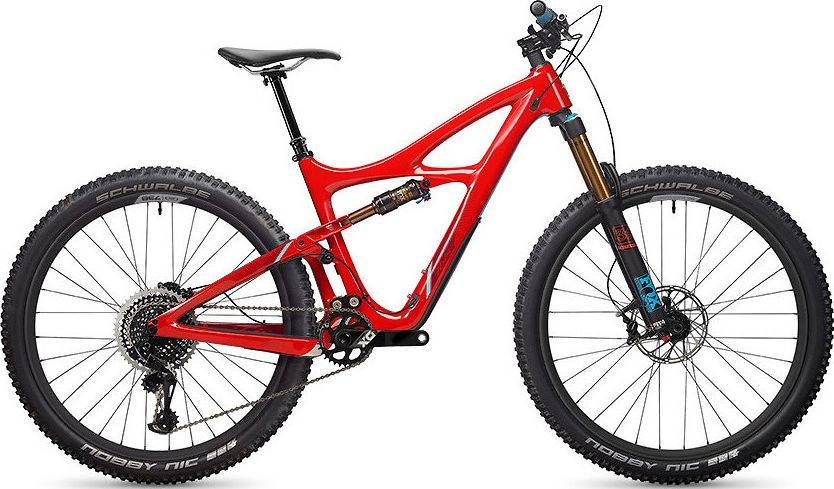

Mojo 3 X01 Eagle is an Ibis Mojo model. Ibis launched 76 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ibis Mojo 3 NX 2018 is the most economical model, with a starting price of 5856$. Ibis Mojo HD4 SRAM XX1 Eagle 2018 on the other hand costs 9699$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Ibis Mojo 3 X01 Eagle price was 8299$. Doing a quick comparison, we notice that Mojo 3 X01 Eagle price is 200.47% more expensive than the average cost of a Trail bike.
Mojo 3 X01 Eagle components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Factory Series EVOL model, with a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Mojo 3 X01 Eagle 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Ibis Mojo 3 X01 Eagle comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
