Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset XX1, XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 34 Float, Boost, 15mm quick release
Rear Shock
FOX Factory Float DPS EVOL, Kashima, 7.875" x 2.00"
Drivetrain
Rear Derailleur
SRAM Eagle XX1, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM Eagle XX1, trigger, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed
Crank
SRAM XX1 Eagle, carbon, 175mm with 170mm option
Bottom Bracket
68mm BSA threaded
Chain
SRAM Eagle XX1 with PowerLock
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Industry Nine Torch, Boost
Rear Hub
Industry Nine Torch, Boost
Rims
Ibis 742 Ultra Wide Carbon Fiber Asymmetric Wheelset
Spokes
Sapim CX-Ray
Tires
Maxxis Minion 2.6" DHF WT
Brakes
Brakes
Shimano XTR BL-M9020, BR-M9020
Brake Levers
Shimano XTR M9020
Cockpit
Stem
Enve Carbon Fiber Mountain, 40mm,55mm,70mm lengths, +/-6° rise
Handlebar
Enve Carbon DH, 800mm wide, 23mm rise, 9º sweep
Grips
Lizard Skins Logo
Headset
Cane Creek 40 ZS44/ZS56
Seat
Saddle
WTB Volt Saddle, titanium rails
Seatpost
KS LEV Carbon with choice of 175mm, 150mm, 125mm, 100mm, 65mm lengths
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.379 mm | 1.4 mm | 1.374 mm | 1.354 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 578 mm | 592 mm | 602 mm | 616 mm |
| Reach | 419 mm | 423 mm | 438 mm | 455 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74.6 ° | 73.6 ° | 73.6 ° | 73.6 ° |
| Seat Tube Length | 366 mm | 419 mm | 476 mm | 520 mm |
| Head Tube Angle | 66.8 ° | 66.8 ° | 66.8 ° | 66.8 ° |
| Head Tube Length | 85 mm | 105 mm | 117 mm | 132 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1126 mm | 1137 mm | 1158 mm | 1180 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 695 mm | 719 mm | 723 mm | 750 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

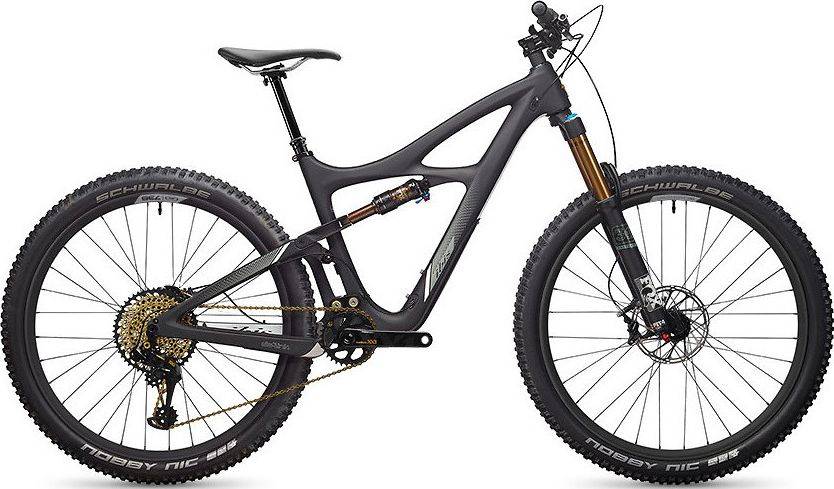

Mojo 3 XX1 Eagle is an Ibis Mojo model. 76 bikes variations carry this model name so far. Take a sneak peek at all Ibis Mojo bikes models from 2018, by clicking here.
Model range prices
Ibis Mojo 3 NX 2018 is the cheapest bike model and costs 5856$. Ibis Mojo HD4 SRAM XX1 Eagle 2018 is the most expensive one and costs 9699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 9299$. Comparing this to the average Trail bike price, we see that the price is 236.68% more expensive.
Mojo 3 XX1 Eagle components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX Factory Float DPS EVOL model, with a travel of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on Mojo 3 XX1 Eagle are the 27.5″ carbon type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Mojo 3 XX1 Eagle is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Ibis Mojo 3 XX1 Eagle includes a dropper post. Therefore, climbing or descending will be a breeze.
