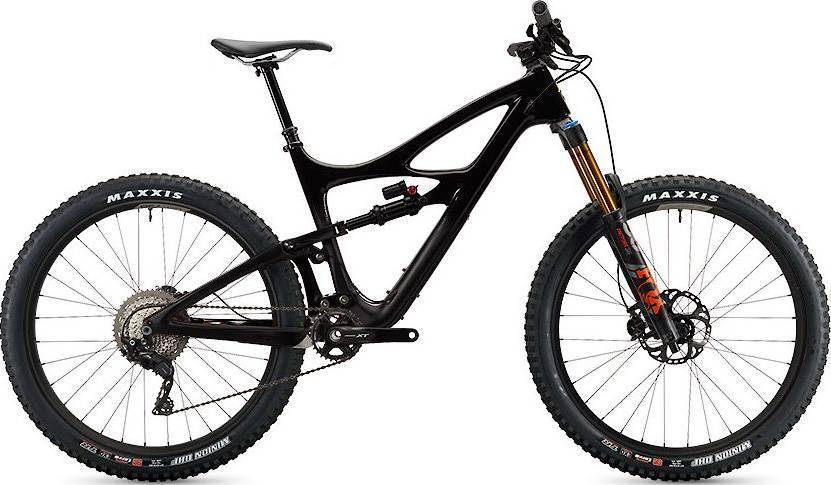

Ibis Mojo HD4 Deore XT 1x 2018
2018 Mountain
Estimate price |
7,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 153mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float Factory 36 RC2
Rear Shock
FOX Float DPX2 EVOL, 7.875" x 2.25"
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8000, Shadow+, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT SL-M8000
Cassette
Shimano Deore XT, 11-46 tooth, 11-speed
Crank
Shimano Deore XT M8000, 175mm length with 170mm option
Bottom Bracket
Threaded 68mm
Chain
Shimano CN-HG700-11
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Ibis Hubs, Boost
Rear Hub
Ibis Hubs, Boost
Rims
Ibis 738 Very Wide Asymmetric Wheelset, aluminum, 34mm inner width
Spokes
Pillar DB 14/15
Tires
Maxxis Minion DHF 2.6" WT with option for Schwalbe Nobby Nic 2.8” Plus
Brakes
Brakes
Shimano Deore XT BL/BR-M8000 with 180mm front/160mm rear rotors
Brake Levers
Shimano Deore XT BL/BR-M8000
Cockpit
Stem
Thomson Elite X4, length options 40mm - 110mm
Handlebar
Ibis Carbon, 800mm width Hi-Fi (riser) or 760mm Lo-Fi (Flat)
Grips
Lizard Skins Logo
Headset
Cane Creek 40, ZS44/ZS56
Seat
Saddle
Ibis custom saddle, chromoly rails
Seatpost
KS LEV-Si dropper with length options of 100mm, 125mm or 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 566 mm | 586 mm | 601 mm | 616 mm |
| Reach | 411 mm | 431 mm | 451 mm | 476 mm |
| Top Tube Length | 575 mm | 600 mm | 624 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 362 mm | 393 mm | 445 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 87 mm | 109 mm | 126 mm | 142 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1159 mm | 1188 mm | 1215 mm | 1247 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 689 mm | 711 mm | 725 mm | 753 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo HD4 Deore XT 1x completes the Ibis Mojo model. Ibis released 76 bikes variations of this model so far. You can easily view all of the Ibis Mojo bikes models from 2018, here.
Model range prices
Ibis Mojo 3 NX 2018 is the most economical model, with a starting price of 5856$. Ibis Mojo HD4 SRAM XX1 Eagle 2018 on the other hand costs 9699$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7799$. Doing a quick comparison, we notice that Mojo HD4 Deore XT 1x price is 116.7% higher than the average cost of an Enduro bike.
Overview of components
Fork
Ibis Mojo HD4 Deore XT 1x 2018 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Float DPX2 EVOL rear shock model, which has a travel of 153mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Ibis Mojo HD4 Deore XT 1x 2018, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mojo HD4 Deore XT 1x has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Ibis model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
