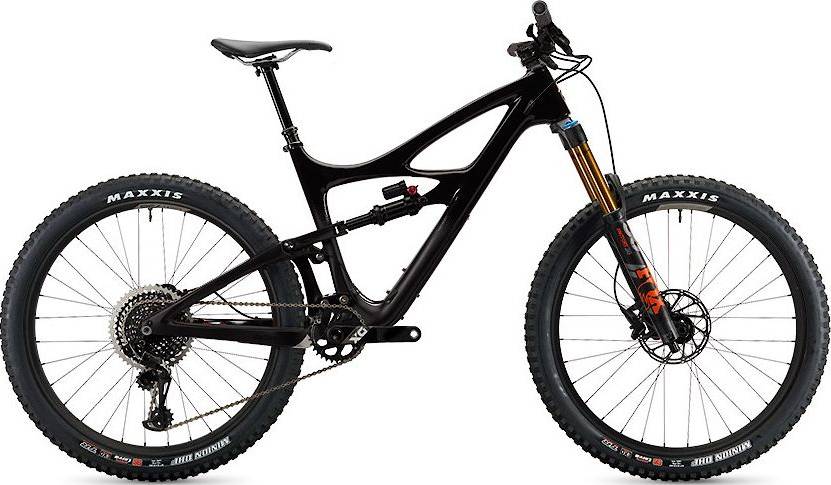

Ibis Mojo HD4 SRAM X01 Eagle 2018
2018 Mountain
Estimate price |
8,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 153mm -
Fork Fox Factory Float 36
-
Groupset X01, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float Factory 36 RC2
Rear Shock
FOX Float DPX2 EVOL, 7.875" x 2.25"
Drivetrain
Rear Derailleur
SRAM Eagle X01, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM Eagle X01, trigger, 12-speed
Cassette
SRAM XG 1295 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle, carbon, 175mm length with 170mm option
Bottom Bracket
Threaded 68mm
Chain
SRAM X01 Eagle PowerLock
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Ibis Hubs, Boost
Rear Hub
Ibis Hubs, Boost
Rims
Ibis 738 Very Wide Asymmetric Wheelset, aluminum, 34mm inner width
Spokes
Pillar DB 14/15
Tires
Maxxis Minion DHF 2.6" WT with option for Schwalbe Nobby Nic 2.8” Plus
Brakes
Brakes
Shimano Deore XT BL/BR-M8000 180mm front/160mm rear rotors
Brake Levers
Shimano Deore XT BL/BR-M8000
Cockpit
Stem
Thomson 40mm, 50mm, 60mm, or Ibis 60mm, 70mm
Handlebar
Ibis Carbon, 800mm width Hi-Fi (riser) or 760mm Lo-Fi (Flat)
Grips
Lizard Skins Logo
Headset
Cane Creek 40, ZS44/ZS56
Seat
Saddle
Ibis custom saddle, chromoly rails
Seatpost
FOX Transfer dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Stack | 566 mm | 586 mm | 601 mm | 616 mm |
| Reach | 411 mm | 431 mm | 451 mm | 476 mm |
| Top Tube Length | 575 mm | 600 mm | 624 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 362 mm | 393 mm | 445 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 87 mm | 109 mm | 126 mm | 142 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1159 mm | 1188 mm | 1215 mm | 1247 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 689 mm | 711 mm | 725 mm | 753 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo HD4 SRAM X01 Eagle belongs to the Ibis Mojo model. Ibis launched 76 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Ibis Mojo 3 NX 2018 is the most economical model, with a starting price of 5856$. Ibis Mojo HD4 SRAM XX1 Eagle 2018 on the other hand costs 9699$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Ibis Mojo HD4 SRAM X01 Eagle price was 8699$. If we compare this with the average Enduro bike cost we notice that the price is 141.71% higher.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Ibis Mojo HD4 SRAM X01 Eagle bike has the FOX Float DPX2 EVOL model installed, and has a travel of 153mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Mojo HD4 SRAM X01 Eagle model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mojo HD4 SRAM X01 Eagle comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Mojo HD4 SRAM X01 Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Ibis Mojo HD4 SRAM X01 Eagle includes a dropper post. Therefore, climbing or descending will be a breeze.
