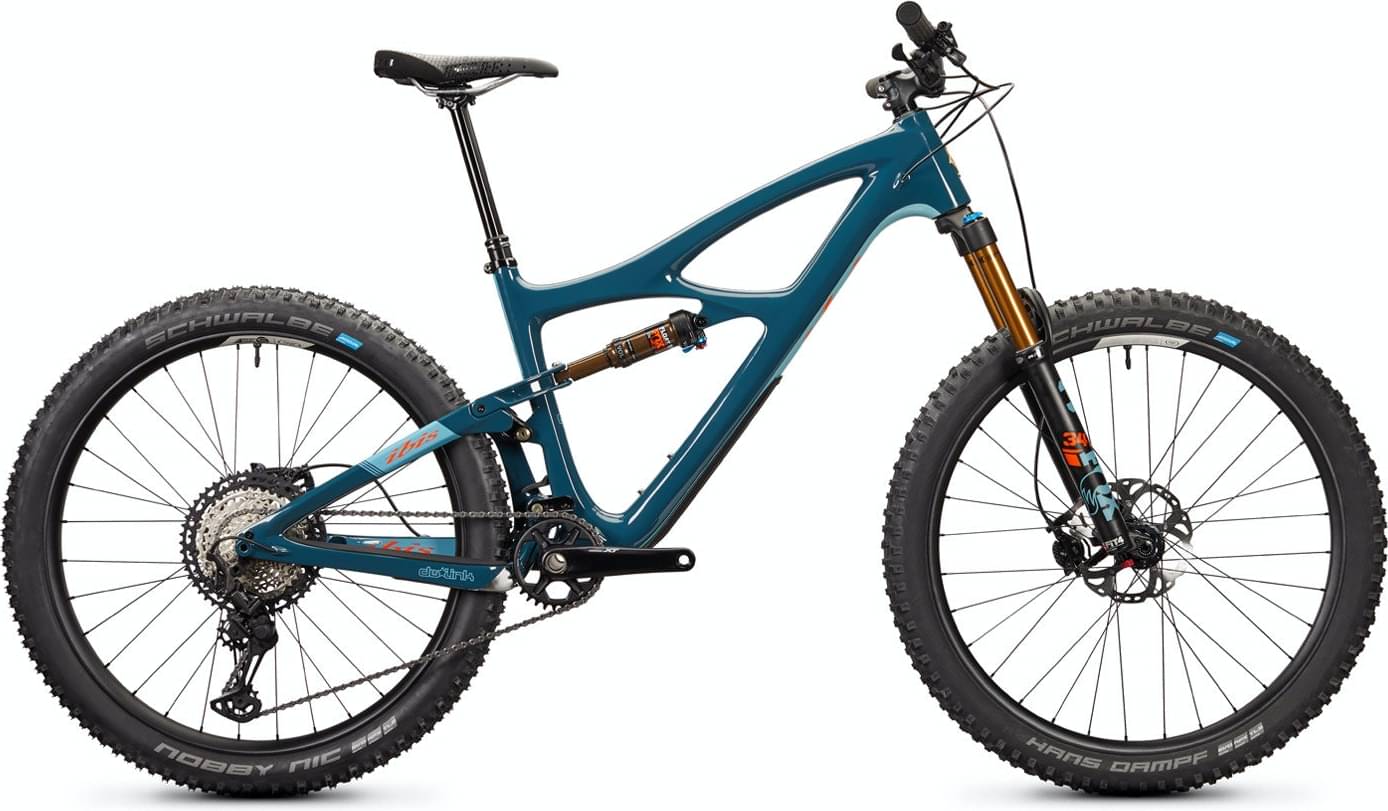

Ibis Mojo X01 2022
2022 Mountain
Estimate price |
7,899$
Weight | 12.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Rock Shox Pike Ultimate RC2 140mm, 27.5”, 110x15
Rear Shock
Fox Float Factory Series, DPS with EVOL, 210 x 50 S/M: Light Tune, L/XL: Standard
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG 1295 Eagle 10-52
Crank
SRAM X01 Eagle DUB spindle, 30t Alloy Ring, 170mm
Bottom Bracket
Threaded BB (73mm BSA)
Chain
SRAM X01 Eagle
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Schwalbe Hans Dampf 27.5" x 2.6" Addix Soft Super Trail (front), Schwalbe Nobby Nic 27.5" x 2.6" Addix Speedgrip Super Trail (rear)
Brakes
Brakes
Shimano XT M8100, 2 Piston
Disk Rotors
Shimano SM-RT86 180
Cockpit
Stem
Industry Nine A318 S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 580 mm | 595 mm | 610 mm | 624 mm |
| Reach | 434 mm | 454 mm | 479 mm | 509 mm |
| Top Tube Length | 574 mm | 597 mm | 626 mm | 660 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 360 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1160 mm | 1187 mm | 1219 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 684 mm | 714 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo X01 belongs to the Ibis Mojo model. 76 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Ibis Mojo Deore 2022 has a starting price of 5099$. Ibis Mojo XX1 AXS 2022 on the other hand is the most expensive at 11499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ibis released this model in 2022, its price was 7899$. Comparing the average cost of a Trail bike to this one, you will see that Mojo X01 price is 185.99% higher.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mojo X01 weighs 12.11 kg (26.7 lbs) and is a bit lighter than the average. To sum up, it’s 7.18% lighter than the average weight of Trail bikes.
Mojo X01 components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float Factory Series model, with a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Ibis Mojo X01 2022, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ibis Mojo X01 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Ibis Mojo X01 comes with a dropper post. Therefore, climbing or descending will be a breeze.
