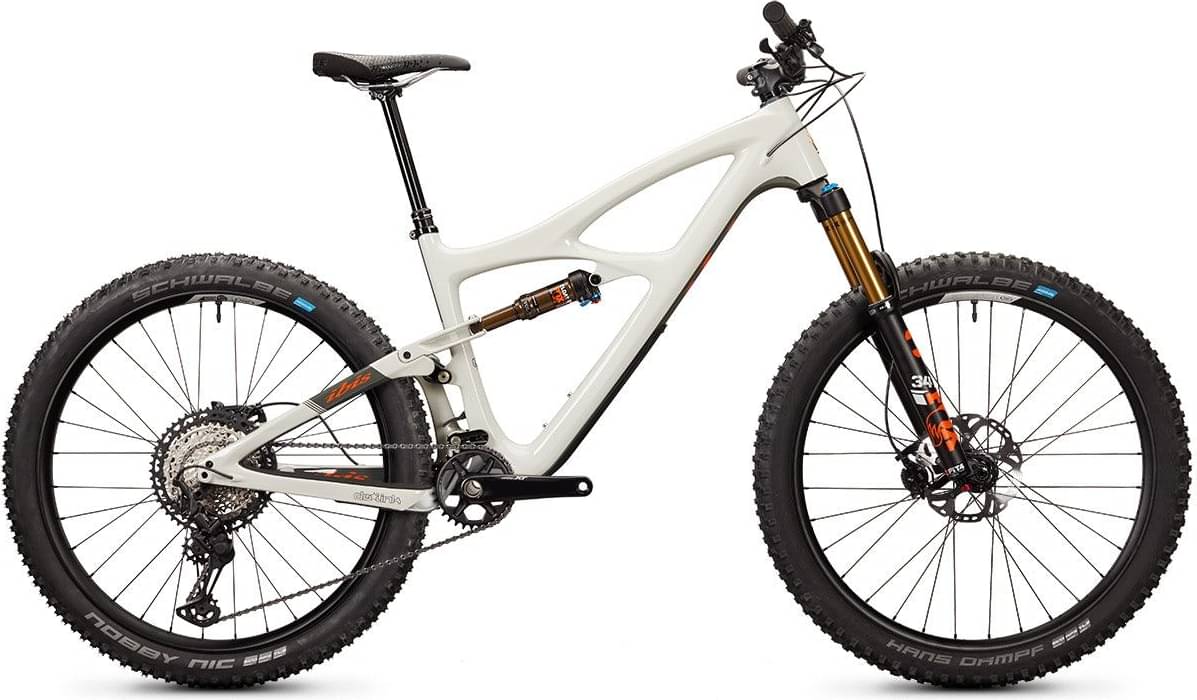

Ibis Mojo XT 2022
2022 Mountain
Estimate price |
6,699$
Weight | 12.11 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Rock Shox Pike Ultimate RC2 140mm, 27.5”, 110x15
Rear Shock
Fox Float Factory Series, DPS with EVOL, 210 x 50 S/M: Light Tune, L/XL: Standard
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow Plus 12 speed
Shift Levers
Shimano XT M8100 12 speed
Cassette
Shimano XT 10-51
Crank
Shimano XT M8100, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded BB (73mm BSA)
Chain
Shimano XT M8100 12 speed
Wheels
Rims
Ibis S35 Aluminum / 27.5" / Ibis Hubs
Tires
Schwalbe Hans Dampf 27.5" x 2.6" Addix Soft Super Trail (front), Schwalbe Nobby Nic 27.5" x 2.6" Addix Speedgrip Super Trail (rear)
Brakes
Brakes
Shimano XT M8100, 2 Piston
Disk Rotors
Shimano SM-RT86 180
Cockpit
Stem
Industry Nine A318 S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 800mm Carbon; Lo-Fi (S–M), Hi Fi Bar (L–XL)
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm | 1.27 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 580 mm | 595 mm | 610 mm | 624 mm |
| Reach | 434 mm | 454 mm | 479 mm | 509 mm |
| Top Tube Length | 574 mm | 597 mm | 626 mm | 660 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 360 mm | 368 mm | 419 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 109 mm | 126 mm | 142 mm | 158 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1160 mm | 1187 mm | 1219 mm | 1256 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 674 mm | 684 mm | 714 mm | 736 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mojo XT is part of the Ibis Mojo model. Ibis launched 76 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ibis Mojo Deore 2022 is the most affordable bike of this model and has a price of 5099$. On the other hand, Ibis Mojo XX1 AXS 2022, is the most expensive and costs 11499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ibis released this model in 2022, its price was 6699$. Comparing this to the average Trail bike price, we see that the price is 142.54% higher.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Ibis Mojo XT it’s weighing 12.11 kg (26.7 lbs). At this weight, is a bit lighter than average. To sum up, it’s 7.18% lighter than the average weight of Trail bikes.
Overview of components
Fork
The RockShox Pike Ultimate is included from the factory. It has a travel distance of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Ibis Mojo XT bike has the Fox Float Factory Series model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Mojo XT bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mojo XT has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
