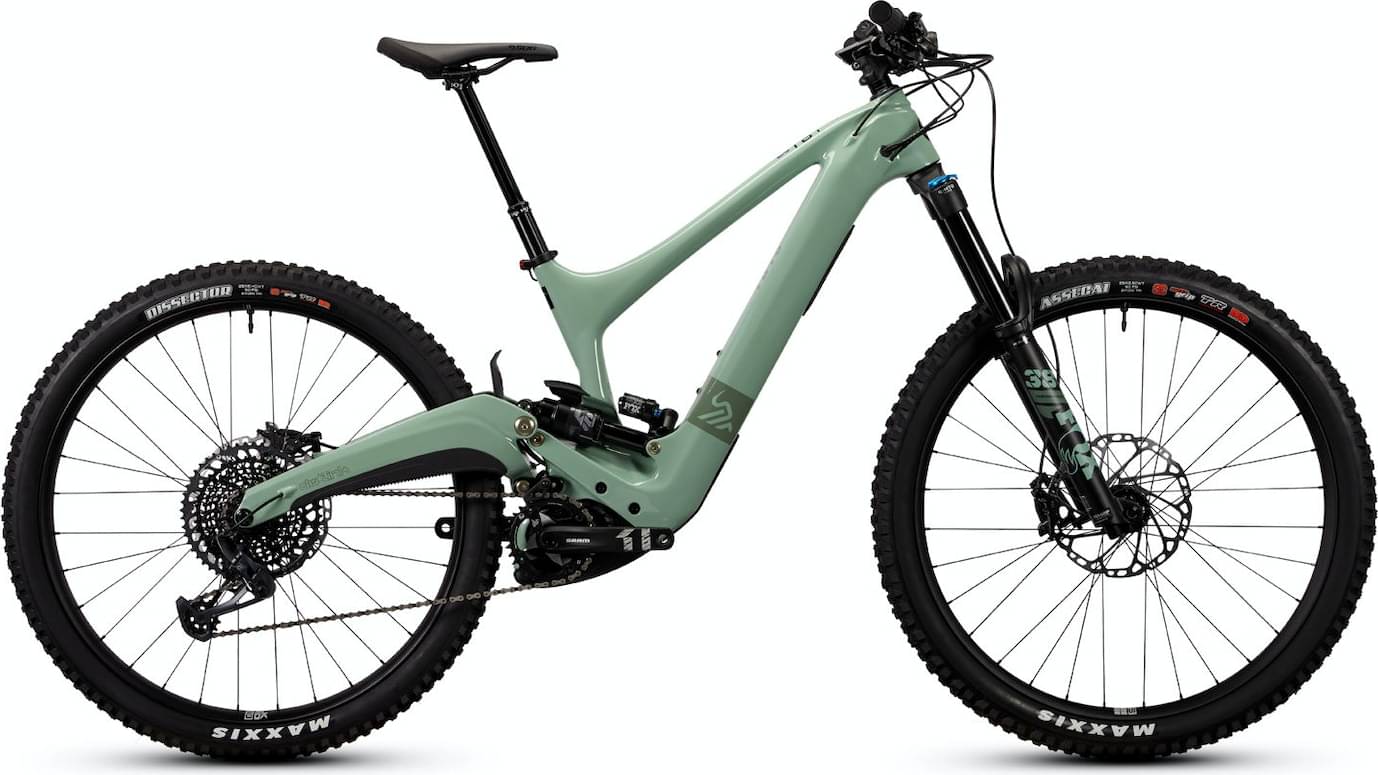

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 155mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle, EX1 -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch 750 Wh Powertube (M/L/XL), 625 Wh Powertube (S) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Performance Series, Float 38, 170mm, 44mm offset, 29", 110x15mm
Rear Shock
Fox Performance Elite Series, X2, 205x60mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX, XG 1275, 10-52
Crank
SRAM EX1 E-Crank, 32T ring, Ibis spider
Bottom Bracket
NA
Chain
SRAM GX Eagle
Chain Guide
Ibis Top Guide
Wheels
Rims
Blackbird Send I/ Send II, Aluminium, Ibis Hubs, SM-MD: F - 29”/R - 27.5”, LG-XL: F/R - 29”
Tires
Front: Maxxis Assegai, 29x2.5", 3C Maxxgrip, Double Down, TR, WT; Rear: Maxxis Aggressor, 29x2.5", 3C Maxxgrip, Double Down, TR, WTSize SM–MD comes with a 27.5x2.5" rear tire.
Brakes
Brakes
Shimano XT M8120, 4 piston
Cockpit
Stem
Ibis 31.8mmS/M: 40mm, L/XL: 50mm
Handlebar
Blackbird Carbon Hi Fi, 800mm
Grips
Lizard Skin Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
SDG Bel-Air, V3
Seatpost
Bike Yoke Revive DropperS: 125mm, M: 160mm, L: 185mm, XL: 213mm. Note there is a 250lb rider weight limit on this post.
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch 750 Wh Powertube (M/L/XL), 625 Wh Powertube (S)
Charger
Bosch Smart System Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.3 mm | 1.23 mm |
| Front Center | 769 mm | 805 mm | 852 mm | 899 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 615 mm | 629 mm | 644 mm | 659 mm |
| Reach | 424 mm | 454 mm | 494 mm | 534 mm |
| Top Tube Length | 567 mm | 601 mm | 632 mm | 663 mm |
| Seat Tube Angle | 77 ° | 77 ° | 78 ° | 79 ° |
| Seat Tube Length | 394 mm | 415 mm | 415 mm | 427 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 106 mm | 122 mm | 139 mm |
| Chainstay Length | 433 mm | 433 mm | 438 mm | 438 mm |
| Wheelbase | 1200 mm | 1236 mm | 1288 mm | 1335 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Standover Height | 671 mm | 708 mm | 723 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Oso GX completes the Ibis E Oso model. Ibis launched 3 e-bikes of this model so far. You can easily view all of the Ibis E Oso e-bikes models from 2023, here.
Model range prices
Ibis Oso GX Transmission 2023 is the most affordable e-bike of this model and has a price of 7999$. On the other hand, Ibis Oso NGX 2023, is the most expensive and costs 10999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Ibis released this model in 2023, its price was 10999$. Comparing this to the average Enduro e-bike price, we see that the price is 129.86% more expensive.
Overview of components
Fork
This e-bike has the Fox Performance Float 38 fork installed. The fork’s travel is 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Performance Elite Series rear shock model, which has a travel of 155mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Oso GX 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Oso GX comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Ibis Oso GX comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
