Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 34 Factory Series 130mm, 29”, 110x15
Rear Shock
Fox Float Factory DPS with EVOL, 190x45 S/M: Light Tune, L/XL: Standard Tune
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 10-50 12 speed
Crank
SRAM Descendant Alloy 175, DUB spindle, 32t Alloy Ring (170mm for S/M, 175mm for L/XL)
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM GX Eagle
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs
Tires
Maxxis DHR2 29" x 2.4" Exo TR (front), Maxxis Dissector 29" x 2.4" Exo TR (rear)
Brakes
Brakes
Shimano SLX M7100, 2 Piston
Disk Rotors
Shimano SM-RT66, 180mm
Cockpit
Stem
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Handlebar
Ibis 800mm Hi Fi Bar
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
Bike Yoke Revive Dropper S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 601 mm | 615 mm | 624 mm | 633 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 576 mm | 605 mm | 632 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 381 mm | 418 mm | 482 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1149 mm | 1180 mm | 1209 mm | 1238 mm |
| Bottom Bracket Drop | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 710 mm | 714 mm | 744 mm | 757 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

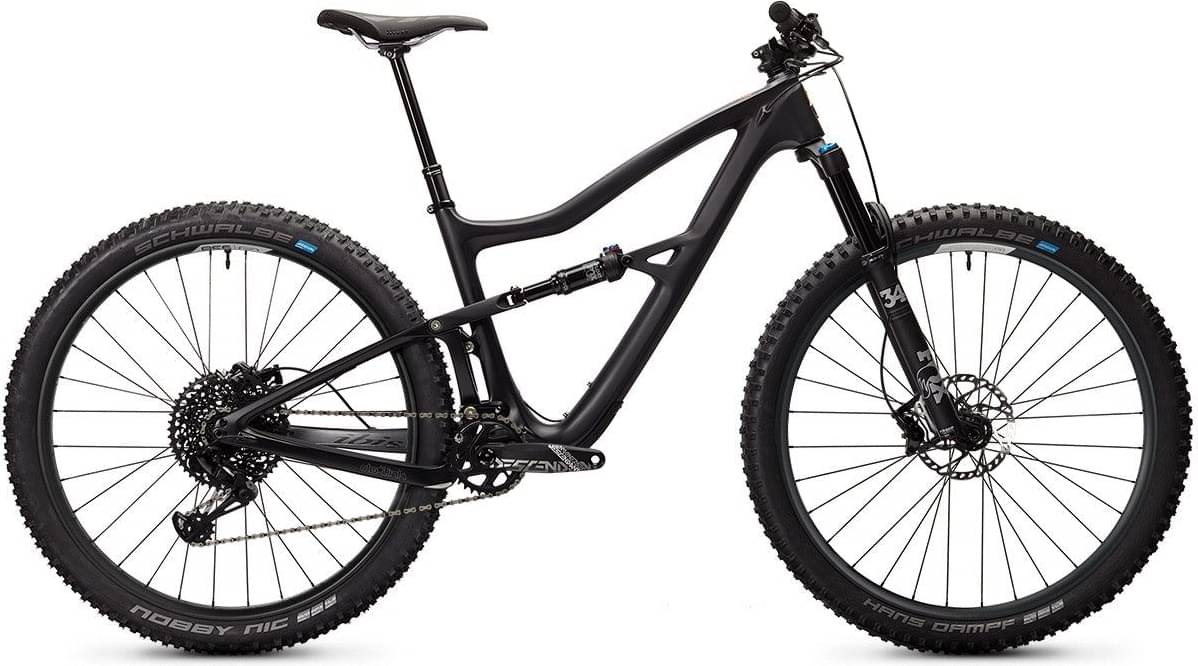

Ripley GX completes the Ibis Ripley model. Ibis released 59 bikes variations of this model so far. You can easily view all of the Ibis Ripley bikes models from 2022, here.
Model range prices
Ibis Ripley AF Deore 2022 is the most economical model, with a starting price of 3799$. Ibis Ripley XX1 AXS 2022 on the other hand costs 11499$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Ibis released this model in 2022, its price was 5899$. Comparing the average cost of a Trail bike to this one, you will see that Ripley GX price is 113.58% more expensive.
Overview of components
Fork
The Ripley GX comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float Factory DPS with EVOL, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Ripley GX 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Ripley GX comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Ripley GX. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
