Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 147mm -
Fork DVO Onyx SC
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
DVO Onyx D1 | 15QRx110 - 160 (29")
Rear Shock
DVO Topaz T3 Air, 210 x 55
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM XG 1275 10-50 12 speed
Crank
SRAM NX Eagle DUB, 30t Alloy Ring S/M: 170mm, L/XL: 175mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM NX Eagle
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs
Tires
Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi
Brakes
Brakes
SRAM G2 R 4p
Disk Rotors
SRAM Centerline 6 bolt 203mm/180mm
Cockpit
Stem
Ibis 31.8mm S/M: 40mm, L/XL: 50mm
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skin Charger
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado 142
Seatpost
KS Rage-i Dropper S: 125mm, M: 150mm, L/XL: 170mm 120, 150 or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 752 mm | 783 mm | 804 mm | 829 mm |
| Rake | 43 mm | 43 mm | 43 mm | 42 mm |
| Trail | 114 mm | 114 mm | 114 mm | 114 mm |
| Stack | 615 mm | 622 mm | 631 mm | 644 mm |
| Reach | 433 mm | 460 mm | 477 mm | 497 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1187 mm | 1218 mm | 1239 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 707 mm | 752 mm | 752 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

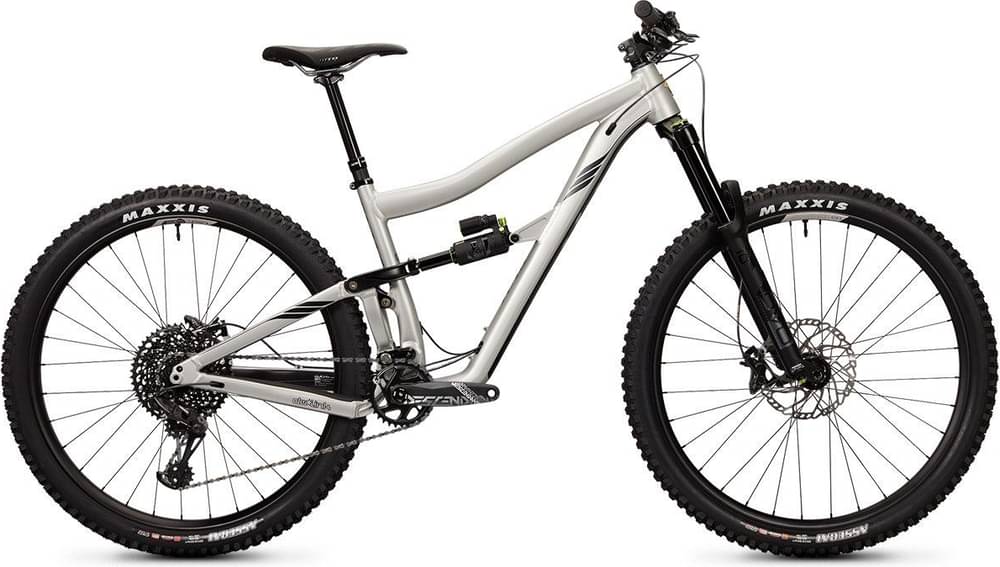

About this model
Ripmo AF NGX completes the Ibis Ripmo model. 69 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Ibis Ripmo AF Deore 2021 has a starting price of 3399$. Ibis Ripmo XX1 AXS 2021 on the other hand is the most expensive at 11699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 3699$. In conclusion, this bike price is 33.92% more expensive than the price of the average Trail bike.
Ripmo AF NGX components
Fork
The DVO Onyx SC is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is DVO Topaz T3 Air, with a travel distance of 147mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Ripmo AF NGX 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ripmo AF NGX has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Ibis Ripmo AF NGX bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Ripmo AF NGX. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
