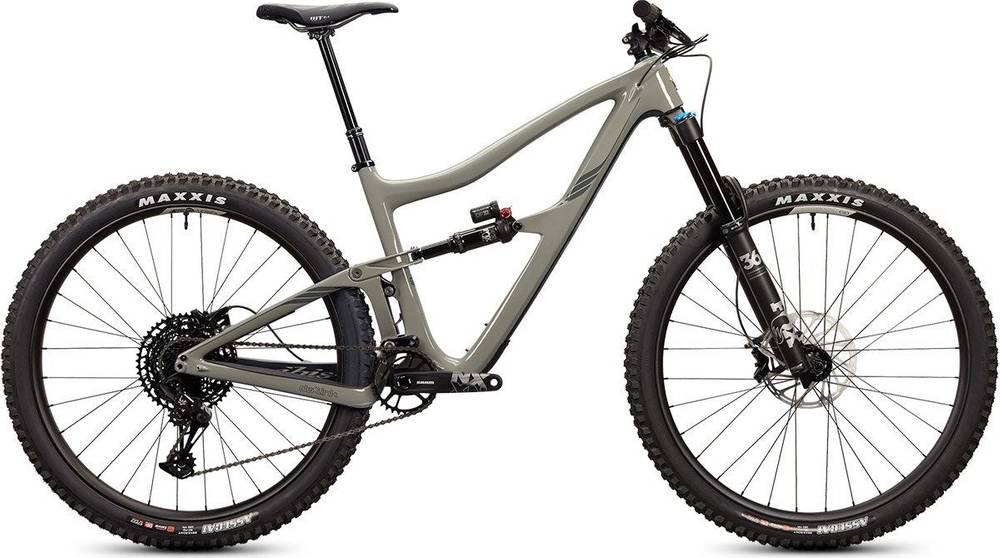

Ibis Ripmo NX 2020
2020 Mountain
Estimate price |
4,399$
Weight | 12.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 147mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front and rear triangle
Suspension Fork
Fox Float 36 Performance Series 160mm, 29”, 110x15
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 210 x 55
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG 1230 11-50T
Crank
SRAM NX Eagle, DUB spindle, 32t Steel Ring (170mm for S/M, 175mm for L/XL)
Bottom Bracket
Threaded (73mm BSA)
Chain
SRAM NX Eagle
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs
Tires
Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi
Brakes
Brakes
SRAM Guide T 4p
Disk Rotors
SRAM Centerline 200/180 rotors
Cockpit
Stem
Ibis 31.8mm (40, 50, 60, 70, 80, 90mm)
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skins Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado Pro 142mm width
Seatpost
KS Rage-i Dropper (125, 150 or 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 754 mm | 786 mm | 805 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 611 mm | 621 mm | 630 mm | 642 mm |
| Reach | 435 mm | 462 mm | 477 mm | 502 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1189 mm | 1221 mm | 1240 mm | 1269 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 705 mm | 735 mm | 742 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ripmo NX is an Ibis Ripmo model. 69 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Ibis Ripmo AF NX 2020 is the cheapest bike model and costs 2999$. Ibis Ripmo XX1 AXS 2020 is the most expensive one and costs 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4399$. Comparing this to the average Trail bike price, we see that the price is 59.27% more expensive.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Ibis Ripmo NX it’s weighing 12.79 kg (28.2 lbs). At this weight, is slightly lighter than average. In short, the average Trail bike weight is 1.49% higher than this one.
Overview of components
Fork
The Ripmo NX comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Fox Float Performance Series rear shock model, which has a travel of 147mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Ripmo NX model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Ripmo NX comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Ibis model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
