Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 145mm -
Fork Fox Performance Float 36
-
Groupset NX, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber Monocoque
Suspension Fork
Fox Float 36 Performance Series 160mm, 29”, 110x15
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 210 x 55
Drivetrain
Rear Derailleur
SRAM Eagle NX 12 Speed
Shift Levers
SRAM NX 12 Speed
Cassette
SRAM PG 1230 11-50T
Crank
SRAM NX Eagle, DUB spindle, 30t Steel Ring
Bottom Bracket
SRAM DUB BSA
Chain
SRAM Eagle NX with Power Lock, 12 speed
Wheels
Rims
938 Alloy, Ibis Hubs
Tires
Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi
Brakes
Brakes
SRAM Guide T
Disk Rotors
SRAM Centerline 200mm front, 180mm rear
Cockpit
Stem
Ibis 31.8mm (50, 60, 70, 80, 90mm)
Handlebar
Ibis 780mm Alloy
Grips
Lizard Skins Charger Evo
Headset
Cane Creek 40 ZS44/ZS56
Seat
Saddle
WTB Silverado 142
Seatpost
KS E30i Dropper (125 or 150mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.39 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Trail | 118 mm | 118 mm | 118 mm | 118 mm |
| Stack | 615 mm | 622 mm | 631 mm | 644 mm |
| Reach | 433 mm | 448 mm | 473 mm | 495 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 368 mm | 418 mm | 470 mm |
| Head Tube Angle | 65.9 ° | 65.9 ° | 65.9 ° | 65.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1179 mm | 1197 mm | 1222 mm | 1251 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 707 mm | 752 mm | 752 mm | 762 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

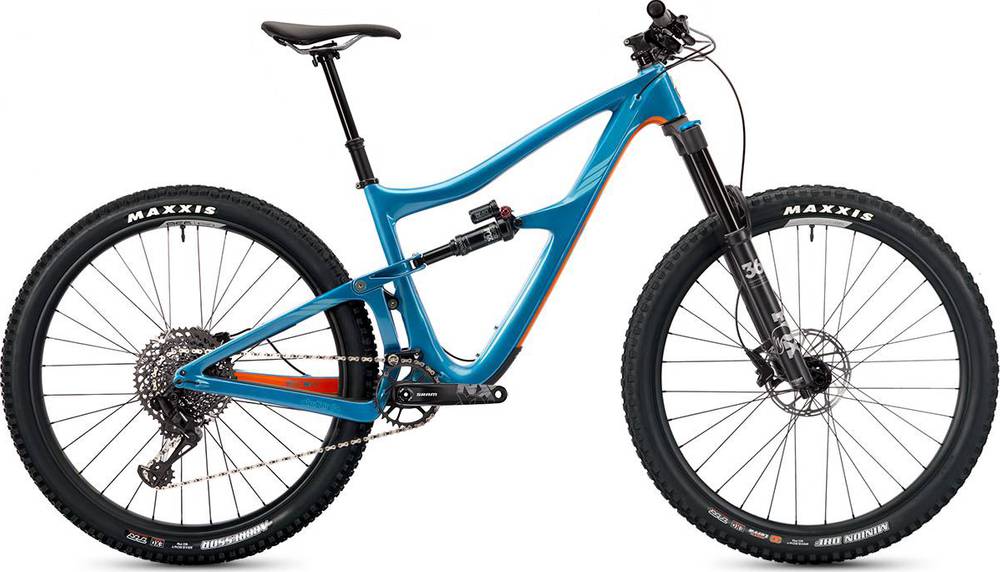

Ripmo NX Eagle completes the Ibis Ripmo model. 69 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ibis Ripmo AF NX 2020 has a starting price of 2999$. Ibis Ripmo XX1 AXS 2020 on the other hand is the most expensive at 10999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 4399$. In conclusion, this bike price is 59.27% more expensive than the price of the average Trail bike.
Ripmo NX Eagle components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float Performance Series model, with a travel of 145mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Ibis Ripmo NX Eagle 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ripmo NX Eagle has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Ibis model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
