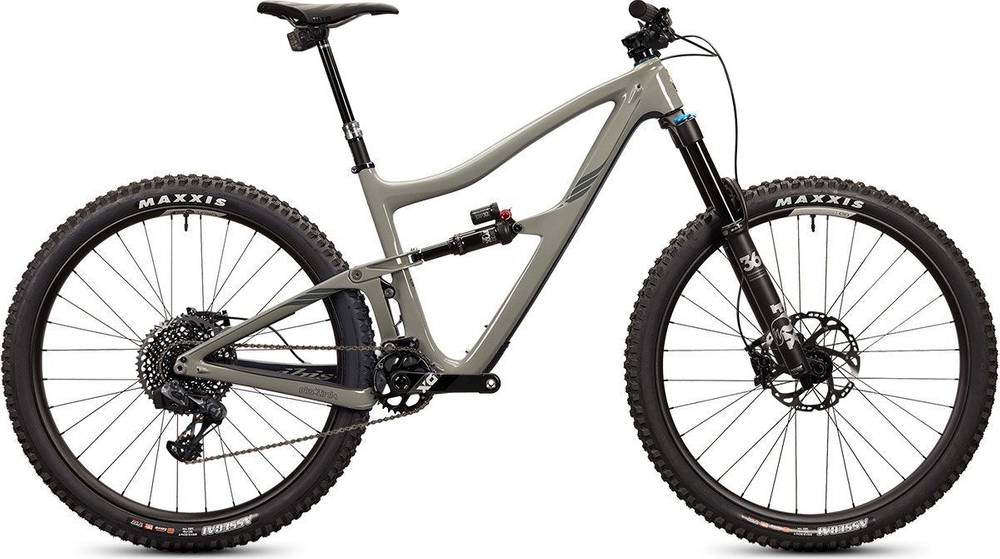

Ibis Ripmo X01 AXS 2020
2020 Mountain
Estimate price |
8,299$
Weight | 12.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 147mm -
Fork Fox Performance Float 36
-
Groupset X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon front and rear triangle
Suspension Fork
Fox Float 36 Performance Series 160mm, 29”, 110x15
Rear Shock
Fox Float Performance Series, DPX2 with EVOL, 210 x 55
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS
Shift Levers
SRAM X01 AXS 2 Button Eagle Triggers
Cassette
SRAM XG 1295 EAGLE 10-50T
Crank
SRAM X01 Eagle, DUB spindle, 32t Alloy Ring (170mm or 175mm)
Bottom Bracket
Threaded (73mm BSA)
Chain
SRAM X01 EAGLE Powerlock 12 speed chain
Wheels
Rims
Ibis S35 Aluminum / 29" / Ibis Hubs
Tires
Maxxis Assegai 29” x 2.5” WT, EXO+ casing, 120tpi
Brakes
Brakes
Shimano XT M8120 4p
Disk Rotors
Shimano SM-RT86 200/180
Cockpit
Stem
Thomson Elite X4 Stem (40, 50, 60, 70, 80, 90, 100, 110)
Handlebar
Ibis 800mm Carbon (30mm rise)
Grips
Lizard Skins Charger Evo
Headset
ZS44 upper / ZS56 lower
Seat
Saddle
WTB Silverado Pro 142mm width
Seatpost
SRAM Reverb AXS Dropper (125, 150 or 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 754 mm | 786 mm | 805 mm | 834 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 611 mm | 621 mm | 630 mm | 642 mm |
| Reach | 435 mm | 462 mm | 477 mm | 502 mm |
| Top Tube Length | 575 mm | 605 mm | 634 mm | 657 mm |
| Seat Tube Angle | 77 ° | 77 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 432 mm | 483 mm |
| Head Tube Angle | 64.9 ° | 64.9 ° | 64.9 ° | 64.9 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1189 mm | 1221 mm | 1240 mm | 1269 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 705 mm | 735 mm | 742 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ripmo X01 AXS is part of the Ibis Ripmo model. Ibis released 69 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ibis Ripmo AF NX 2020 has a starting price of 2999$. Ibis Ripmo XX1 AXS 2020 on the other hand is the most expensive at 10999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 8299$. Comparing this to the average Trail bike price, we see that the price is 200.47% more expensive.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Ripmo X01 AXS weighs 12.79 kg (28.2 lbs) and is slightly lighter than the average. In conclusion, the average Trail bike weighs 1.49% more than Ripmo X01 AXS.
Overview of components
Fork
The Ripmo X01 AXS comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float Performance Series, with a travel distance of 147mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Ripmo X01 AXS model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Ibis Ripmo X01 AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Ibis Ripmo X01 AXS bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
