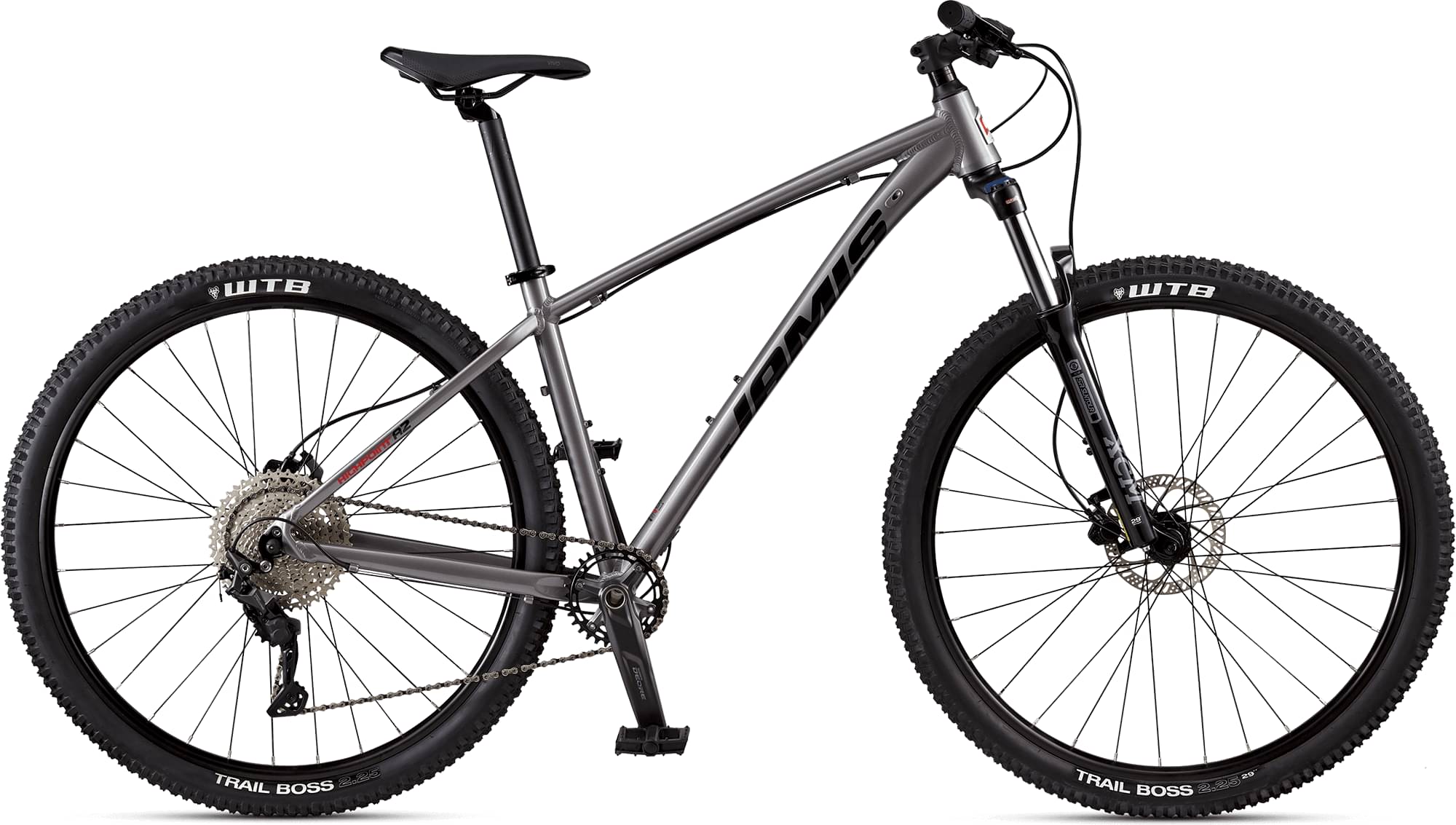

Jamis HIGHPOINT A2 2023
2023 Mountain
Estimate price |
999$
Weight | 14.86 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061triple-butted aluminum main tubes, 1.5 – 1 1/8” tapered head tube, over-sized stays, replaceable derailleur hanger
Suspension Fork
SR Suntour XCM 32 HLO 29”, coil spring, hydraulic speed lock out adjust, external preload adjustor, 32mm stanchions, aluminum lowers, 15x100mm axle, 120mm travel, 51mm rake
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus rear, 10-speed
Shift Levers
Shimano Deore, 1×10-speed
Cassette
Shimano M4100, 10-speed, 11-42T
Crank
Shimano Deore, 32T
Bottom Bracket
Shimano BSA
Chain
KMC X10, 10-speed
Pedals
MTB platform, hi-impact resin
Wheels
Rims
WTB STX i23 TCS tubeless 29” rims, 32H, alloy disc hubs, 14G black electroplated spokes
Tires
WTB Trailboss, 29 x 2.25”
Brakes
Brakes
Tektro M275 hydraulic disc, 160mm rotors
Cockpit
Stem
Jamis XC alloy threadless, 31.8 x 60mm
Handlebar
Jamis XC alloy riser, 31.8 x 20mm rise x 740mm
Grips
Kraton
Headset
Zero-stack internal cup, 15mm cone spacer
Seat
Saddle
Selle Royal Vivo
Seatpost
Jamis alloy micro-adjust, 31.6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.52 mm | 1.47 mm | 1.42 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 693 mm | 719 mm | 745 mm | 770 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 629 mm | 638 mm | 647 mm | 657 mm |
| Reach | 397 mm | 419 mm | 441 mm | 464 mm |
| Top Tube Length | 579 mm | 604 mm | 629 mm | 654 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1120 mm | 1146 mm | 1172 mm | 1198 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 757 mm | 793 mm | 830 mm | 862 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
HIGHPOINT A2 is part of the Jamis Highpoint model. Jamis launched 10 bikes of this model so far. Take a sneak peek at all Jamis Highpoint bikes models from 2023, by clicking here.
Model range prices
Jamis HIGHPOINT A2 2023 is the cheapest bike model and costs 999$. Jamis HIGHPOINT A1 2023 is the most expensive one and costs 1249$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 999$. Comparing this to the average Trail bike price, we see that the price is 176.48% lower.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, HIGHPOINT A2 has a weight of 14.86 kg (32.76 lbs). To sum up, it’s 14.48% heavier than the average weight of Trail bikes.
HIGHPOINT A2 components
Fork
This bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the HIGHPOINT A2 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
