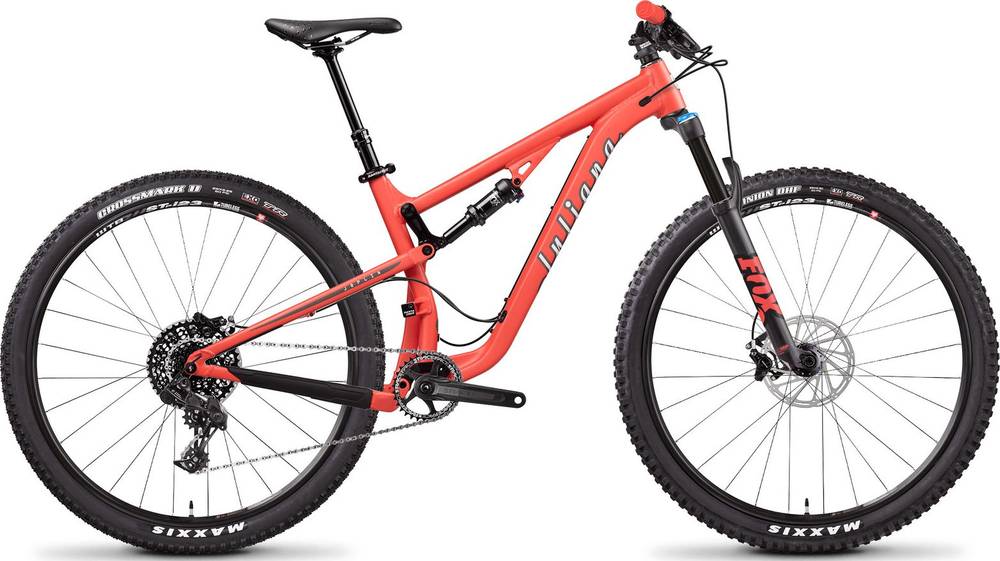

Juliana Joplin Aluminum R 29 2018
2018 Mountain
Estimate price |
3,299$
Weight | 13.64 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Rhythm
Rear Shock
FOX Float Performance DSP
Drivetrain
Rear Derailleur
SRAM NX, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 12-speed
Cassette
SRAM XG1150, 12-speed, 10-42 tooth
Crank
Race Face Aeffect
Bottom Bracket
Threaded, 73mm, included with crankset
Chain
SRAM PC1110
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, Rear: Novatec D462, 12mm x 148mm
Rear Hub
Front: Novatec D711, 15mm x 110mm, Rear: Novatec D462, 12mm x 148mm
Rims
WTB ST i29
Spokes
DT Swiss Competition
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Crossmark II, 2.25", EXO, TR
Brakes
Brakes
SRAM Level T with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm clamp diameter, 760mm width
Grips
Juliana single-sided lock on
Headset
Cane Creek 10, IS
Seat
Saddle
Juliana Segundo
Seatpost
Race Face Aeffect, 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm |
| Reach | 412 mm | 437 mm | 457 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Joplin Aluminum R 29 is a Juliana Joplin model. There are 46 bikes that carry this model name. Take a sneak peek at all Juliana Joplin bikes models from 2018, by clicking here.
Model range prices
Juliana Joplin Aluminum D 29 2018 is the most affordable bike of this model and has a price of 2699$. On the other hand, Juliana Joplin Carbon CC XX1 27.5+ 2018, is the most expensive and costs 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Juliana Joplin Aluminum R 29 price was 3299$. Comparing this to the average Trail bike price, we see that the price is 19.44% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, Joplin Aluminum R 29 has a weight of 13.64 kg (30.07 lbs). In short, the average Trail bike weight is 5.08% lower than this one.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX Float Performance DSP model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Joplin Aluminum R 29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Juliana Joplin Aluminum R 29 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Juliana Joplin Aluminum R 29 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Joplin Aluminum R 29. Therefore, climbing or descending will be a breeze.
