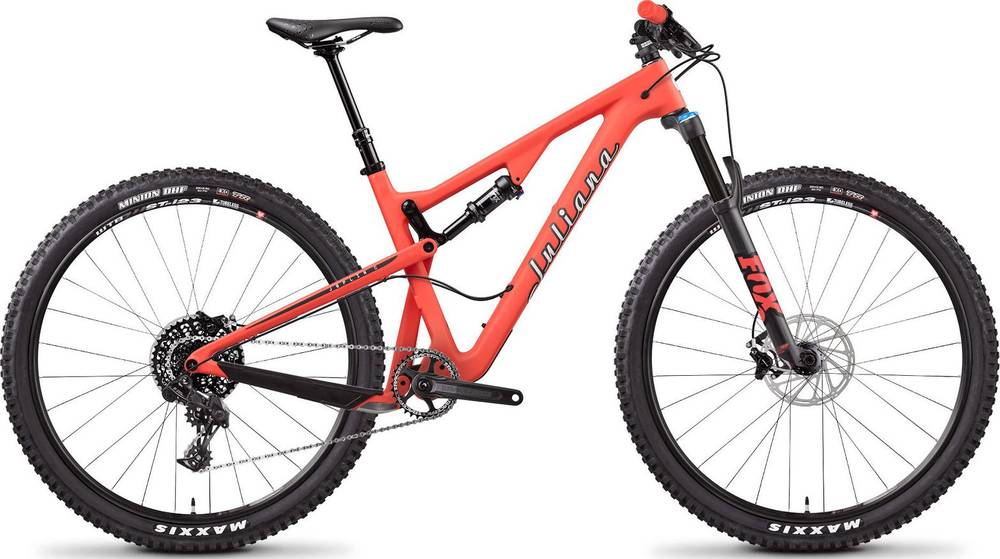

Juliana Joplin C R 29 2018
2018 Mountain
Estimate price |
3,899$
Weight | 13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Rhythm
Rear Shock
FOX Float Performance DSP
Drivetrain
Rear Derailleur
SRAM NX, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 12-speed
Cassette
SRAM XG1150, 12-speed, 10-42 tooth
Crank
Race Face Aeffect
Bottom Bracket
Threaded, 73mm, included with crankset
Chain
SRAM PC1110
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, Rear: Novatec D462, 12mm x 148mm
Rear Hub
Front: Novatec D711, 15mm x 110mm, Rear: Novatec D462, 12mm x 148mm
Rims
WTB ST i29
Spokes
DT Swiss Competition
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Crossmark II, 2.25", EXO, TR
Brakes
Brakes
SRAM Level T with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm clamp diameter, 760mm width
Grips
Juliana single-sided lock on
Headset
Cane Creek 10, IS
Seat
Saddle
Juliana Segundo
Seatpost
Race Face Aeffect, 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm |
| Reach | 412 mm | 437 mm | 457 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Joplin C R 29 is a Juliana Joplin model. Juliana launched 46 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Juliana Joplin Aluminum D 29 2018 has a starting price of 2699$. Juliana Joplin Carbon CC XX1 27.5+ 2018 on the other hand is the most expensive at 9999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Juliana released this model in 2018, its price was 3899$. Comparing this to the average Trail bike price, we see that the price is 41.17% more expensive.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 13 kg (28.66 lbs), the Joplin C R 29 model is slightly heavier than average. To sum up, it’s 0.15% heavier than the average weight of Trail bikes.
Overview of components
Fork
This bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float Performance DSP rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Juliana Joplin C R 29 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Juliana Joplin C R 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Juliana Joplin C R 29 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Juliana model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
