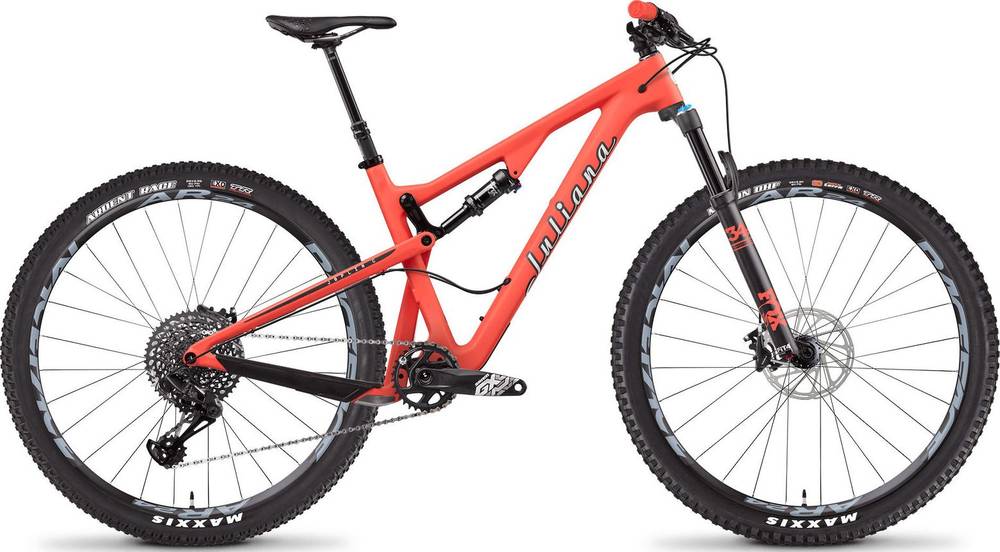

Juliana Joplin C S 29 2018
2018 Mountain
Estimate price |
4,799$
Weight | 12.84 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Performance
Rear Shock
FOX Float Performance DSP
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG1275, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle, 12-speed
Bottom Bracket
Threaded, 73mm, included with crankset
Chain
SRAM GX Eagle, 12-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D641, 15mm x 110mm, Rear: Novatec D642, 12mm x 148mm
Rear Hub
Front: Novatec D641, 15mm x 110mm, Rear: Novatec D642, 12mm x 148mm
Rims
Race Face AR 24
Spokes
DT Swiss Competition
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Ardent Race, 2.35", EXO, TR
Brakes
Brakes
SRAM Guide R with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Guide R
Cockpit
Stem
Race Face Aeffect R, 50mm
Handlebar
Race Face Ride, 35mm clamp diameter, 760mm width
Grips
Juliana single-sided lock on
Headset
Cane Creek 40, IS
Seat
Saddle
Juliana Segundo
Seatpost
RockShox Reverb Stealth, 100mm (S), 125mm (M), 150mm (L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm |
| Reach | 412 mm | 437 mm | 457 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1153 mm | 1172 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Joplin C S 29 completes the Juliana Joplin model. Juliana launched 46 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Juliana Joplin Aluminum D 29 2018 has a starting price of 2699$. Juliana Joplin Carbon CC XX1 27.5+ 2018 on the other hand is the most expensive at 9999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Juliana released this model in 2018, its price was 4799$. If we compare this with the average Trail bike cost we notice that the price is 73.75% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.84 kg (28.31 lbs), the Joplin C S 29 model is slightly lighter than average. In short, the average Trail bike weight is 1.09% higher than this one.
Joplin C S 29 components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float Performance DSP rear shock model, which has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Joplin C S 29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Joplin C S 29 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Joplin C S 29 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Joplin C S 29. Therefore, climbing or descending will be a breeze.
