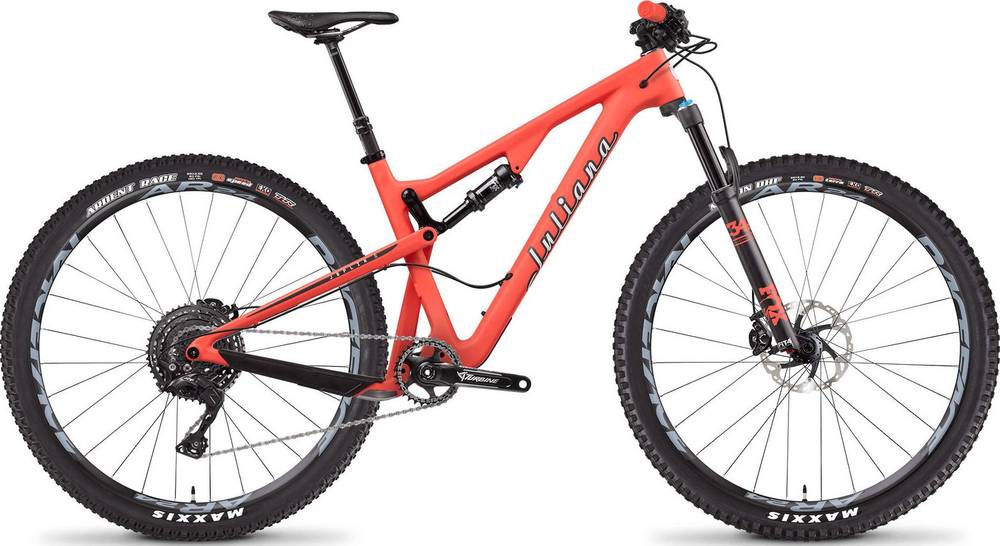

Juliana Joplin C XE 29 2018
2018 Mountain
Estimate price |
5,499$
Weight | 12.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Performance Elite
Rear Shock
FOX Float Performance Elite DPS
Drivetrain
Rear Derailleur
Shimano XT M8000, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XT M8000, 11-speed
Cassette
e*thirteen TRS Race, 11-speed, 9-46 tooth
Crank
Race Face Turbine
Bottom Bracket
Threaded, 73mm, included with crankset
Chain
Shimano SLX M7000
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D641, 15mm x 110mm, Rear: Novatec D642, 12mm x 148mm
Rear Hub
Front: Novatec D641, 15mm x 110mm, Rear: Novatec D642, 12mm x 148mm
Rims
Race Face AR 24
Spokes
DT Swiss Competition
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Ardent Race, 2.35", EXO, TR
Brakes
Brakes
Shimano XT M8000 with RT86 Ice Tech 180mm rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Race Face Aeffect R, 50mm
Handlebar
Santa Cruz Carbon, 35mm clamp diameter, 760mm width
Grips
Juliana single-sided lock on
Headset
Cane Creek 40, IS
Seat
Saddle
Juliana Primeiro
Seatpost
RockShox Reverb Stealth, 100mm (S), 125mm (M), 150mm (L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm |
| Reach | 412 mm | 437 mm | 457 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1153 mm | 1172 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Joplin C XE 29 is part of the Juliana Joplin model. Juliana released 46 bikes variations of this model so far. Take a sneak peek at all Juliana Joplin bikes models from 2018, by clicking here.
Model range prices
Juliana Joplin Aluminum D 29 2018 is the cheapest bike model and costs 2699$. Juliana Joplin Carbon CC XX1 27.5+ 2018 is the most expensive one and costs 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Juliana Joplin C XE 29 price was 5499$. In conclusion, this bike price is 99.09% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.15 kg (26.79 lbs), the Joplin C XE 29 model is a bit lighter than average. To sum up, it’s 6.83% lighter than the average weight of Trail bikes.
Joplin C XE 29 components
Fork
This bike has the Fox Performance Elite Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float Performance Elite DPS rear shock model, which has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Joplin C XE 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Joplin C XE 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Joplin C XE 29. Therefore, climbing or descending will be a breeze.
