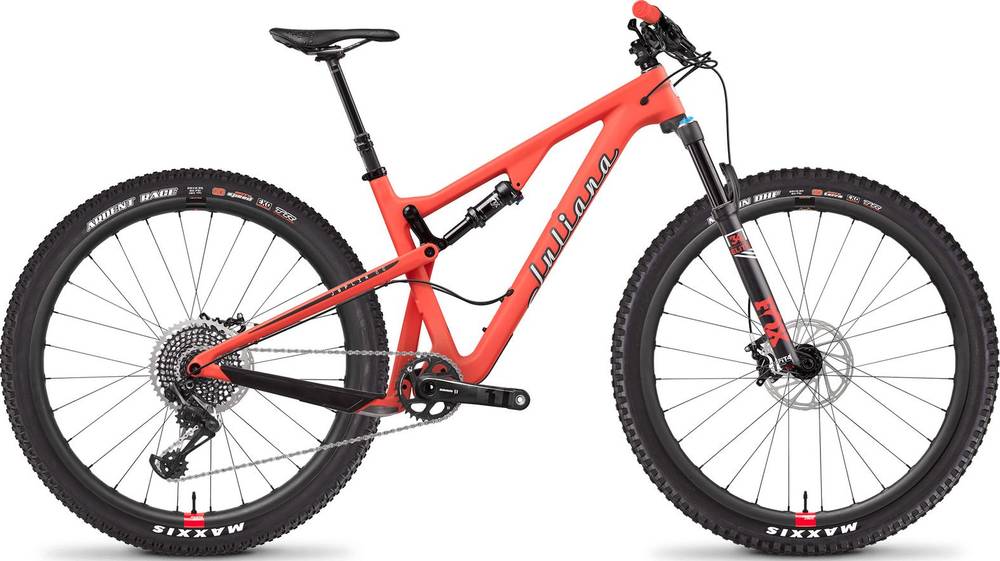

Juliana Joplin CC X01 29 2018
2018 Mountain
Estimate price |
7,999$
Weight | 11.87 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Performance Elite
Rear Shock
FOX Float Performance Elite DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG1295, 12-speed, 10-50 tooth
Crank
SRAM X1 Eagle Carbon
Bottom Bracket
included with crankset
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: DT Swiss 350, 15mm x 110mm, Rear: DT Swiss 350, 12mm x 148mm
Rear Hub
Front: DT Swiss 350, 15mm x 110mm, Rear: DT Swiss 350, 12mm x 148mm
Rims
Standard: Race Face ARC 24, Upgrade: Santa Cruz Reserve Carbon
Spokes
DT Swiss Competition
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Ardent Race, 2.35", 3c, EXO, TR
Brakes
Brakes
SRAM Level TLM with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level TLM
Cockpit
Stem
Easton Haven, 55mm
Handlebar
Santa Cruz Carbon, 31.8mm clamp diameter, 750mm width, flat
Grips
Juliana single-sided lock on
Headset
Cane Creek 40, IS
Seat
Saddle
Juliana Premeiro
Seatpost
RockShox Reverb Stealth, 100mm (S), 125mm (M), 150mm (L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm |
| Reach | 412 mm | 437 mm | 457 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1153 mm | 1172 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Joplin CC X01 29 completes the Juliana Joplin model. There are 46 bikes that carry this model name. Take a sneak peek at all Juliana Joplin bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Juliana Joplin Aluminum D 29 2018 has a starting price of 2699$. Juliana Joplin Carbon CC XX1 27.5+ 2018 on the other hand is the most expensive at 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Juliana released this model in 2018, its price was 7999$. In conclusion, this bike price is 189.61% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Juliana Joplin CC X01 29 it’s weighing 11.87 kg (26.17 lbs). At this weight, is a bit lighter than average. In conclusion, the average Trail bike weighs 9.35% more than Joplin CC X01 29.
Overview of components
Fork
This bike has the Fox Performance Elite Float 34 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float Performance Elite DPS model, with a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Joplin CC X01 29 bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Joplin CC X01 29 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Juliana model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
