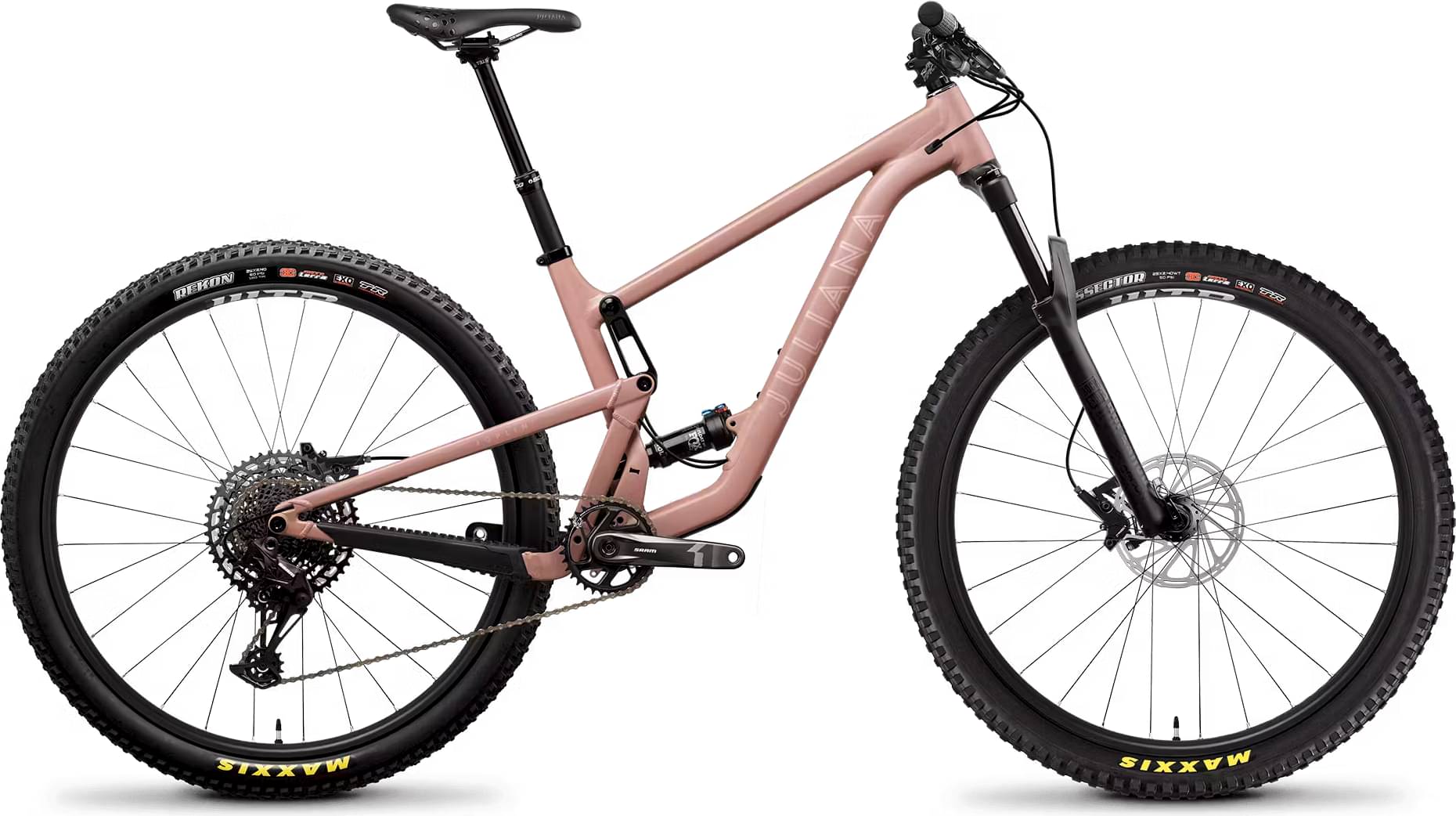

Juliana JOPLIN D / AL 2023
2023 Mountain
Estimate price |
4,415$
Weight | 15.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JOPLIN D / AL
Suspension Fork
RockShox Recon RL, 130mm
Rear Shock
Fox Float Performance
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM X1 Eagle 148 DUB, 30t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM SX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
Front: WTB ST i30 TCS 2.0 29" Rims, Rear: WTB ST i30 TCS 2.0 29" Rims
Tires
Front: Maxxis Dissector, 29"x2.4, 3C, EXO, MaxxTerra, TR, Rear: Maxxis Rekon, 29"x2.5WT, 3C. EXO, MaxxTerra, TR
Brakes
Brakes
SRAM Level
Cockpit
Stem
RaceFace Chester
Handlebar
RaceFace Ride
Grips
Juliana House Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
Juliana Segundo Saddle
Seatpost
SDG Tellis Dropper, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 699 mm | 698 mm | 728 mm | 727 mm | 757 mm | 757 mm |
| Rake | 41 mm | 40 mm | 41 mm | 40 mm | 40 mm | 41 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 125 mm | 126 mm |
| Stack | 596 mm | 597 mm | 605 mm | 607 mm | 614 mm | 616 mm |
| Reach | 404 mm | 402 mm | 429 mm | 427 mm | 454 mm | 452 mm |
| Top Tube Length | 543 mm | 544 mm | 571 mm | 572 mm | 600 mm | 601 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1133 mm | 1132 mm | 1162 mm | 1161 mm | 1191 mm | 1191 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 685 mm | 682 mm | 700 | 696 mm | 712 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 175 cm | 175 cm |
Model Overview
JOPLIN D / AL is a Juliana Joplin model. 48 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Juliana JOPLIN D / AL 2023 is the most affordable bike of this model and has a price of 4018$. On the other hand, Juliana JOPLIN X01 AXS RSV / Carbon CC 2023, is the most expensive and costs 10049$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4018$. Doing a quick comparison, we notice that JOPLIN D / AL price is 45.47% more expensive than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
JOPLIN D / AL weighs 15.72 kg (34.66 lbs) and is much heavier than the average. In conclusion, the average Trail bike weighs 21.11% less than JOPLIN D / AL.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Float Performance rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the JOPLIN D / AL model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The JOPLIN D / AL has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 142 cm – 175 cm (4.66 ft – 5.74 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the JOPLIN D / AL. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
