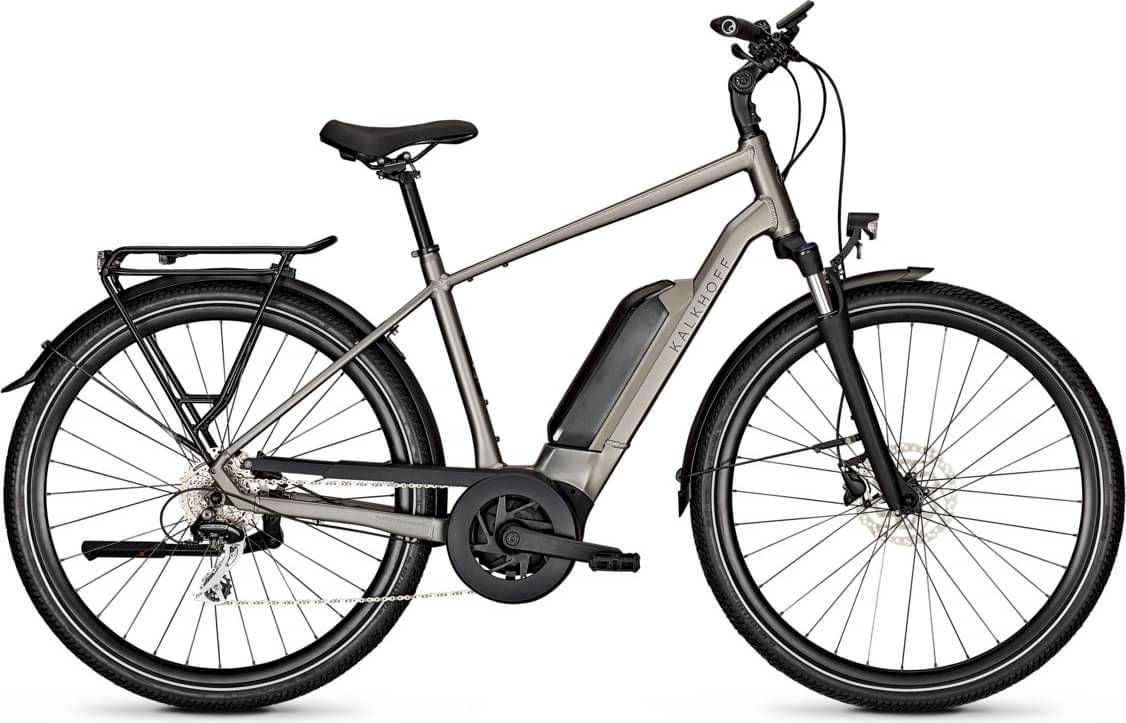

kalkhoff ENDEAVOUR 1.B MOVE Trapez 2023
2023 E-bike
Estimate price |
3,880$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36 V -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
Suntour NEX E25 HLO 50mm
Rear Shock
No
Drivetrain
Rear Derailleur
Shimano Acera
Shift Levers
Shimano Altus
Crank
aluminium
Bottom Bracket
No
Chain
KMC X8
Pedals
Aluminium, with anti slip protection and reflector
Wheels
Front Hub
KT TC7F, Centerlock
Rear Hub
KT TC7R, Centerlock, 10-speed
Rims
High Profile, with eyelets, aluminum
Tires
CST Platinum, 50-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal TCM
Seatpost
Concept EX, aluminium
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerPack Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm | mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm | mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm | mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm | mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm | mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm | mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° | ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° | ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm | mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm | mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
ENDEAVOUR 1.B MOVE Trapez belongs to the Kalkhoff E Endeavour model. Kalkhoff released 46 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Kalkhoff ENDEAVOUR 1.B MOVE Wave 2023 has a starting price of 3526$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Diamond 2023 on the other hand is the most expensive at 6324$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Kalkhoff ENDEAVOUR 1.B MOVE Trapez price was 3526$. Comparing this to the average Commuter e-bike price, we see that the price is 37.25% higher.
ENDEAVOUR 1.B MOVE Trapez components
Fork
Kalkhoff ENDEAVOUR 1.B MOVE Trapez 2023 e-bike is equipped with the Suntour NEX fork, and has 50mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The ENDEAVOUR 1.B MOVE Trapez 2023 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ENDEAVOUR 1.B MOVE Trapez comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
