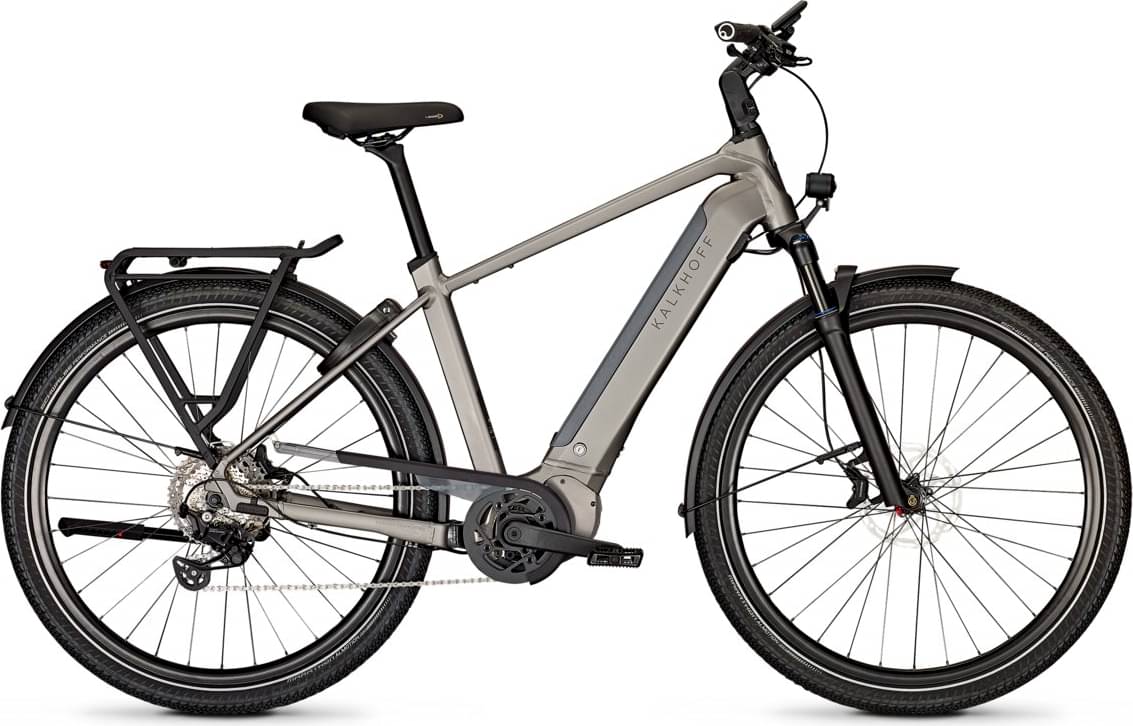

kalkhoff ENDEAVOUR 5 ADVANCE+ Wave 2023
2023 E-bike
Estimate price |
5,486$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6 CX, Aluminium
Suspension Fork
Suntour Mobie34 Air, 15 mm thru axle
Rear Shock
No
Drivetrain
Rear Derailleur
Shimano Deore M5130
Shift Levers
Shimano Deore
Crank
aluminium
Bottom Bracket
No
Chain
Shimano CN-LG500
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Shimano Alivio MT400, 15x100 mm with QR
Rear Hub
Shimano Alivio MT400, 12x142 mm thru axle
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Marathon Almotion Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin
Seatpost
Aluminium, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.682 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 668 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 70 mm | 70 mm | 70 mm |
| Stack | 660 mm | 667 mm | 676 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1155 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
ENDEAVOUR 5 ADVANCE+ Wave is a Kalkhoff E Endeavour model. There are 46 e-bikes that carry this model name. Take a sneak peek at all Kalkhoff E Endeavour e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Wave 2023 is the most affordable e-bike of this model and has a price of 3526$. On the other hand, Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Diamond 2023, is the most expensive and costs 6324$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 4986$. Comparing the average cost of a Commuter e-bike to this one, you will see that ENDEAVOUR 5 ADVANCE+ Wave price is 94.08% more expensive.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Kalkhoff ENDEAVOUR 5 ADVANCE+ Wave 2023, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kalkhoff ENDEAVOUR 5 ADVANCE+ Wave is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
