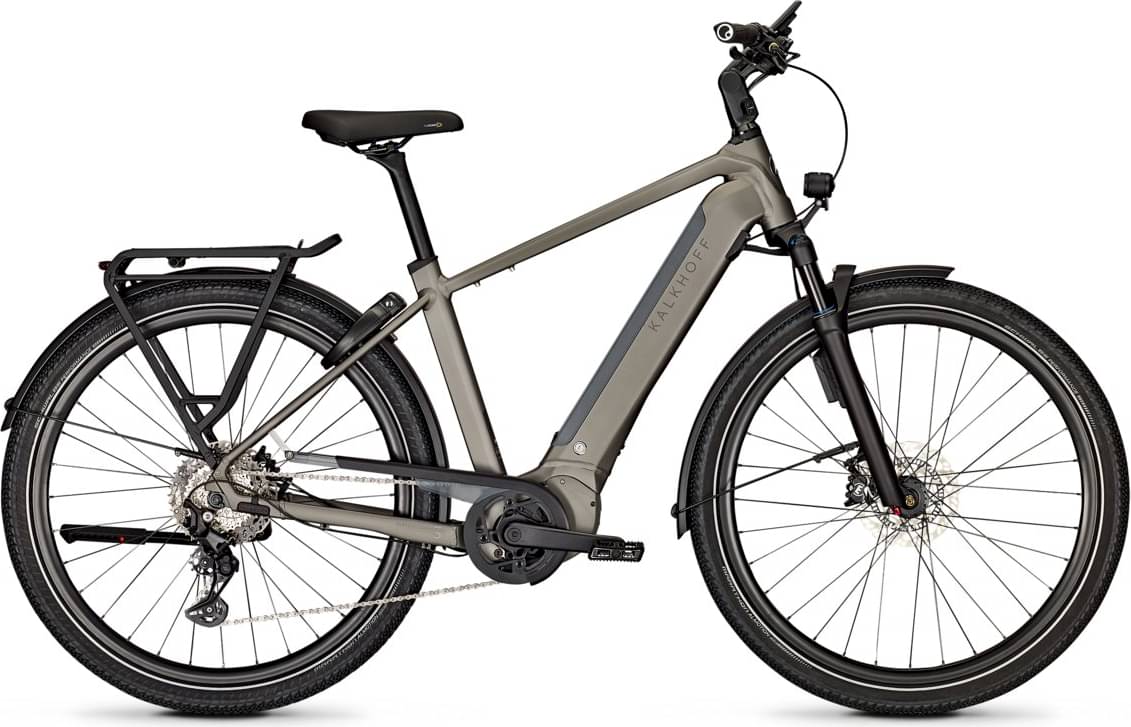

kalkhoff ENDEAVOUR 5.B ADVANCE+ ABS Trapez 2023
2023 E-bike
Estimate price |
6,155$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6 CX, Aluminium
Suspension Fork
Suntour Mobie34, 100x15 mm Steckachse, ABS
Drivetrain
Rear Derailleur
Shimano Deore M5130
Shift Levers
Shimano Deore
Crank
aluminium
Chain
Shimano CN-LG500
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Thru axle, 15x100 mm
Rear Hub
Shimano Alivio MT400, 12x142 mm thru axle
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Marathon Almotion Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin
Seatpost
Aluminium, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.689 mm | 1.682 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 654 mm | 668 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 67 mm | 70 mm | 70 mm | 70 mm |
| Stack | 660 mm | 669 mm | 676 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 601 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1140 mm | 1155 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
ENDEAVOUR 5.B ADVANCE+ ABS Trapez is part of the Kalkhoff E Endeavour model. There are 46 e-bikes that carry this model name. Take a sneak peek at all Kalkhoff E Endeavour e-bikes models from 2023, by clicking here.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Wave 2023 is the most economical model, with a starting price of 3526$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Diamond 2023 on the other hand costs 6324$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5594$. Comparing the average cost of a Commuter e-bike to this one, you will see that ENDEAVOUR 5.B ADVANCE+ ABS Trapez price is 117.75% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the ENDEAVOUR 5.B ADVANCE+ ABS Trapez model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kalkhoff ENDEAVOUR 5.B ADVANCE+ ABS Trapez is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
