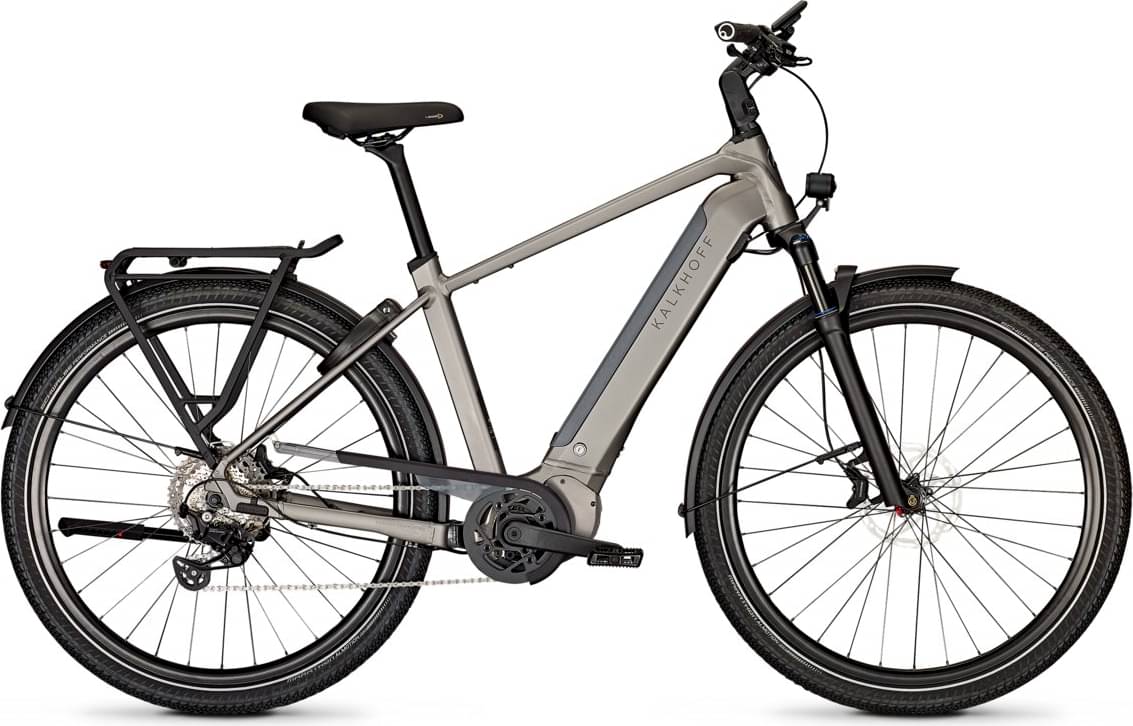

kalkhoff ENDEAVOUR 5.B ADVANCE+ Wave 2023
2023 E-bike
Estimate price |
5,486$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6 CX, Aluminium
Suspension Fork
Suntour Mobie34 Air, 15 mm thru axle
Rear Shock
No
Drivetrain
Rear Derailleur
Shimano Deore M5130
Shift Levers
Shimano Deore
Crank
aluminium
Bottom Bracket
No
Chain
Shimano CN-LG500
Pedals
Comfort, with anti slip protection and reflector
Wheels
Front Hub
Shimano Alivio MT400, 15x100 mm with QR
Rear Hub
Shimano Alivio MT400, 12x142 mm thru axle
Rims
Rodi Cyclone with eyelets
Tires
Schwalbe Marathon Almotion Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin
Seatpost
Aluminium, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.682 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 668 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 70 mm | 70 mm | 70 mm |
| Stack | 660 mm | 667 mm | 676 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1155 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
ENDEAVOUR 5.B ADVANCE+ Wave is a Kalkhoff E Endeavour model. There are 46 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Wave 2023 is the cheapest e-bike model and costs 3526$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Diamond 2023 is the most expensive one and costs 6324$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Kalkhoff released this model in 2023, its price was 4986$. In conclusion, this e-bike price is 94.08% more expensive than the price of the average Commuter e-bike.
ENDEAVOUR 5.B ADVANCE+ Wave components
Fork
The ENDEAVOUR 5.B ADVANCE+ Wave comes factory-installed with the Suntour MOBIE fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the ENDEAVOUR 5.B ADVANCE+ Wave model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
